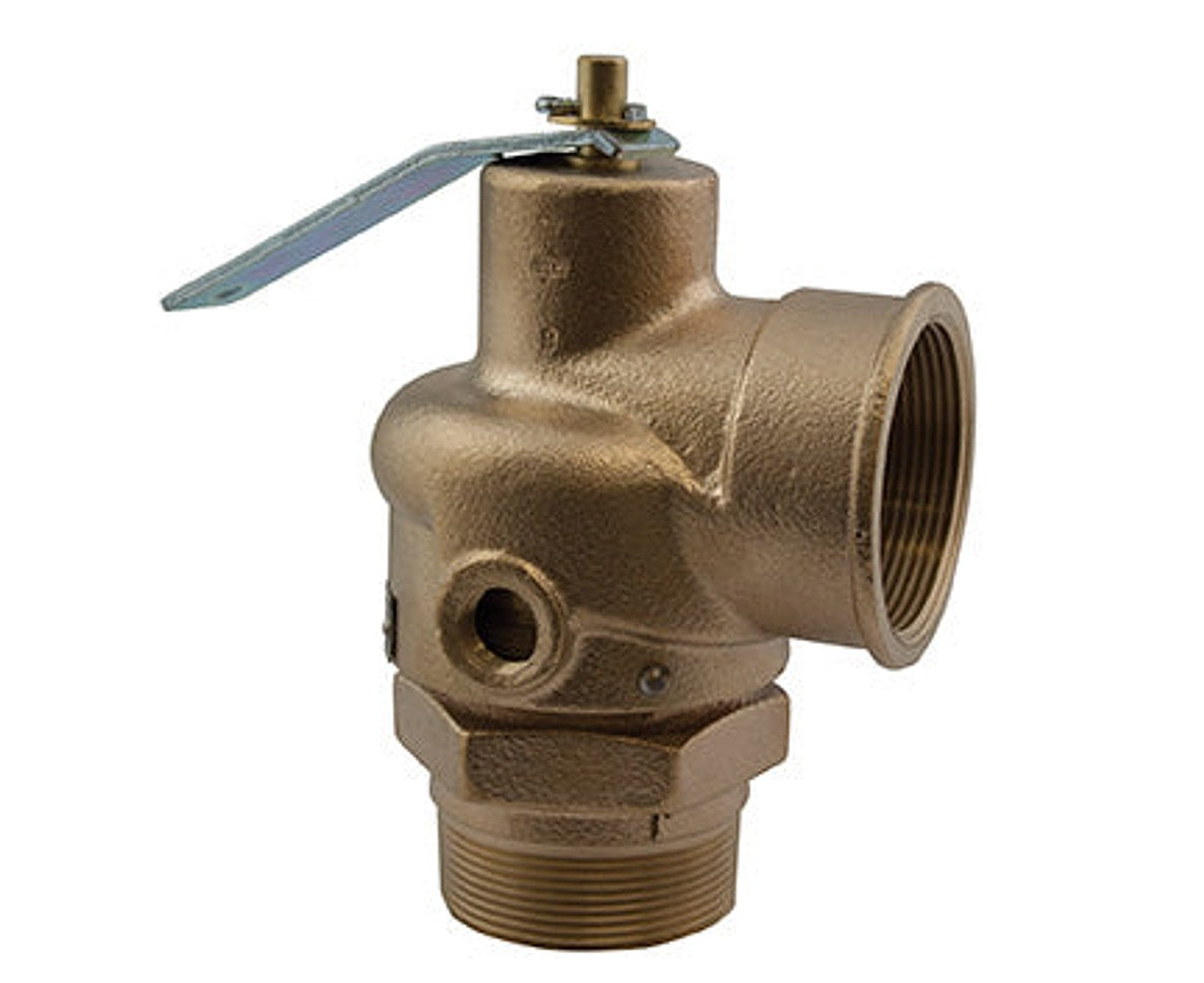

Conbraco 1220508 Steam Boiler Safety Valve

Conbraco 1220508 Steam Boiler Safety Valve is a high-quality, low-pressure relief valve designed to protect commercial and industrial boilers. The lever-handle valve features a 2 inch inlet and 2 inch outlet with end connections male thread x female thread, delivering dependable pressure relief at a setpoint of 15 PSIG.

Built for durability, the bronze body (ASTM B584), stainless steel spring, and brass stem (ASTM B16) work with a PTFE seat and EPDM seal to ensure reliable sealing. The PTFE-coated O-ring seat seal minimizes sticking, while a rust-proofed spring extends service life. The valve's top-guided, high-capacity design includes a 3/8 inch threaded side tapping for a drain, simplifying maintenance.

Ideal for commercial and industrial heating boilers, this valve meets essential standards and reliability expectations. It is ASME and ISO 9001 certified, with CRN 0G8547.5C, and offers a flow capacity of up to 2500 PPH. The handle assembly is plated steel for durable operation.

• Primary type: Lever Handle, Low Pressure
• Inlet/Outlet: 2" connections; end connections male thread x female thread
• Materials: Bronze body (ASTM B584), stainless steel spring, brass stem (ASTM B16)
• Seat/Seals: PTFE seat, EPDM seal, PTFE-coated O-Ring
• Set pressure: 15 PSIG
• Capacity: Up to 2500 PPH
• Drain: 3/8" threaded side tapping
• Standards: ASME, ISO 9001, CRN 0G8547.5C
