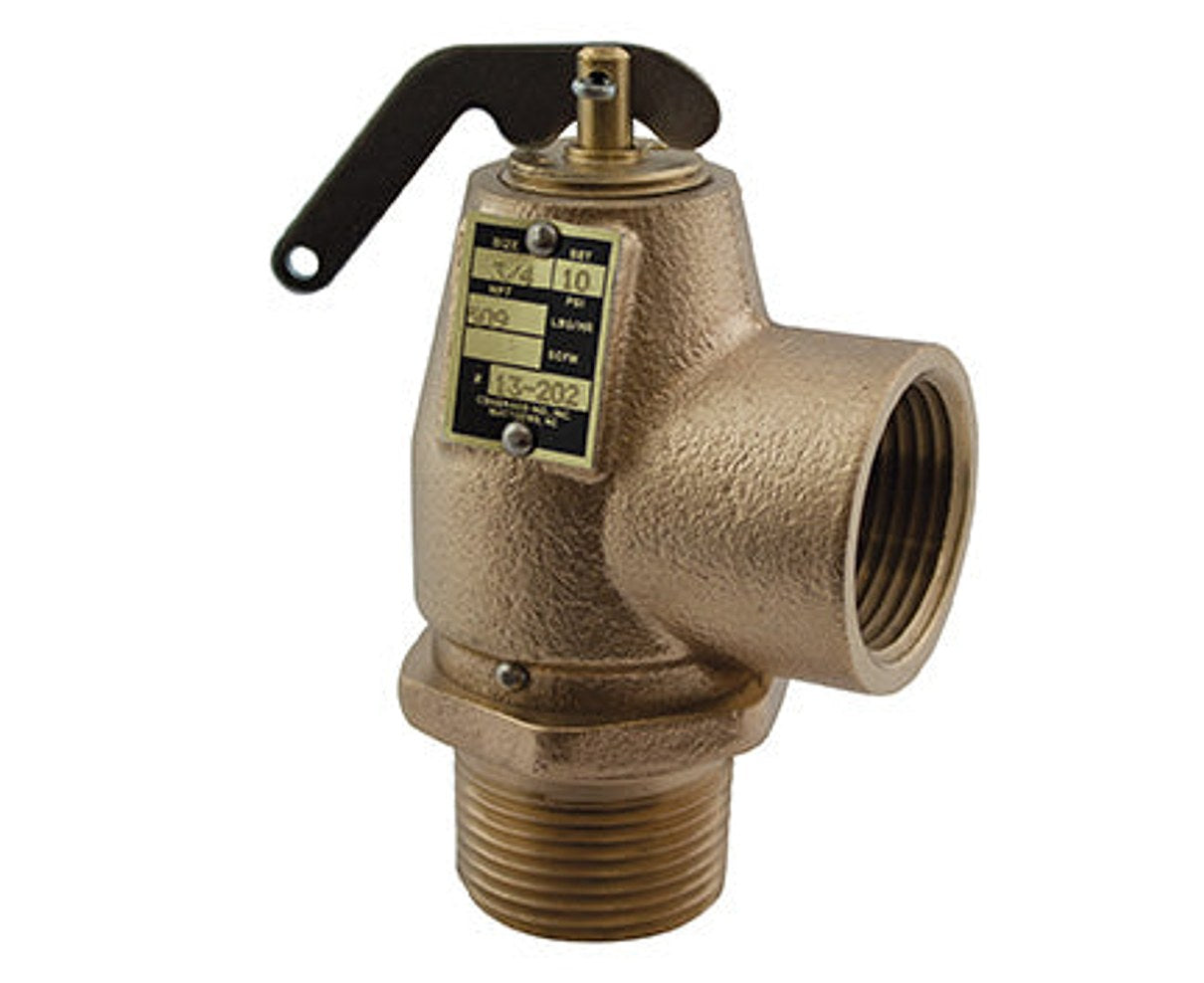

Conbraco 13202B15 Steam Boiler Safety Valve

The Conbraco 13202B15 Steam Boiler Safety Valve is a reliable safeguard for low-pressure steam heating and supply boilers. With a bronze body and stainless steel spring, this lever-handle valve delivers precise relief at a set pressure of 15 PSIG and a 250°F temperature rating. The PTFE-faced disc and EPDM seal ensure a positive, leak-tight seal and long service life in demanding boiler rooms.

• End connections: 1" male thread (inlet) x 1" female thread (outlet)
• Body: ASTM B584 bronze; Spring: stainless steel
• Seat: flat seat; Disc: PTFE-coated for positive seal; Seal: EPDM
• Set pressure: 15 PSIG; Temperature rating: 250°F
• Positive drainage of condensate from seat area; corrosion-resistant construction
• Applications: low-pressure steam heating and supply boilers
• Standards/certifications: ASME, ISO 9001; CRN 0G8547.5C; HV; NB
• Capacity: 643 pounds per hour
