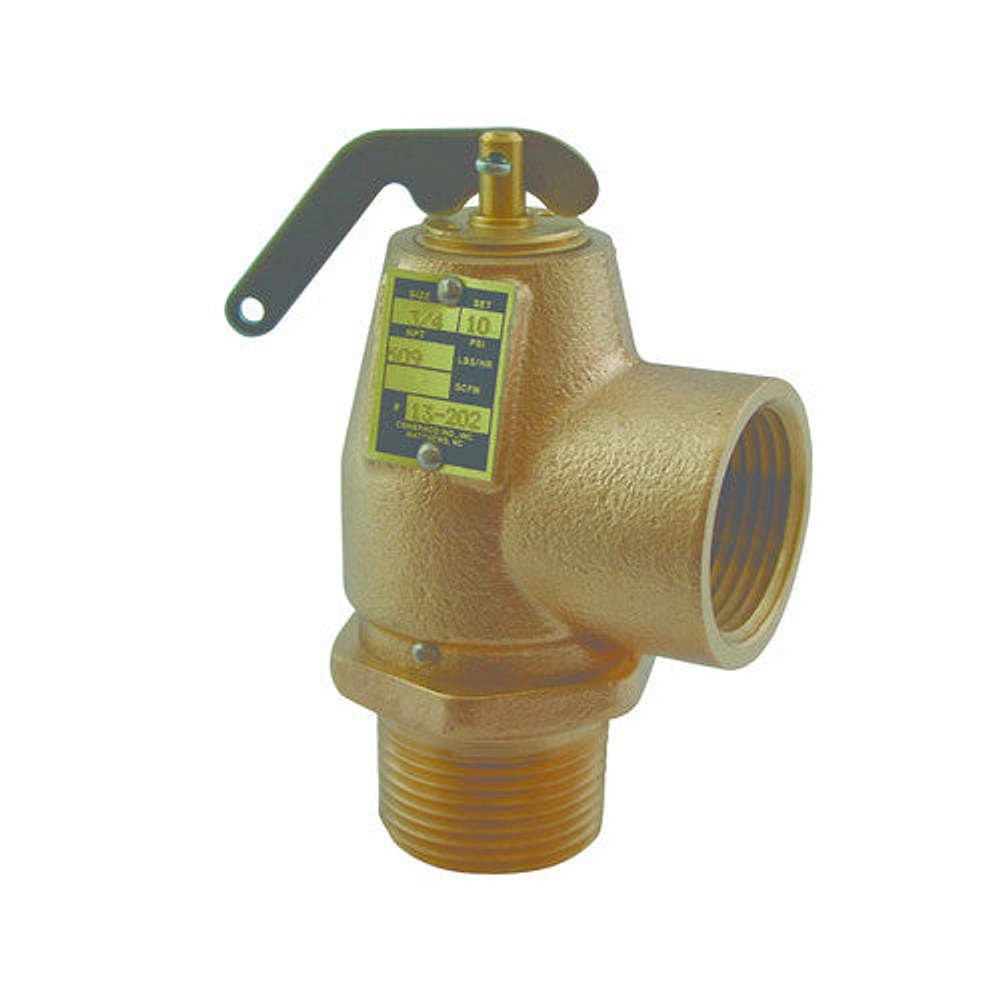

Conbraco 13214B15 Steam Boiler Safety Valve

Steam Boiler Safety Valve from Conbraco 13214B15 delivers reliable protection for low-pressure steam systems. This low-pressure relief valve features a bronze body, stainless steel spring, and a PTFE faced disc for a positive seal and long service life.

Designed for easy integration, the valve uses a 1-1/2 inch inlet and 2 inch outlet with end connections male thread x female thread. The 15 PSIG set pressure and 250°F rating suit low-pressure steam heating and supply boiler installations. Built with a bronze body, stainless steel spring, PTFE faced disc, and EPDM seal, it provides corrosion resistant construction and a positive seal. It is ASME and ISO 9001 certified and carries CRN 0G8547.5C.

• Inclusions/Features: Flat seat, PTFE faced disc for positive seal, condensate drainage from seat area, corrosion resistant construction
• Construction: ASTM B584 bronze body; stainless steel spring; EPDM seal; PTFE-coated disc
• Applications: Low pressure steam heating and supply boilers
• Capacity: 1900 pounds per hour
• Standards: ASME, ISO 9001, CRN 0G8547.5C, HV, NB
