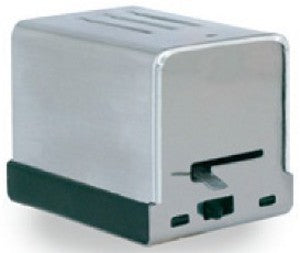

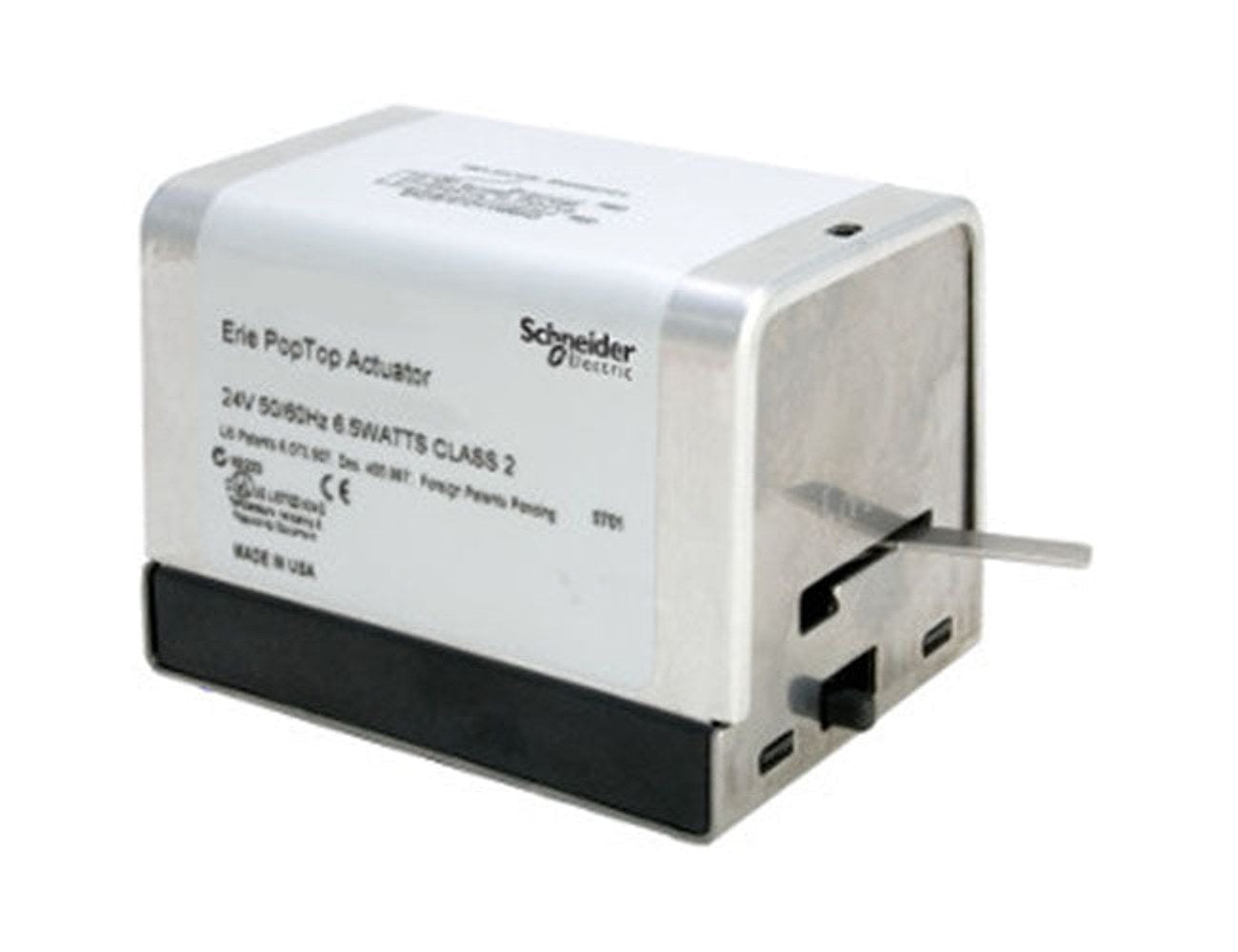

Erie Controls AG13U020 Valve Actuator

The Erie Controls AG13U020 Valve Actuator is a reliable ON/OFF electric actuator designed for general close-off in heating and cooling systems. This 2-position rotary valve actuator features a spring-return mechanism for fail-safe operation, making it a dependable choice for zone valves and climate control applications.

Operating from 230V AC with 50/60 Hz, it delivers 6.5 W of power while maintaining a compact profile. The rugged NEMA 1 enclosure provides indoor protection, and the unit uses an 18 inch wire lead for easy wiring. The durable construction combines a stainless steel base plate with an aluminum cover to withstand demanding environments.

• Type: ON/OFF, 2-position, rotary with spring return
• Voltage: 230 VAC, 50/60 Hz
• Power: 6.5 W
• Enclosure: NEMA 1
• Connection: 18 inch wire lead
• Operating temperature: 32 to 200 Deg F
• Application: Heating/Cooling System, Zone Valve
• Motor type: Hysteresis Synchronous
• Electrical position: NC
• Materials: Stainless Steel (Base Plate), Aluminum (Cover)
• Approvals: CUL, CE, C-Tick

Designed for reliable operation in HVAC applications, this actuator ensures precise, energy-efficient control of valve positions with robust electrical suitability and market approvals.
