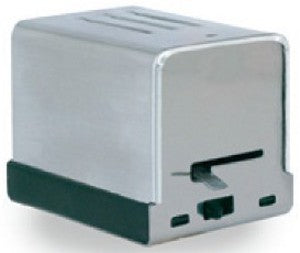

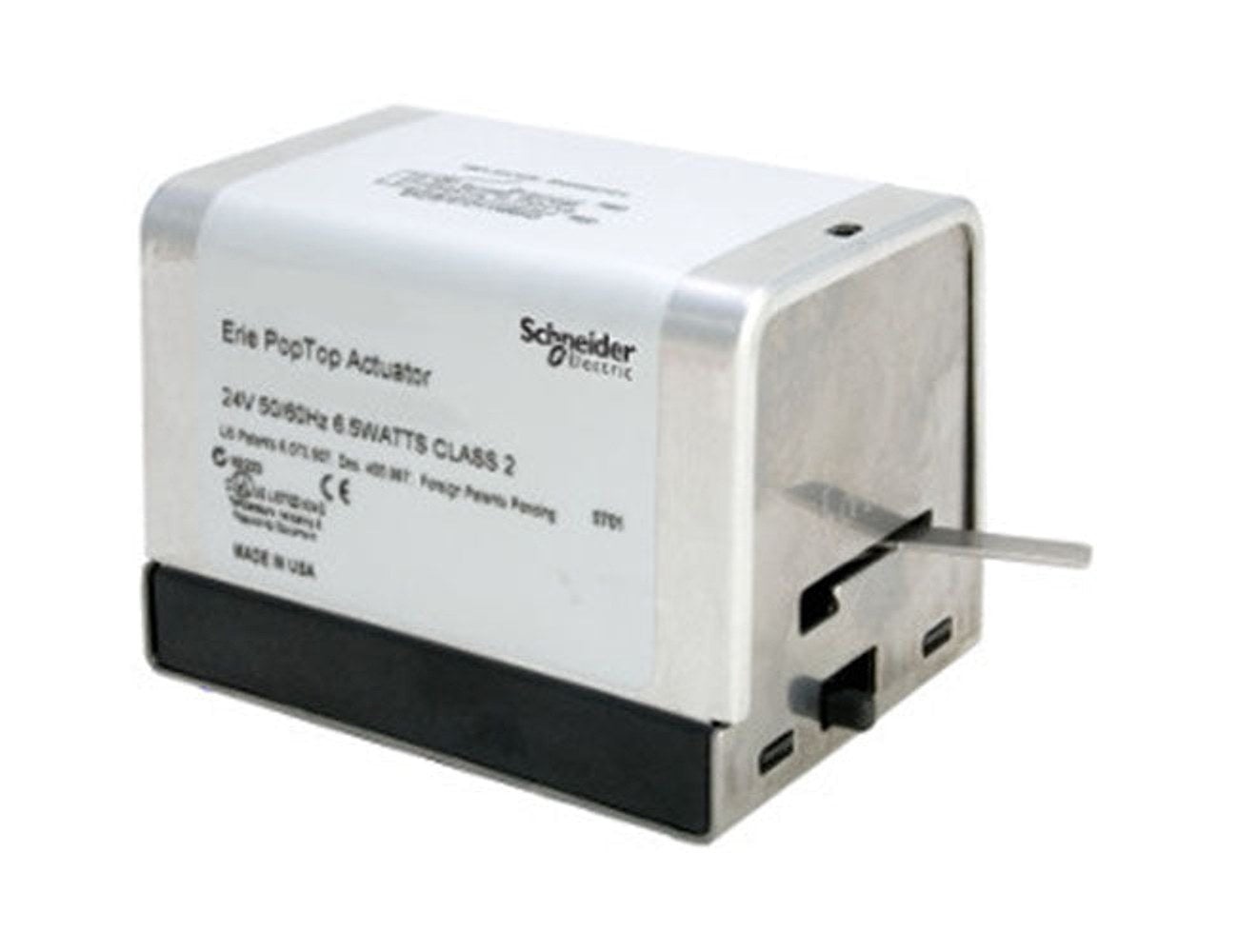

Erie Controls AG23A000 Valve Actuator

Valve Actuator, Erie Controls AG23A000, delivers reliable ON/OFF control for zone valves in heating and cooling systems. This electric rotary actuator features a spring-return operation for safe, quick positioning.

Designed for 24 Volt AC supply, it operates at 50/60 Hz with a power rating of 6.5 watts. The rugged NEMA 1 enclosure protects internal components in general close-off applications. The actuator uses a 2-position configuration and provides an electrical position NO for straightforward valve integration.

Constructed with a stainless steel base plate and an aluminum cover, it withstands typical HVAC environments. The actuator accepts a 6-inch wire lead for simple wiring, and it operates across a wide temperature range from 32 to 200 degrees Fahrenheit.

• ON/OFF electric rotary operation with spring return
• 24 VAC, 50/60 Hz, 6.5 W power
• NEMA 1 enclosure for general close-off protection
• 2-position actuator with electrical NO position
• Stainless steel base plate and aluminum cover
• 6 inch wire lead connection
• Applications: heating/cooling system, zone valve
