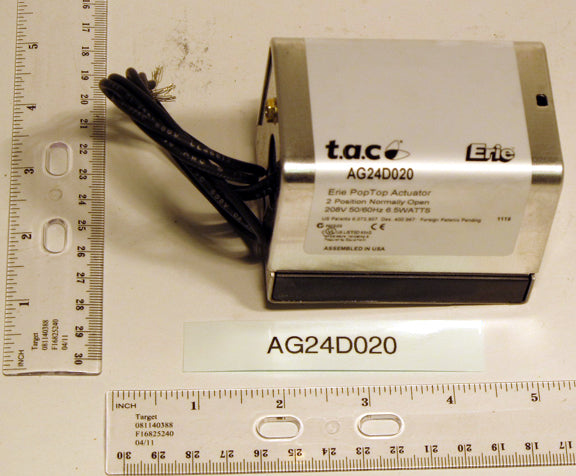

Erie Controls AG24D020 Valve Actuator

Erie Controls AG24D020 Valve Actuator delivers reliable ON/OFF electric actuation for heating and cooling systems. This rotary, 2-position actuator uses spring-return operation for dependable, fail-safe control of zone valves with general close-off.

Designed for 208 VAC operation, this ON/OFF electric actuator supports 50/60 Hz and draws only 6.5 watts. The enclosure is NEMA 1, protecting the unit in indoor HVAC environments, and the 18-inch wire lead simplifies connections. With a temperature range of 32 to 250°F (fluid), it stands up to typical heating/cooling service.

Built for durability, the actuator uses a stainless steel base plate and an aluminum cover. It provides an electrical NO position and is ideal for zone valve applications requiring reliable, compact control.

• ON/OFF, 2-position rotary operation with spring return
• Voltage: 208 VAC; Frequency: 50/60 Hz
• Power: 6.5 W; Enclosure: NEMA 1
• Supply: 18-in wire lead
• Applications: heating/cooling systems, zone valves
• Electrical position: NO
• Materials: stainless steel base plate, aluminum cover
• Operating temp: 32–250°F
