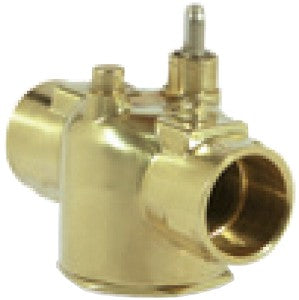

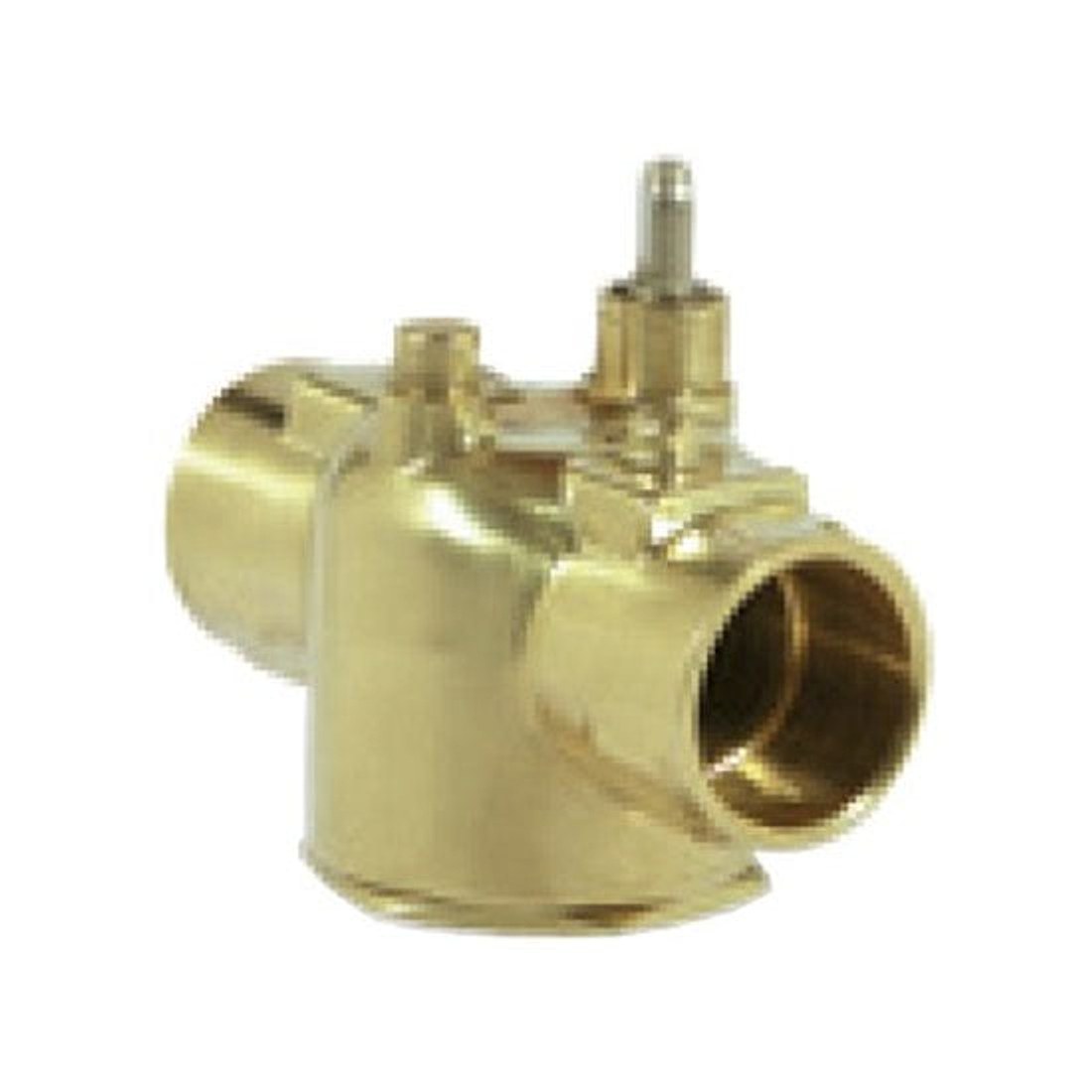

Erie Controls VS2212 Zone Valve Body Assembly

Erie Controls VS2212 Zone Valve Body Assembly is a versatile 2-Way valve designed for heating and cooling systems. With a nominal size of 1/2 inch and soldered x soldered end connections, it provides reliable, leak-tight performance across a range of applications.

The spring return actuator delivers a fail-safe operation, while the valve position is normally closed to conserve energy when idle. It handles fluids from water and glycol to low‑pressure steam, offering a wide temperature range from 32 to 250 Deg F and a close-off pressure of 60 psi (static up to 300 psi in static conditions). The flow capacity is 2.5 Cv, ensuring steady control in moderate to high-demand zones.

• Type: 2-Way Zone Valve
• Nominal Size: 1/2 Inch
• End Connections: Soldered x Soldered
• Actuation: Spring Return with Manual Override Lever
• Valve Position: Normally Closed
• Media: Water, Glycol, and Low-Pressure Steam
• Materials: Nickel Plated Stem, Brass Seat, Buna N Paddle
• Ambient Temperature/Humidity: 169 Deg F; 5–95% Non-Condensing
