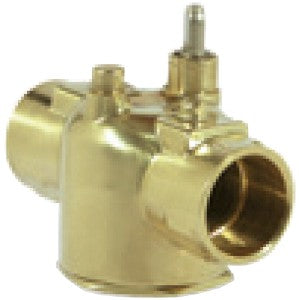

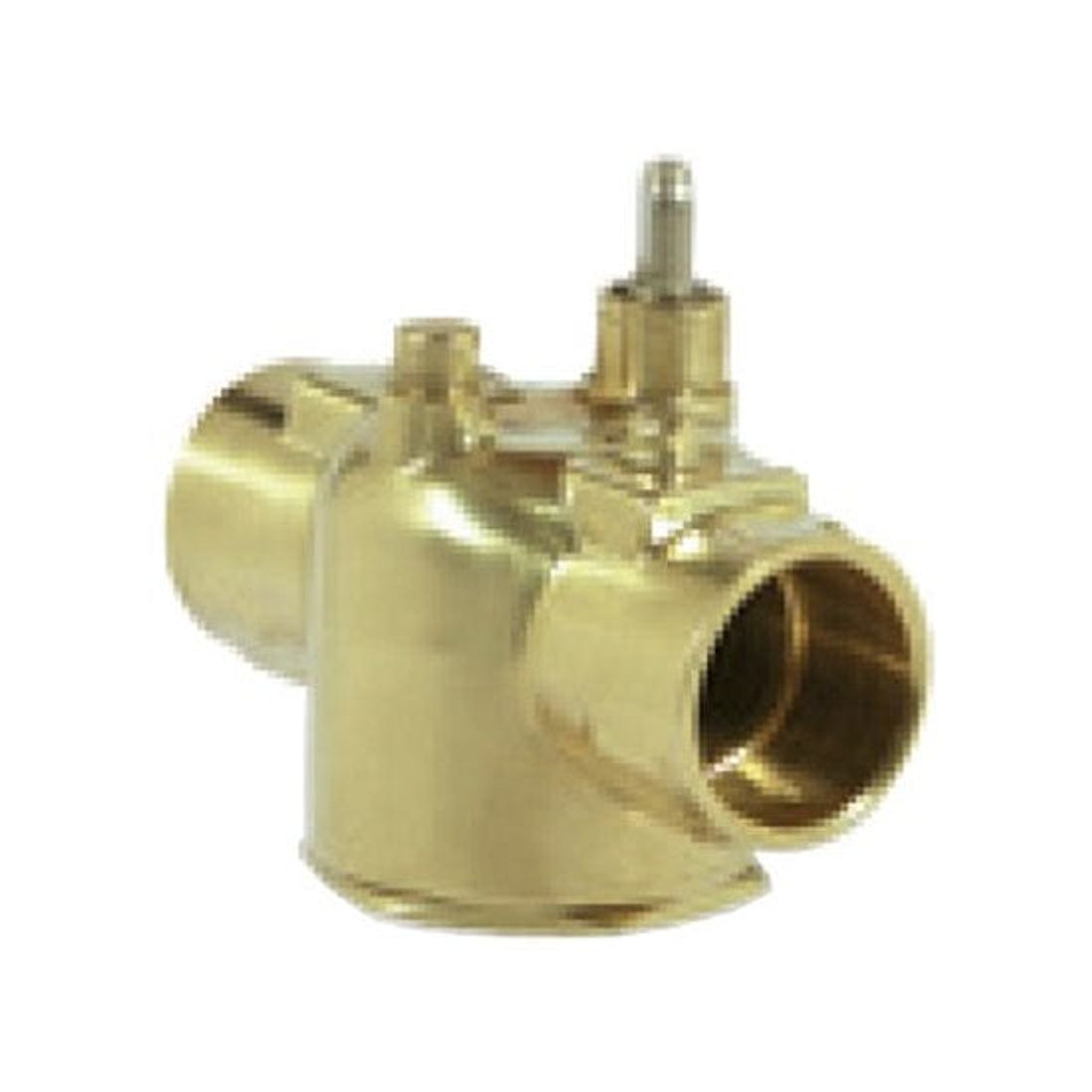

Erie Controls VS2213 Zone Valve Body Assembly

The Erie Controls VS2213 Zone Valve Body Assembly is a robust 2-Way solution for heating and cooling applications. This 1/2 inch nominal valve features soldered x soldered end connections and a spring-return actuator that provides a fail-safe, normally closed operation. It is designed to handle water, glycol, and low-pressure steam, with a temperature rating of 32 to 250°F and close-off up to 60 psi (static 300 psi; steam 15 psi). Materials include a nickel-plated stem, brass seat, and Buna N paddle for reliable performance in challenging environments.

• 2-Way, normally closed valve for precise flow control
• 1/2" nominal size with end connections soldered x soldered
• Spring-return actuation with manual override lever for fail-safe operation
• Flow capacity: 3.5 Cv
• Materials: nickel-plated stem, brass seat, Buna N paddle
• Media: water, glycol, and low-pressure steam
• Ambient temperature up to 169°F; humidity 5–95% non-condensing
• Temperature range: 32–250°F; close-off 60 psi, static 300 psi, steam 15 psi
• Application: heating and cooling systems

Designed for long life with a hysteresis synchronous motor, this valve provides dependable HVAC control and easy maintenance in demanding environments.
