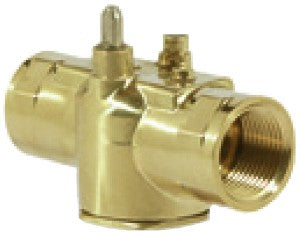

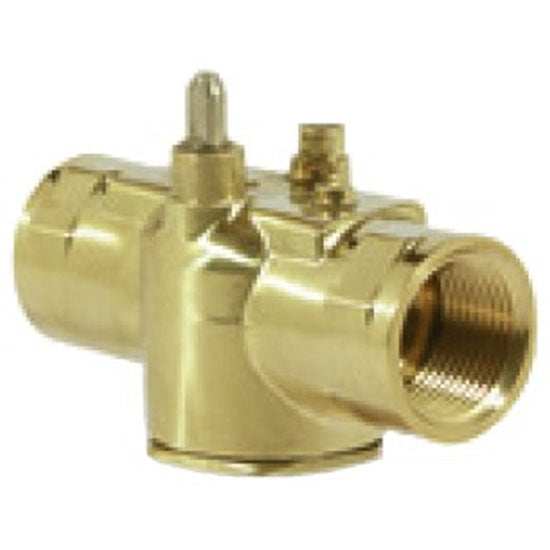

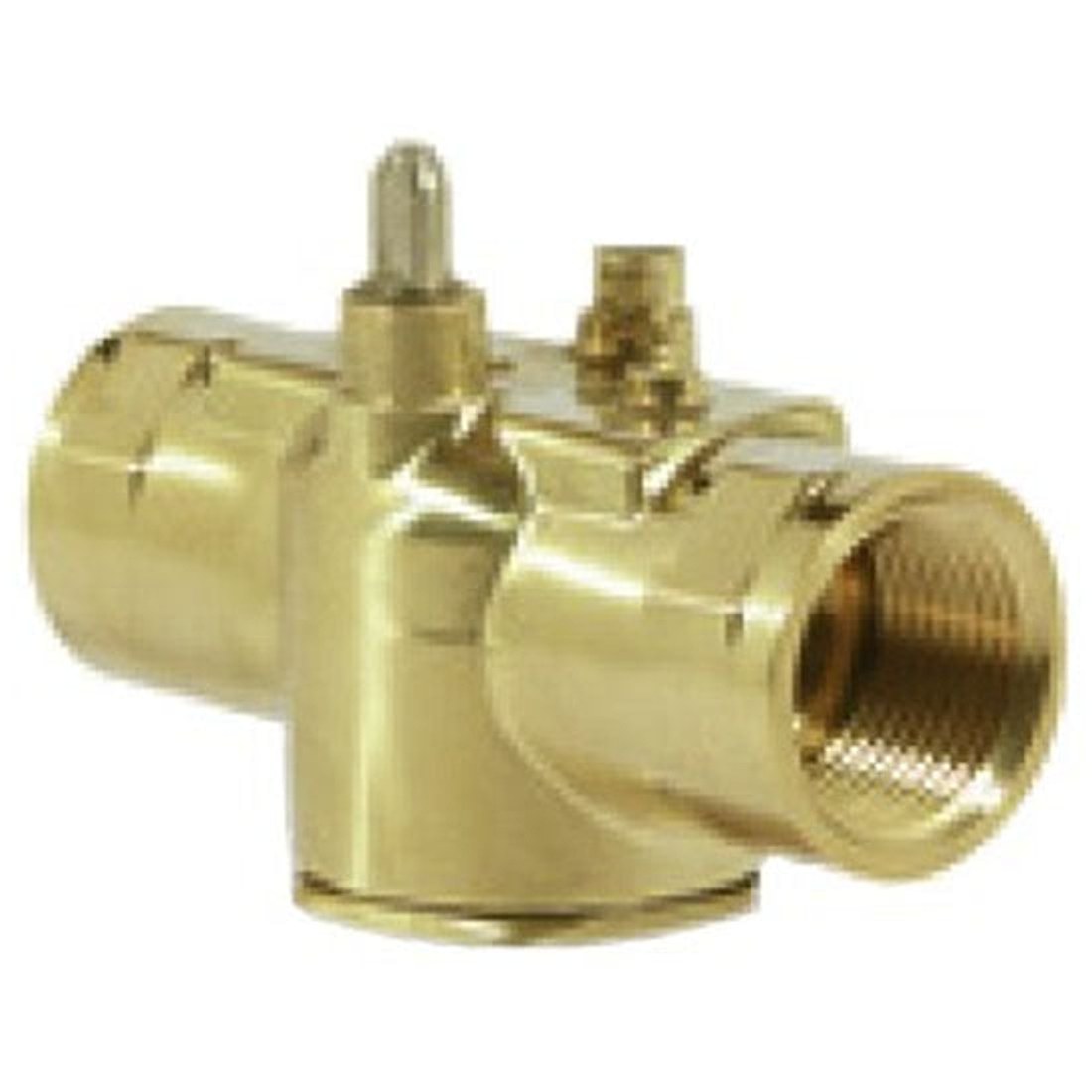

Erie Controls VS2222 Zone Valve Body Assembly

Erie Controls VS2222 Zone Valve Body Assembly delivers dependable 2-way zoning control for heating and cooling systems. This 1/2 inch nominal valve features threaded end connections and a spring-return actuator for reliable fail-safe operation, with the valve position Normally Closed to protect against unwanted flow.

Engineered for versatility, it handles water, glycol, and low-pressure steam across a broad temperature range (32–250 °F) and offers solid performance with 60 psi close-off, 300 psi static, and 15 psi steam ratings. The assembly uses a nickel-plated stem, brass seat, and Buna N paddle for durable service.

Designed for heating and cooling applications, this valve provides long life thanks to a hysteresis synchronous motor and a manual override lever for easy field adjustments. Compact and reliable, the VS2222 integrates smoothly into systems requiring precise flow control and fail-safe operation.

• Type: 2‑Way
• Nominal Size: 1/2 in
• End Connections: Threaded x Threaded
• Actuation: Spring Return
• Valve Position: Normally Closed
• Media: Water, Glycol, Low Pressure Steam
• Temperature Rating: 32–250 °F
• Pressure Ratings: Close-Off 60 PSI; Static 300 PSI; Steam 15 PSI
• Flow Capacity: 3 Cv
• Materials: Nickel Plated Stem; Brass Seat; Buna N Paddle
• Inclusions/Features: Hysteresis Synchronous Motor; Manual Override Lever
• Ambient Temperature: 169 °F
• Humidity: 5–95% non-condensing
