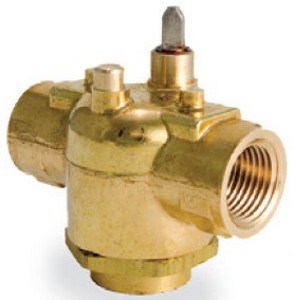

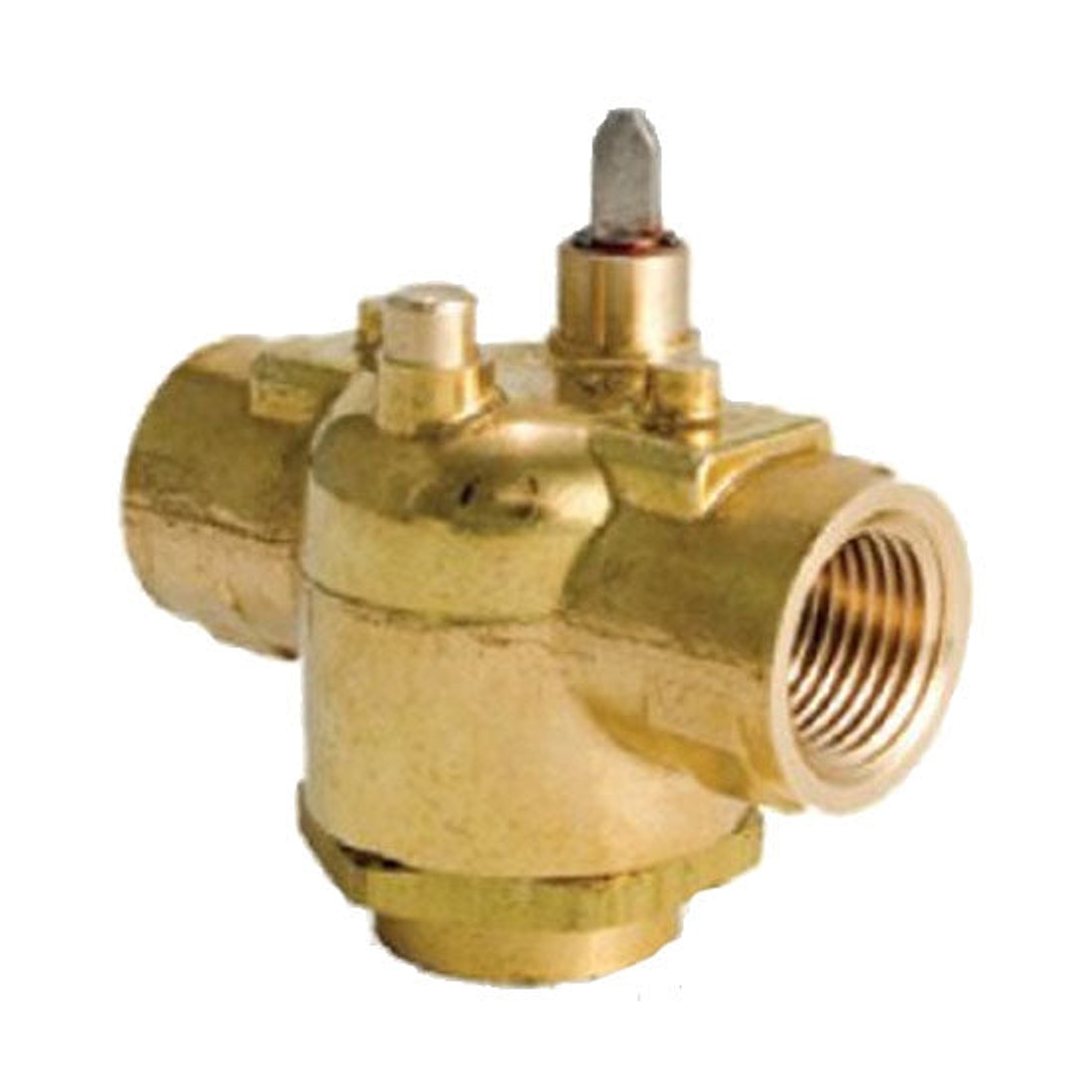

Erie Controls VS3325 Zone Valve Body Assembly

The VS3325 Zone Valve Body Assembly is a robust 3-Way valve from Erie Controls designed for precise control in heating and cooling systems. It features a 3/4 inch nominal size with threaded x threaded end connections for easy installation. The 2-Position, Spring Return actuator provides reliable, fail-safe operation, and the valve is normally closed to protect your system when power is removed. This unit supports water, glycol, and low pressure steam media, delivering dependable flow control across HVAC applications.

• Type and size: 3-Way valve, 3/4" nominal, threaded x threaded connections
• Actuation: 2-Position, Spring Return; normally closed
• Flow capacity: 5 Cv; suitable for water, glycol, and low-pressure steam
• Ratings: Temperature 32–250°F; Close-Off 40 psi; Static 300 psi; Steam 15 psi
• Materials: Nickel-plated stem; Brass seat; Buna N paddle
• Inclusions: Hysteresis synchronous motor; Manual override lever
• Environment: Ambient up to 169°F; 5–95% non-condensing humidity

Designed for HVAC projects requiring reliable zone control, the VS3325 combines durable construction with long service life and easy maintenance.
