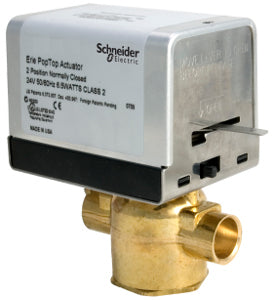

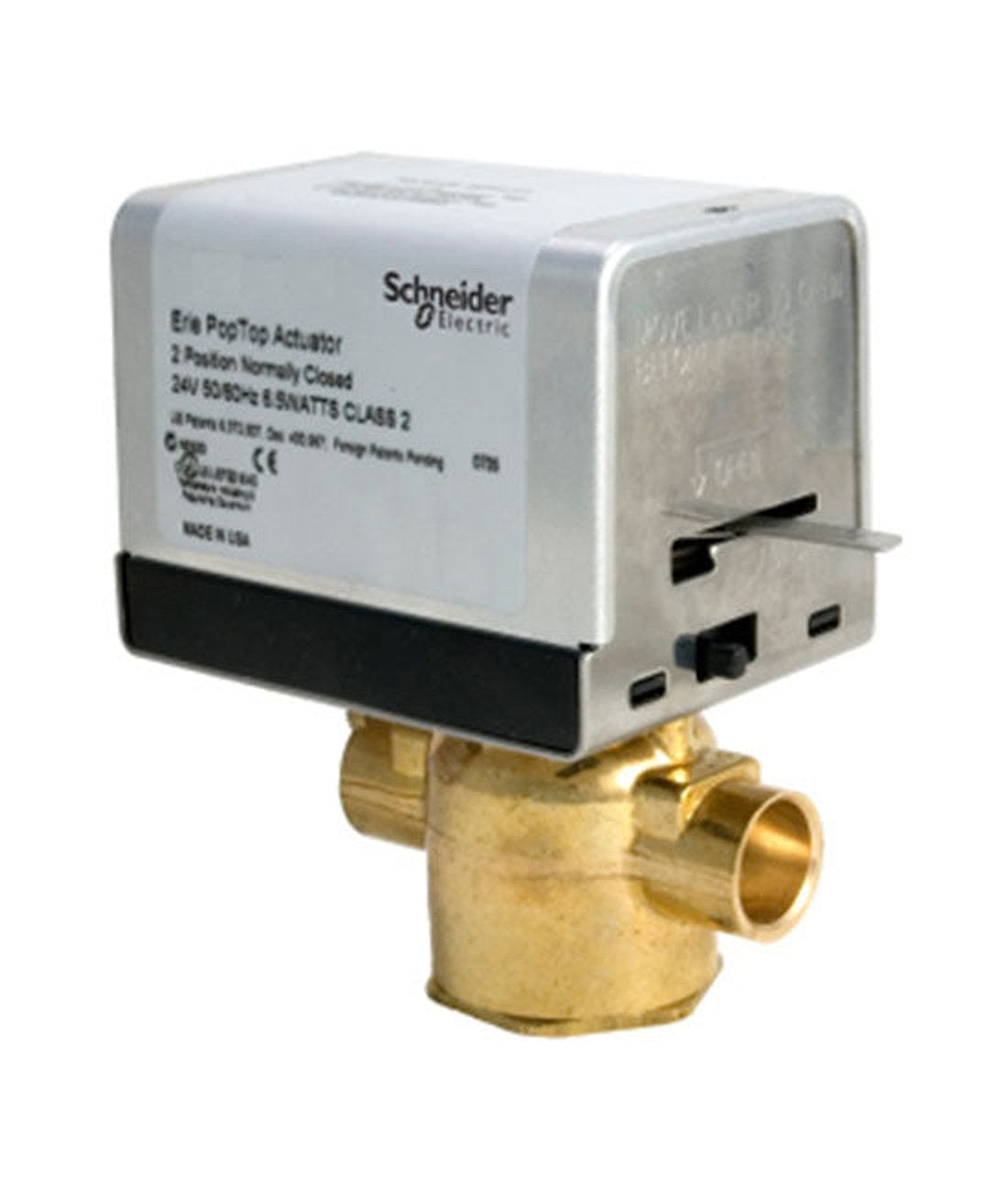

Erie Controls VT2212G13A020 Zone Valve Body Assembly

Erie Controls VT2212G13A020 Zone Valve Body Assembly is a precision 2-Way zone valve designed for reliable heating and cooling control. The nominal 1/2 inch valve features soldered x soldered end connections, making it an easy fit for hot water, chilled water, and glycol systems.

Powered by 24V AC at 50/60 Hz, this valve uses a hysteresis synchronous motor for long life and smooth operation. It offers a fail-safe, spring-return action in the normally closed position, with full open-to-close timing of 25 seconds (60 Hz), 30 seconds (50 Hz), or 9 seconds with spring return.

• 2-Way zone valve with normally closed operation for fail-safe control
• Nominal size 1/2 inch with soldered x soldered end connections
• 24V AC input, 18 inch lead, suitable for standard HVAC wiring
• Forged brass body with nickel-plated brass stem and Buna N paddle
• Media compatibility: hot water, chilled water, glycol
• Temperature range 32–200°F and close-off pressure 60 psi (static 300 psi)
• ANSI Class IV certification and manual override lever for service

Applications include precise heating and cooling control in commercial and residential HVAC systems.
