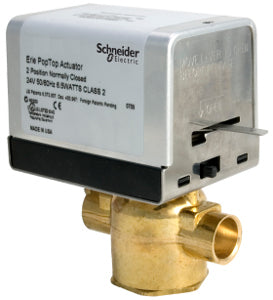

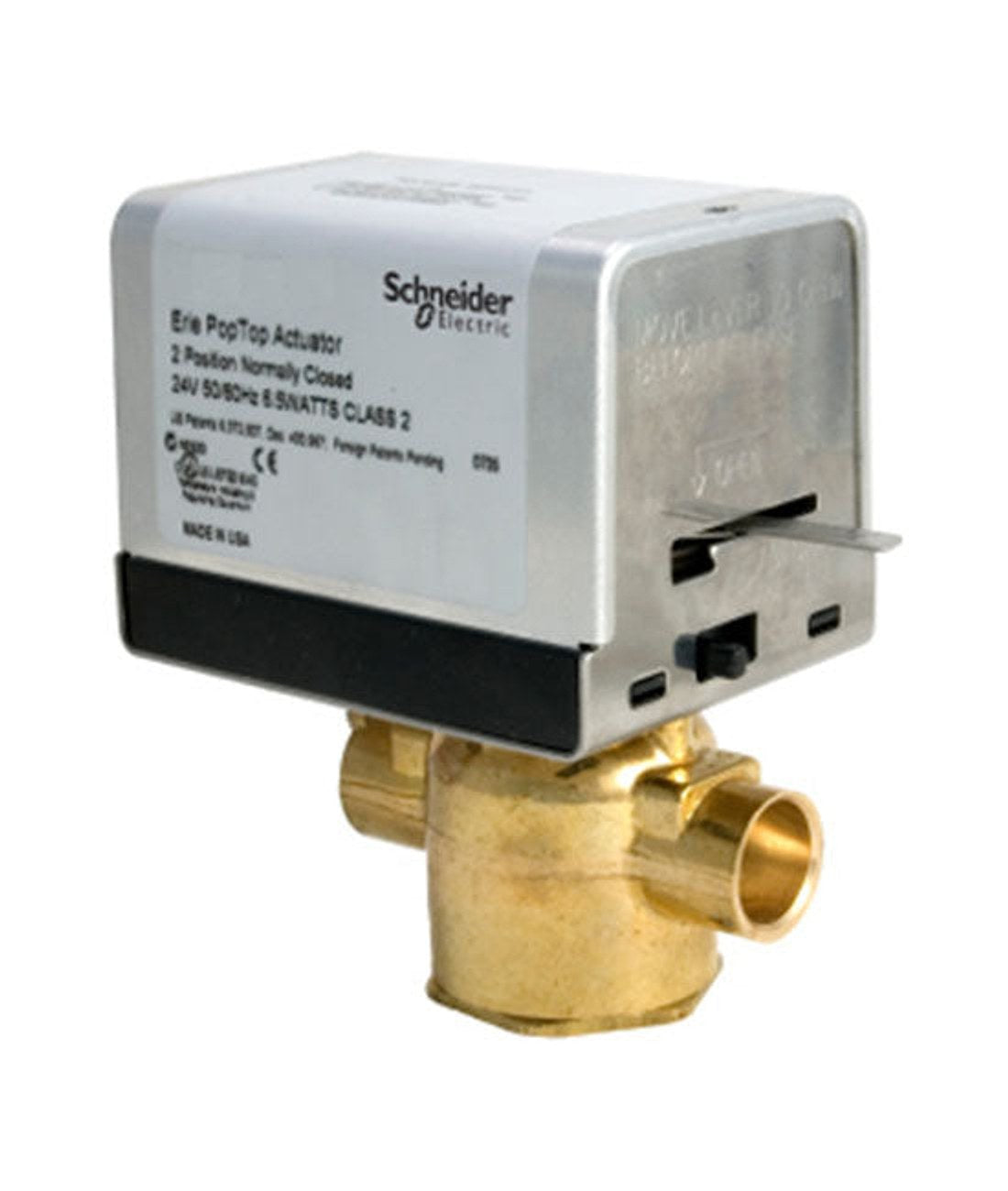

Erie Controls VT2212G13B020 Zone Valve Body Assembly

Erie Controls VT2212G13B020 Zone Valve Body Assembly

$104.97 USD
$104.97 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left

42465

View full details

The Erie Controls VT2212G13B020 Zone Valve Body Assembly delivers precise hydronic flow control for heating systems. This 120V, 1/2" sweat connection, 2-way normally closed (N.C.) valve provides a 2.5 CV flow rating with no auxiliary switch for simple, reliable operation.

Designed for HVAC zoning and boiler circuits, this zone valve body fits standard installations and supports efficient temperature control in residential or light commercial applications. Its compact design helps retrofit into tight spaces, making it suitable for both new installations and replacements in existing systems.

  • 120V operation for integration with common control panels
  • 1/2" sweat connections for easy sweating installation
  • 2-way flow with normally closed (N.C.) configuration
  • 2.5 CV flow rating to handle typical zone loads
  • No auxiliary switch required

Specifications

Type2-Way
Pressure Rating60 PSI (Close-Off), 300 PSI (Static)
Temperature Rating32 to 200 Deg F (Fluid)
Input Supply110/120 Volt AC at 60/50 Hertz
ApplicationHeating and Cooling
Body MaterialForged Brass
End ConnectionSoldered x Soldered
StandardsANSI Class IV
Mounting TypeHorizontal/Vertical
IncludesHysteresis Synchronous Motor for Long Life, Spring Return Operation Provides a Fail-Safe, Manual Override Lever
MediaHot/Chilled Water, Glycol
Actuation Type2-Position, Spring Return, On/Off (General Close-Off)
Valve PositionNormally Closed
Valve Timing25 Second for 60 Hertz/30 Second for 50 Hertz/9 Second for Spring Return (Full Open to Full Close)
