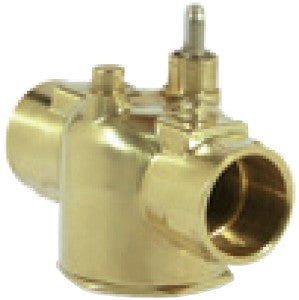

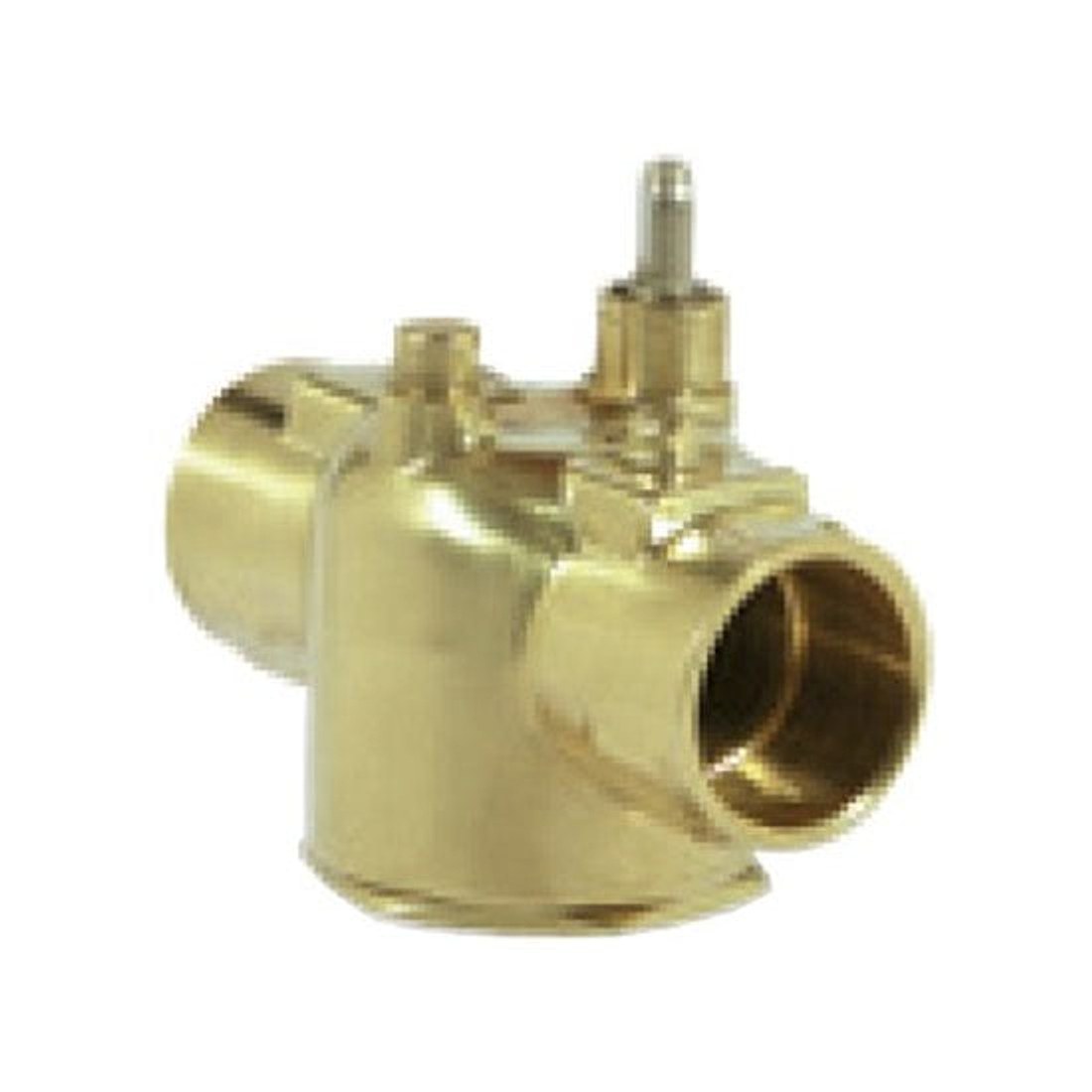

Erie Controls VT2313 Zone Valve Body

The VT2313 Zone Valve Body from Erie Controls is a 2-Way zone valve body with a 3/4 inch nominal size and soldered end connections, designed for reliable heating and cooling control.

Built from forged brass with a nickel-plated stem, brass seat, and Buna N paddle, this valve delivers robust durability and precise flow (3.5 Cv). It handles hot and chilled water with glycol and thrives in challenging environments, rated for 32 to 200 deg F fluid temperatures and 5 to 95 percent non-condensing humidity.

Actuation is 2-Position with spring return, normally closed, ensuring fail-safe operation. Valve timing is optimized for different power frequencies: 25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring-return full open to full close. The unit supports horizontal or vertical mounting for flexible installation in your heating and cooling system.

• 2-Way, normally closed with end connections soldered x soldered
• Hysteresis synchronous motor for long life
• Spring return provides fail-safe operation
• Manual override lever for manual control and service
• Flow capacity 3.5 Cv and robust pressure ratings for reliability
