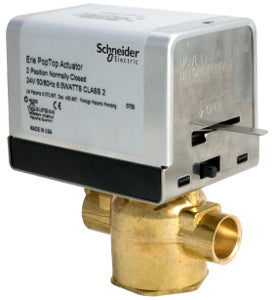

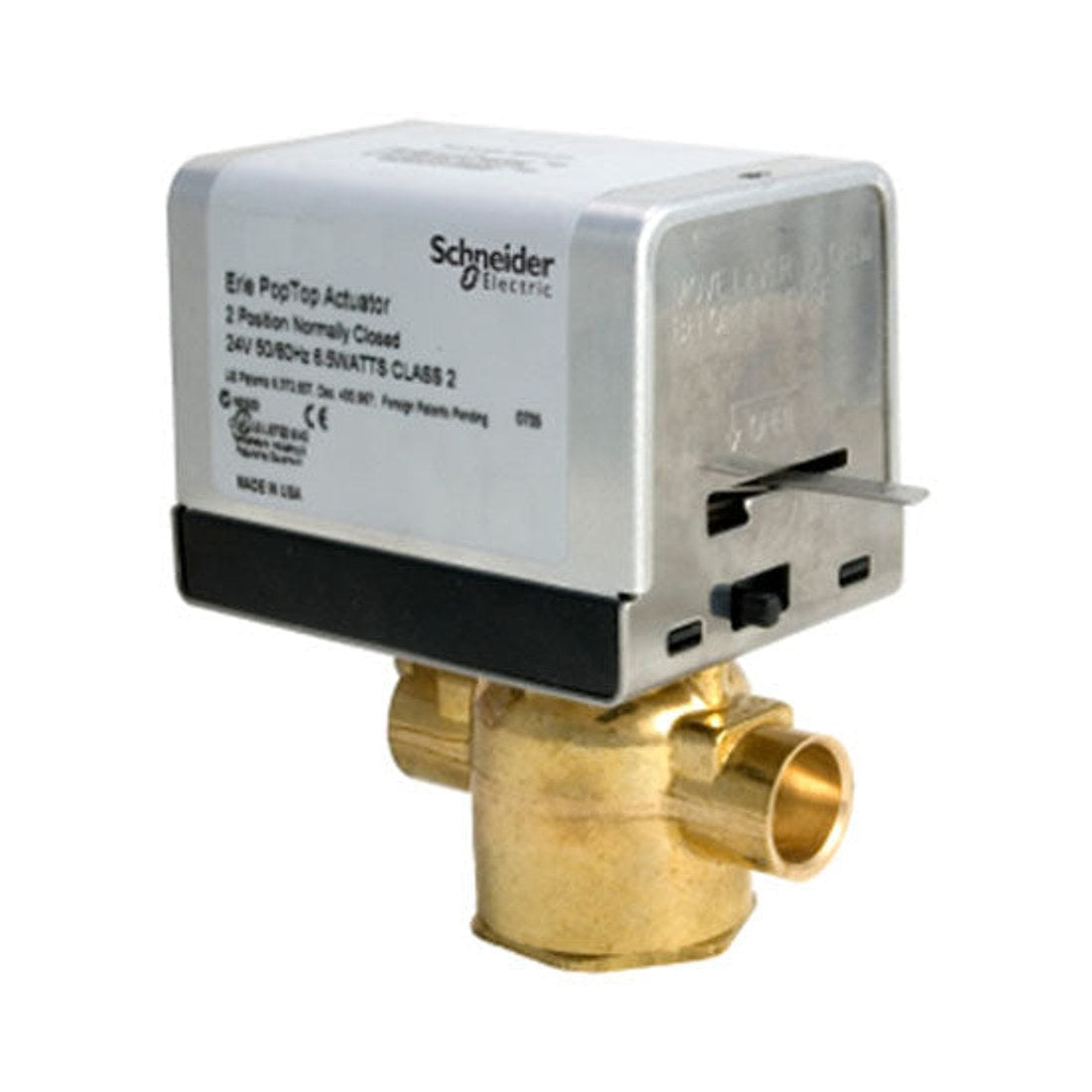

Erie Controls VT2313G13A020 Zone Valve Body Assembly

The Erie Controls VT2313G13A020 Zone Valve Body Assembly is a 2-way valve engineered for reliable flow control in heating and cooling systems. With a 3/4 inch nominal size and soldered end connections, it offers compact installation and robust performance. This assembly uses a 2-position, spring-return actuator for general close-off and a normally closed valve position to provide safe, fail-safe operation in power loss. It runs on 24V AC (50/60 Hz) and handles hot or chilled water, including glycol mixtures.

Built for durability, the valve features a forged brass body and nickel-plated brass stem with a brass seat and Buna N paddle. Key timing and pressure specs deliver precise control: 25 seconds full travel at 60 Hz (30 seconds at 50 Hz) and 9 seconds for spring-return full open to full close, 40 psi close-off, and 300 psi static. The unit is rated for temperatures from 32 to 200°F and supports a wide ambient range for HVAC environments.

• Hysteresis Synchronous Motor for long life and reliable actuation
• Spring Return Operation provides a fail-safe when power is interrupted
• Manual Override Lever for easy on-site adjustments
• 2-Way Valve with soldered x soldered end connections
• Flow Capacity 3.5 Cv; ANSI Class IV standard compliance
