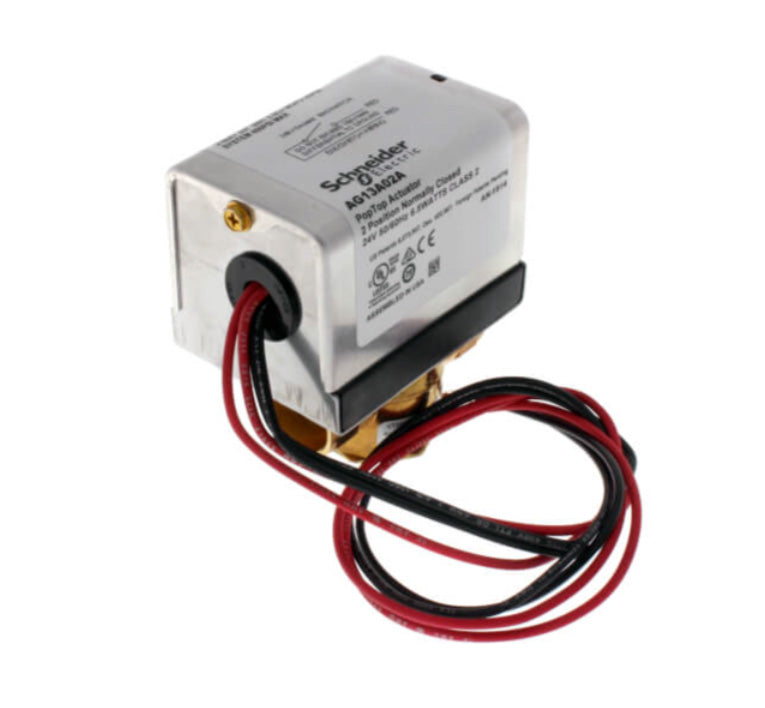

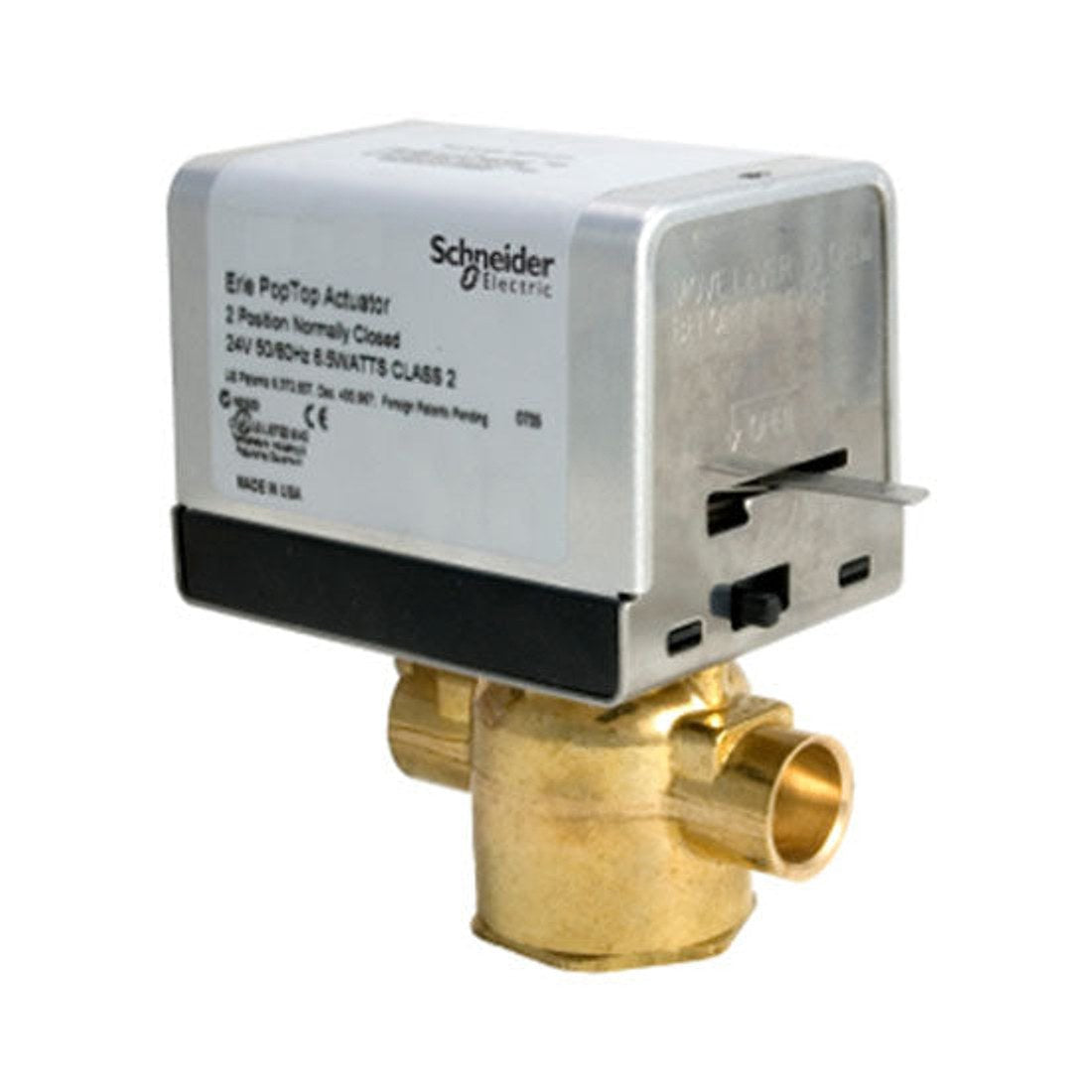

Erie Controls VT2313G13A02A Zone Valve Body Assembly

The Zone Valve Body Assembly VT2313G13A02A is a rugged 2-Way valve designed for precise heating and cooling control. With a 3/4 inch nominal size and soldered end connections, it uses a 2-Position, spring-return actuator for reliable general close-off. The valve is normally closed and built around a forged brass body for long-lasting durability in HVAC systems. Its flow capacity of 3.5 Cv supports balanced circulating water with responsive shut-off, ideal for mixed hot/chilled water and glycol applications.

• Type: 2-Way Zone Valve Body Assembly
• Nominal Size: 3/4 Inch • End Connections: Soldered x Soldered
• Actuation: 2-Position, Spring Return • On/Off (General Close-Off)
• Position: Normally Closed
• Materials: Forged Brass body; Nickel Plated Brass stem; Buna N paddle
• Flow: 3.5 Cv
• Electrical: 24 V AC @ 50/60 Hz; 18 in lead
• Temperature & Pressure: Fluid 32–200°F; 40 psi close-off / 300 psi static
• Media: Hot/Chilled Water, Glycol
• Features: Hysteresis Synchronous Motor; Manual Override Lever; ANSI Class IV

Designed for heating and cooling applications, this valve delivers dependable performance, ease of maintenance, and fail-safe operation in a compact, robust package.
