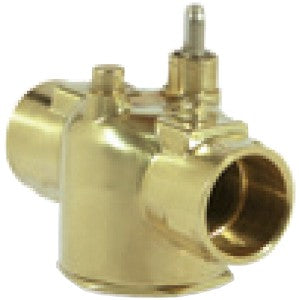

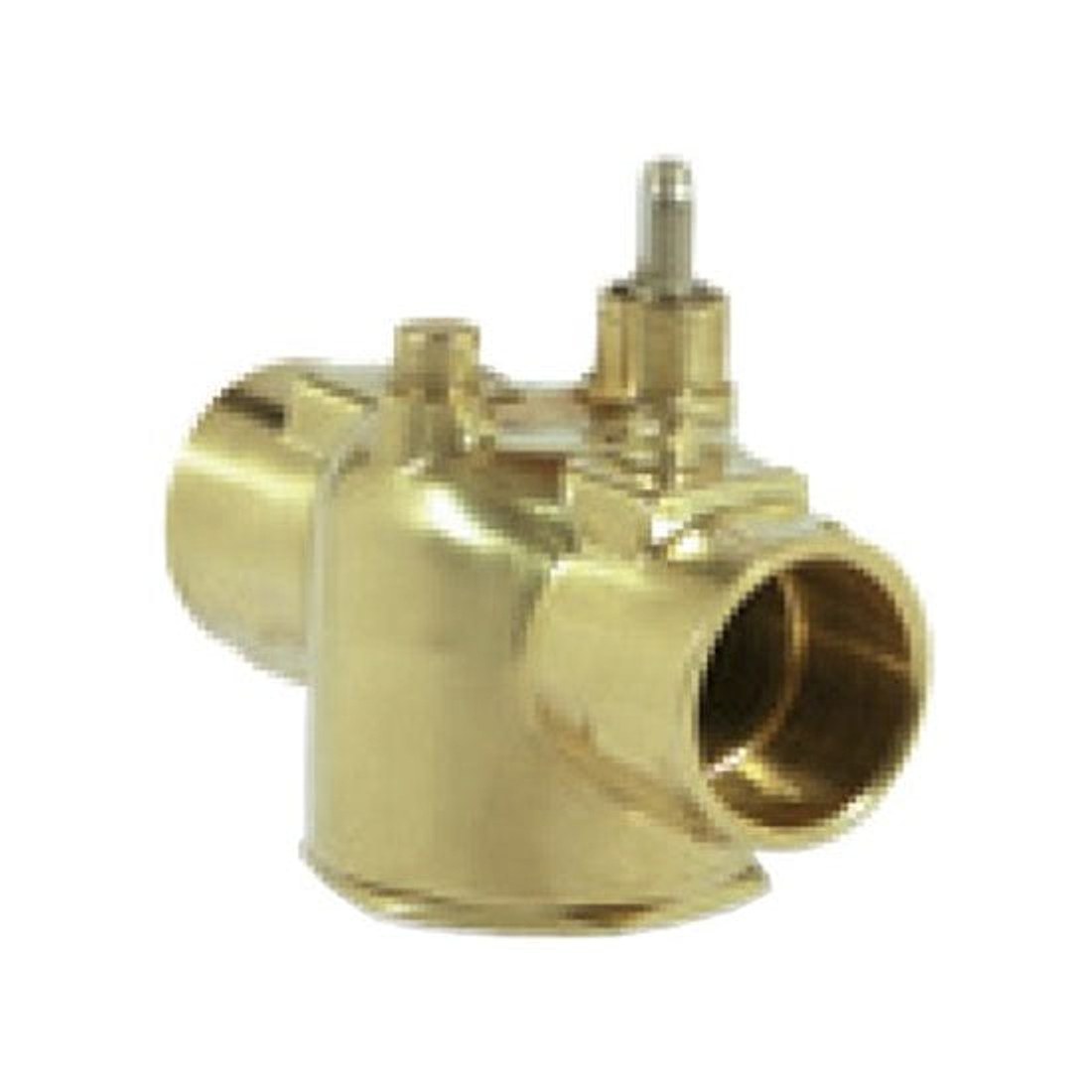

Erie Controls VT2315 Zone Valve Body

Erie Controls VT2315 Zone Valve Body delivers precise control in 2-way, 3/4 inch systems with soldered x soldered end connections. This normally closed, 2-position spring-return valve uses a forged brass body for durability in heating and cooling applications. Its 25-second timing (60 Hz) and 30-second timing (50 Hz) full cycle, plus a fast spring-return option (9 seconds) ensures reliable operation from open to close. Designed for hot or chilled water and glycol media, it performs across a wide temperature range and offers robust, dependable HVAC control.

• Nominal size & type: 3/4 inch, 2-way zone valve body with soldered x soldered end connections
• Actuation: 2-position, spring-return for fail-safe operation; normally closed
• Materials: forged brass body; nickel-plated stem; brass seat; Buna N paddle
• Flow & media: 5 Cv flow capacity; handles hot water, chilled water, and glycol
• Temperature & pressure: 32–200 °F fluid range; 40 psi close-off; 300 psi static
• Motor & override: hysteresis synchronous motor for long life; manual override lever
• Mounting & environment: horizontal or vertical installation; ambient up to 104 °F; 5–95% non-condensing humidity
• Application: ideal for heating and cooling HVAC systems requiring reliable zone control
