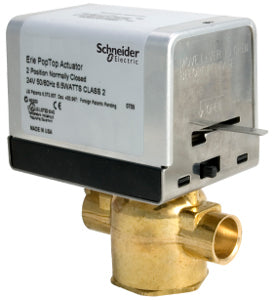

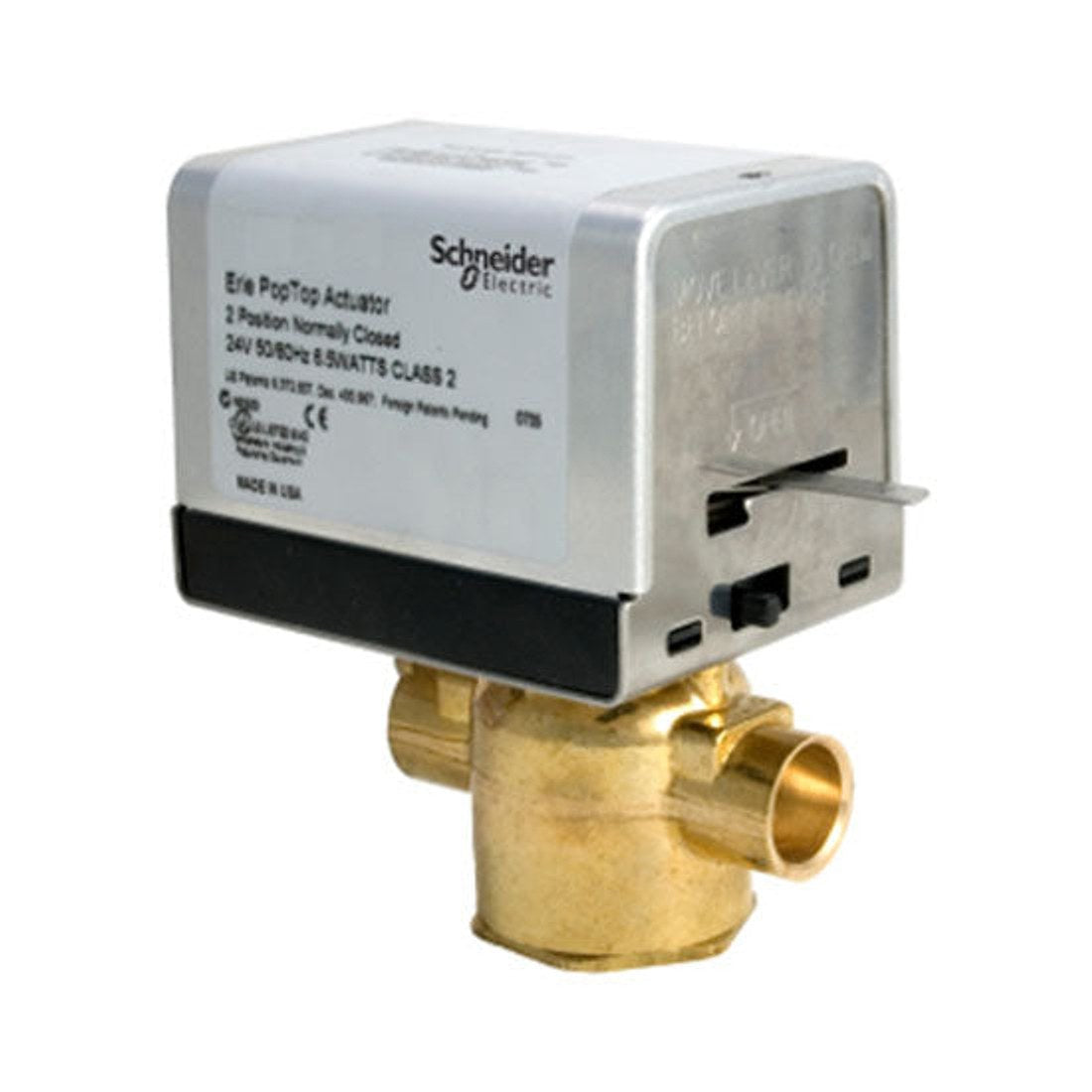

Erie Controls VT2315G13A02A Zone Valve Body Assembly

Erie Controls VT2315G13A02A Zone Valve Body Assembly is a robust 2‑Way valve engineered for HVAC heating and cooling systems. This zone valve features soldered end connections and a 24V AC coil for reliable control.

• Type: 2‑Way valve with normally closed position for secure shutdown
• End connections: soldered x soldered
• Actuation: 2‑Position, Spring Return; On/Off (general close‑off); fail‑safe
• Electrical: 24V AC, 18 inch lead
• Flow capacity: 5 Cv
• Materials: forged brass body; nickel plated brass stem; brass seat; Buna N paddle
• Timing: 25 s @ 60 Hz; 30 s @ 50 Hz; 9 s with spring return
• Mounting: horizontal or vertical
• Media: hot water, chilled water, glycol
• Temperature/Pressure: 32–200°F; 40 psi close‑off, 300 psi static
• Inclusions: hysteresis synchronous motor for long life; manual override lever
• Application: heating and cooling; ANSI Class IV

Designed for durability and ease of integration, this valve combines a rugged forged brass body with precise actuation, delivering reliable HVAC control across a range of temperatures and pressures. Its fail‑safe spring return, coupled with a 24V AC coil and standard soldered connections, makes it a dependable choice for commercial and residential systems alike.
