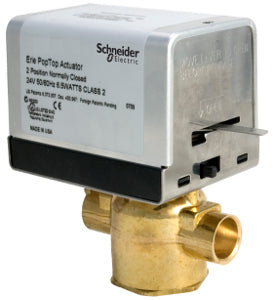

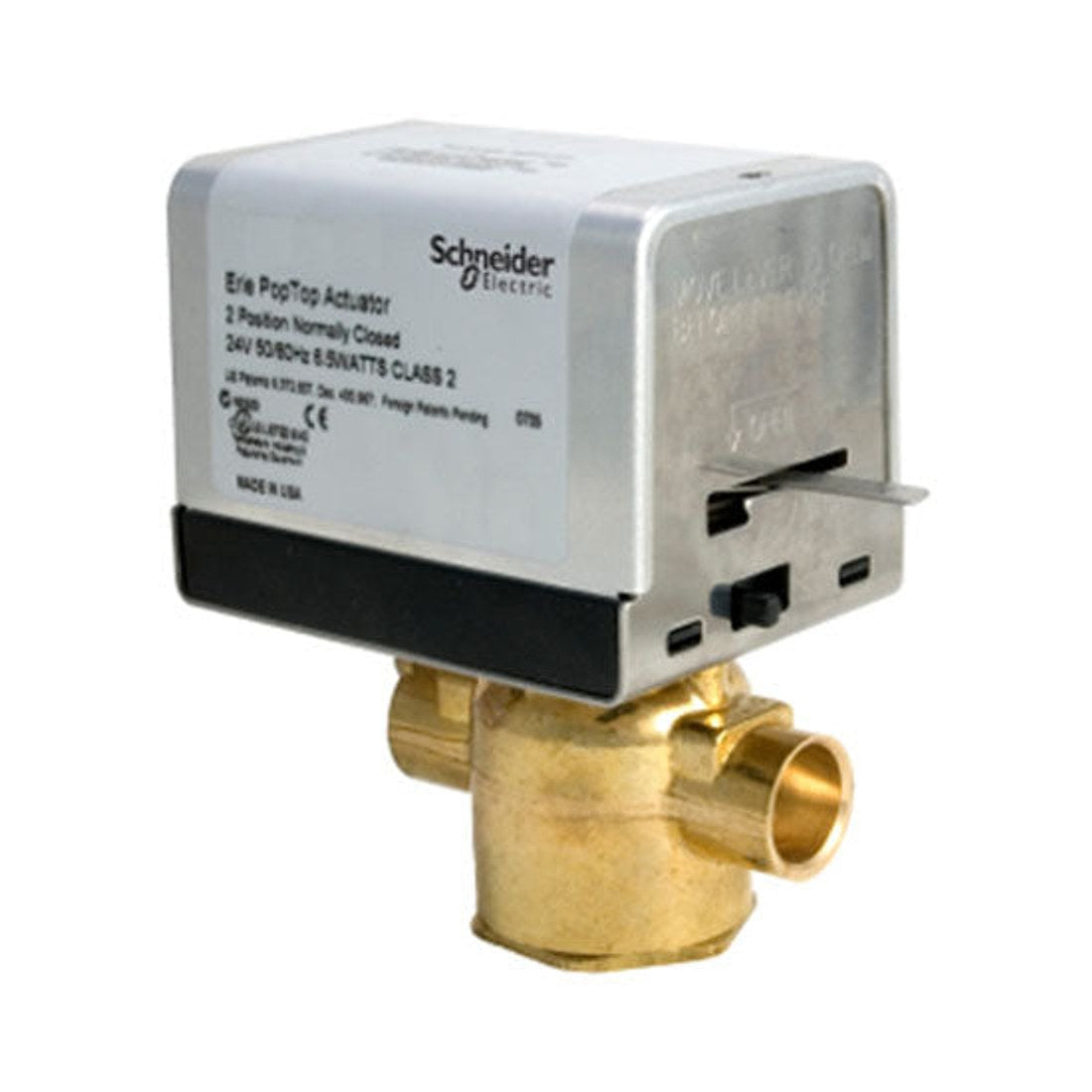

Erie Controls VT2317G13A020 Zone Valve Body Assembly

VT2317G13A020 Zone Valve Body Assembly from Erie Controls delivers precise, reliable control for heating and cooling systems. This 2-Way zone valve features a 3/4 inch nominal size with soldered end connections for a robust, leak-tight install. The 2-Position, Spring Return actuation provides a fail-safe On/Off operation, with a normally closed position ideal during power loss.

Constructed with a forged brass body, nickel-plated brass stem, and Buna N paddle, it is suited for hot and chilled water, as well as glycol blends. This valve supports horizontal or vertical mounting and operates on 24V AC (50/60 Hz). It offers a generous temperature range of 32 to 200°F and close-off/static pressures of 40 psi and 300 psi, respectively, for dependable performance in HVAC systems.

• 2-Way valve with 3/4" nominal size and soldered x soldered end connections
• 2-Position, Spring Return actuation for On/Off control
• Normally Closed with fail-safe operation and manual override lever
• Forged brass body, nickel-plated brass stem, Buna N paddle
• 24V AC input with an 18-inch electrical lead; Flow 7.5 Cv
• Temperature range 32–200°F; 40 psi close-off / 300 psi static; media: hot water, chilled water, glycol
• ANSI Class IV rating; Horizontal or vertical mounting
