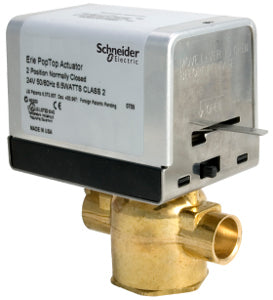

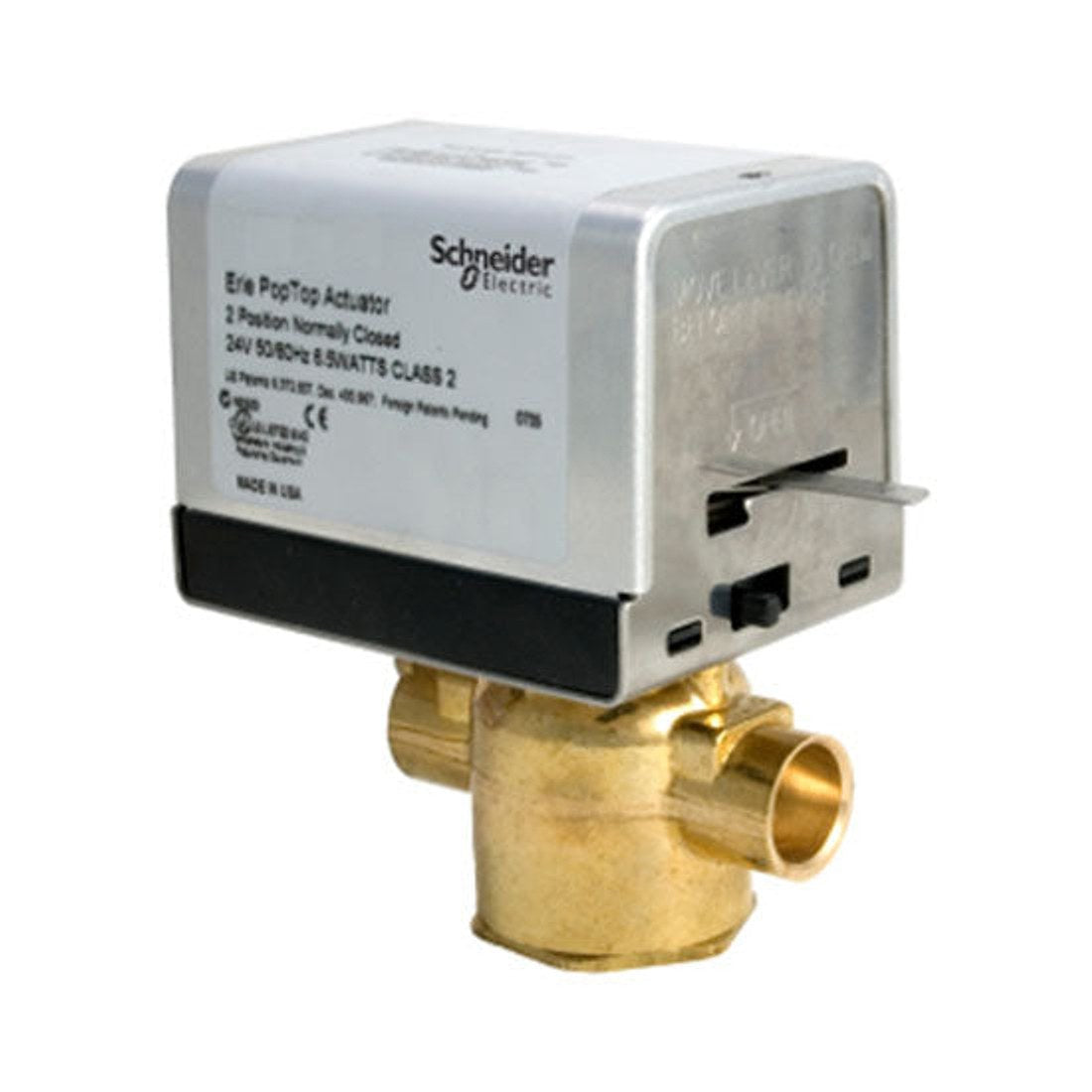

Erie Controls VT2317G13A02A Zone Valve Body Assembly

Zone Valve Body Assembly VT2317G13A02A delivers precise control for heating and cooling systems. This 2-Way, normally closed valve features soldered end connections and a rugged nickel-plated brass stem with brass seat and Buna N paddle for long life. The 24V AC, 2-Position, spring-return actuator provides reliable general close-off and a fail-safe manual override option.

Valve timing is optimized for responsive operation: 25 seconds full open to full close at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring-return (full range). It supports horizontal or vertical mounting and accepts hot or chilled water with glycol as a compatible media. Temperature rating ranges from 32 to 200 Deg F, with a close-off pressure of 40 PSI and a static pressure rating of 300 PSI.

Key construction and standards ensure dependable service: forged brass body, nickel-plated brass stem, Buna N paddle, and ANSI Class IV compliance. The 7.5 Cv flow capacity and an 18-inch electrical lead make it suitable for mid-range heating and cooling applications, with hysteresis synchronous motor for long life and a manual override lever for maintenance or emergencies.

• 2-Way, normally closed valve design
• End connections: soldered x soldered
• Actuation: 24V AC, 2-Position, spring-return (on/off)
• Materials: nickel-plated brass stem; brass seat; Buna N paddle
• Specifications: 7.5 Cv; 32–200 F; 40 PSI close-off / 300 PSI static
• Mounting & lead: horizontal/vertical mounting; 18-inch lead
• Standards & features: ANSI Class IV; manual override; hysteresis synchronous motor
