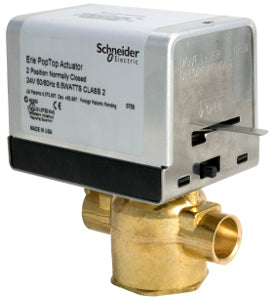

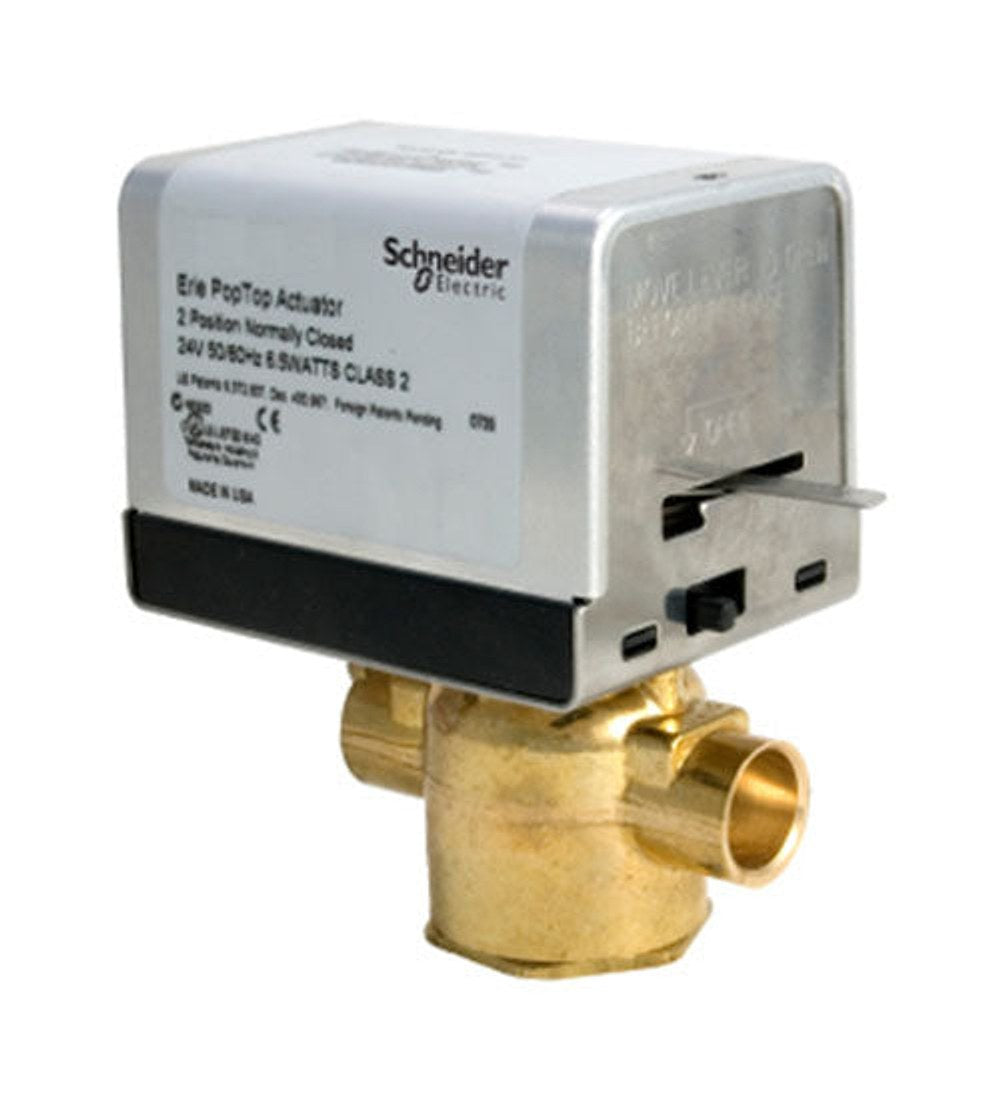

Erie Controls VT2317G13A030 Zone Valve Body Assembly

The Erie Controls VT2317G13A030 Zone Valve Body Assembly delivers precise, reliable control for heating and cooling systems. This 2-Way valve features a forged brass body with soldered end connections and a 24V AC, 2-Position, spring-return actuator for dependable, fail-safe shutoff. It is normally closed and includes a manual override for service and calibration.

Designed for hot or chilled water and glycol services, this valve handles demanding HVAC duties with a 7.5 Cv flow and robust construction. It supports horizontal or vertical mounting and operates across 32–200°F fluids, up to 300 psi static (40 psi close-off). Built to ANSI Class IV standards, it combines long-life operation with easy field service.

• 2-Way valve configuration with normally closed operation for fail-safe control
• Forged brass body with nickel-plated brass stem and brass seat for durability
• Soldered end connections for straightforward integration into hot/chilled water or glycol loops
• 24V AC actuation with 2-Position, spring-return operation and 18 in lead
• Fast valve timing 25 s (60 Hz) / 30 s (50 Hz); 9 s spring-return full open to full close
