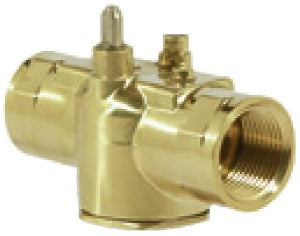

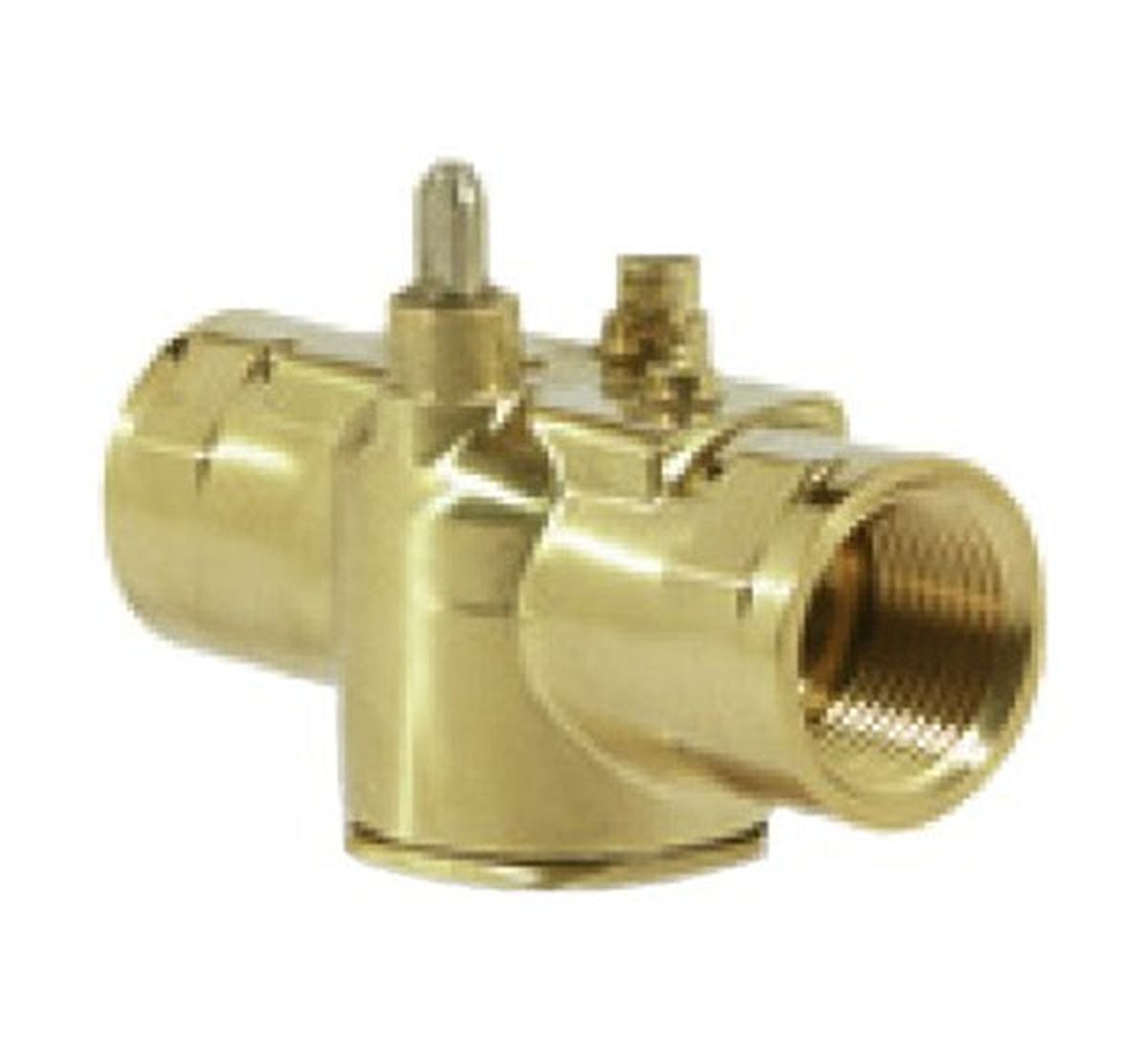

Erie Controls VT2323 Zone Valve Body

The VT2323 Zone Valve Body from Erie Controls delivers precise 2-Way control for heating and cooling systems. This forged brass body is sized at 3/4 inch and uses threaded end connections for versatile installation.

It features a 2-Position, Spring Return actuator, with a normally closed valve position, ensuring fail-safe operation in power-loss scenarios.

Key specs include 3.5 Cv flow, media compatibility with hot or chilled water and glycol, temperatures from 32 to 200 Deg F, and close-off/ static pressures of 40 PSI and 300 PSI. Mountable horizontally or vertically to fit your system, with a nickel-plated stem, brass seat, and Buna N paddle to handle demanding fluids.

• 2-Way zone valve body with 3/4 in nominal size and threaded end connections
• Actuation: 2-Position, Spring Return; Normally Closed
• Body: Forged Brass; Stem: Nickel Plated; Seat: Brass; Paddle: Buna N
• Flow: 3.5 Cv; Media: Hot/Chilled Water, Glycol
• Operating range: 32–200 Deg F; 40 PSI close-off; 300 PSI static
• Mounting: Horizontal or Vertical; Manual Override Lever
• Inclusion: Hysteresis Synchronous Motor for long life; Spring Return for fail-safe

Designed for reliable performance in HVAC heating and cooling applications, the VT2323 Zone Valve Body combines durability with easy integration and fail-safe operation.
