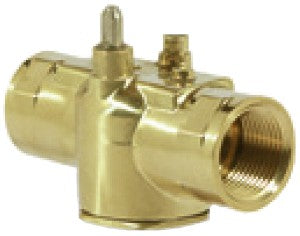

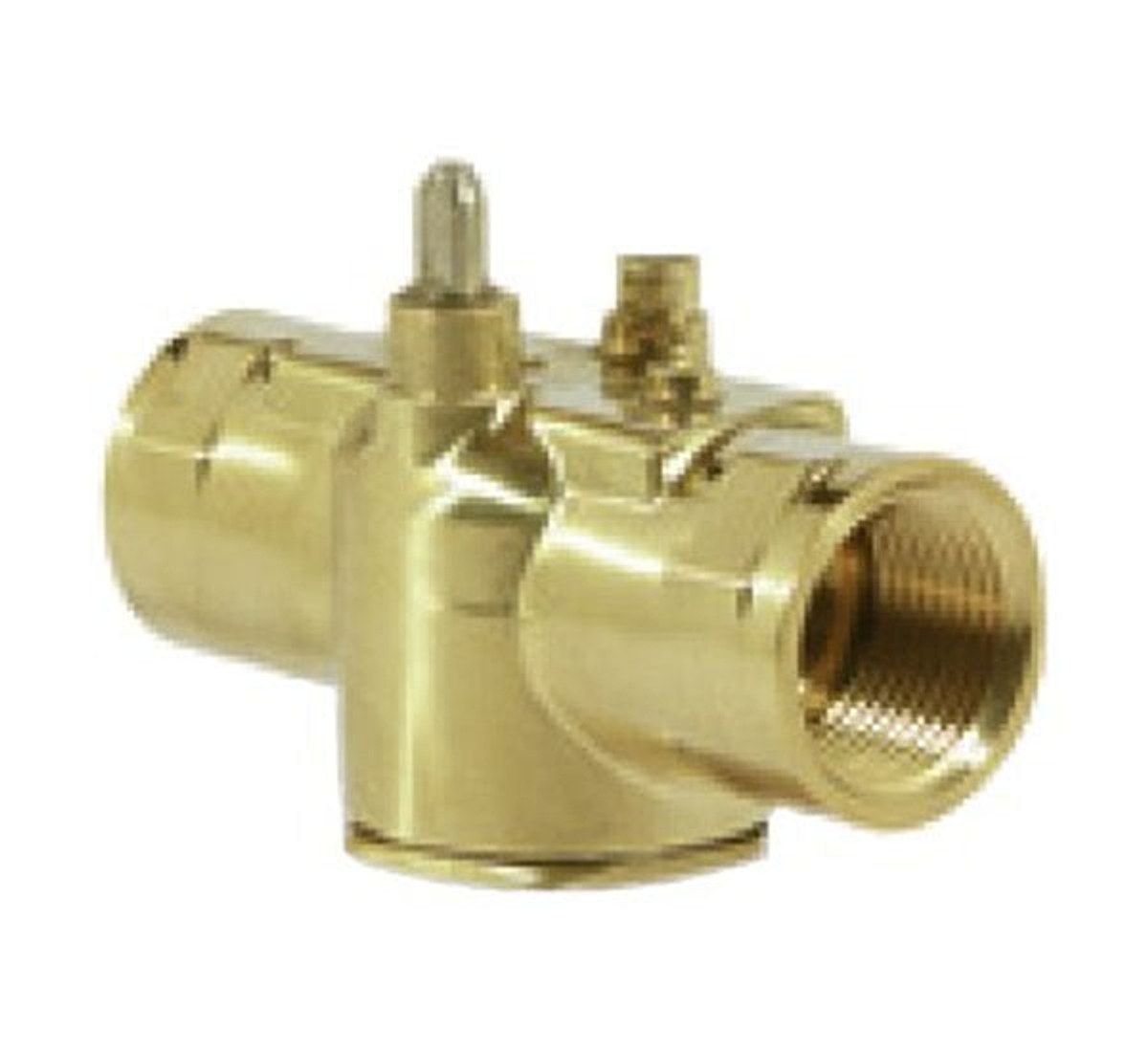

Erie Controls VT2327 Zone Valve Body

Erie Controls VT2327 Zone Valve Body offers reliable 2-way zoning for heating and cooling systems. It provides precise control with a fail-safe spring-return actuator for dependable operation.

This 3/4 inch nominal valve features threaded end connections and a 2-Position, spring-return actuation. The valve position is normally closed, ensuring safe shutdown on power loss.

Crafted with a forged brass body, nickel-plated stem, brass seat, and Buna N paddle, it handles hot water, chilled water, and glycol with robust performance. The assembly is designed for horizontal or vertical mounting and withstands demanding environments (ambient up to 104 F, non-condensing humidity 5–95%).

Key specs include valve timing of 25 seconds at 60 Hz (30 seconds at 50 Hz) and a fast 9-second spring-return option from full open to full close, with a temperature range of 32 to 200 F. Pressure ratings include 40 psi close-off and 300 psi static. Flow capacity is 7.5 Cv.

• 2-Way, 3/4" nominal zone valve body with threaded x threaded connections
• 2-Position, spring-return actuation for reliable fail-safe operation
• Normally closed valve position for safe shutdown on loss of power
• Durable materials including forged brass body, nickel-plated stem, brass seat, Buna N paddle
• Versatile mounting horizontal or vertical
• Wide media compatibility with hot/chilled water and glycol
• Efficient flow with 7.5 Cv and robust temperature/pressure ratings
