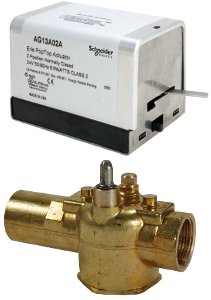

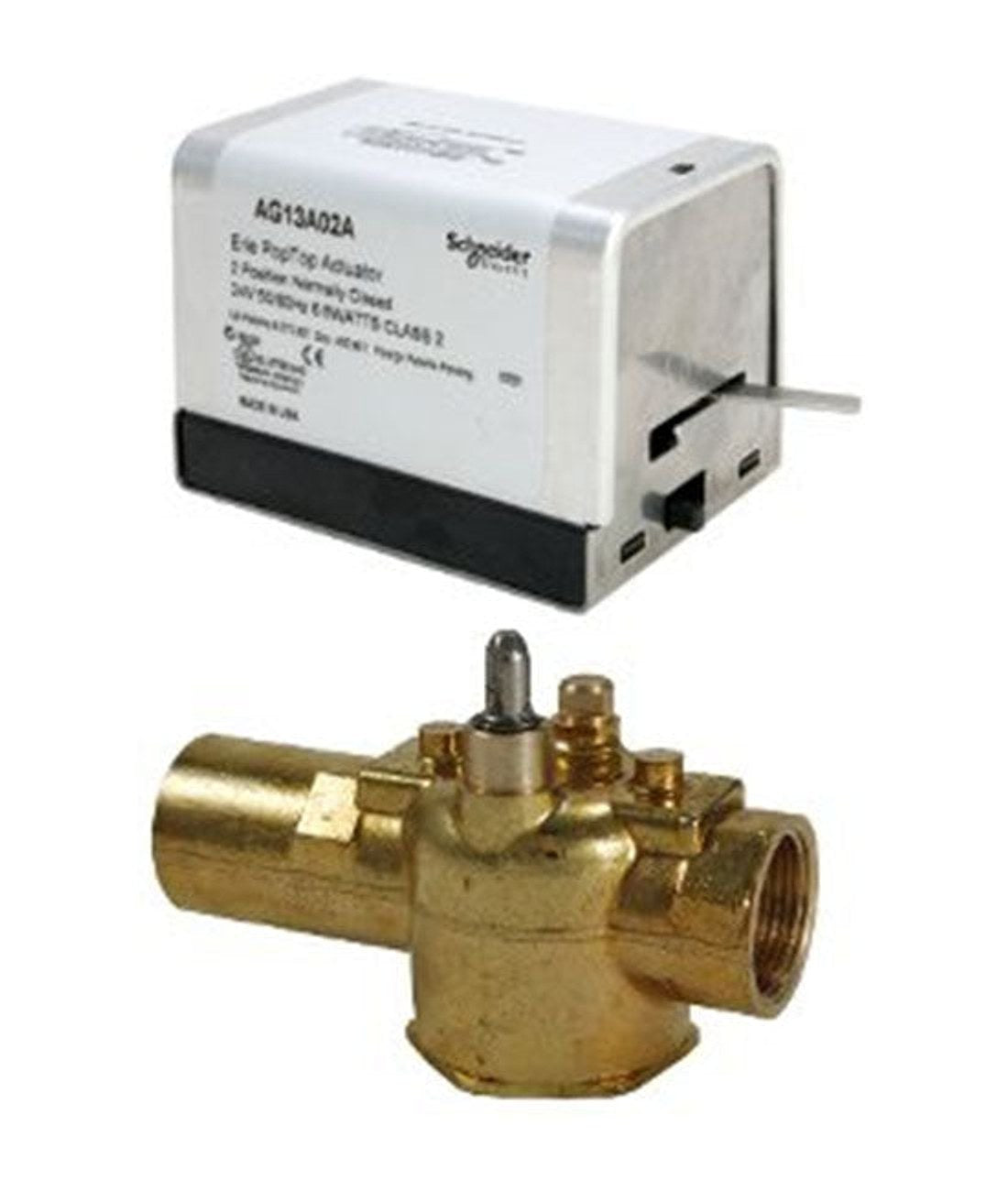

Erie Controls VT2343G13A020 Zone Valve Body Assembly

Zone Valve Body Assembly for HVAC systems delivers precise control with a 2-Way design and a 3/4 inch nominal size. Designed for reliability, it uses inverted flare end connections for a secure, leak-free installation, ideal for compact zoning and energy-efficient control.

Built with a forged brass body and Buna N paddle, it handles hot water, chilled water, and glycol across 32 to 200°F. The 24V AC input and a 2-Position, spring-return actuator provide dependable, fail-safe operation with a normally closed position. ANSI Class IV rating, 3.5 Cv flow, and a rugged build support demanding heating and cooling applications with long service life.

• Type: 2-Way valve, end connections Inverted Flare x Inverted Flare
• Mounting: Horizontal or Vertical
• Actuation: 2-Position, Spring Return, manual override lever
• Valve timing: 25 s (60 Hz) / 30 s (50 Hz); 9 s (spring return, full open to close)
• Media: Hot water, chilled water, glycol
• Pressure ratings: 60 psi close-off, 300 psi static
• Electrical: 24 VAC, 18 in lead
• Materials: Nickel-plated brass stem, brass seat
• Ambient/Humidity: 104°F max; 5–95% non-condensing
