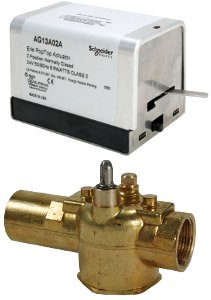

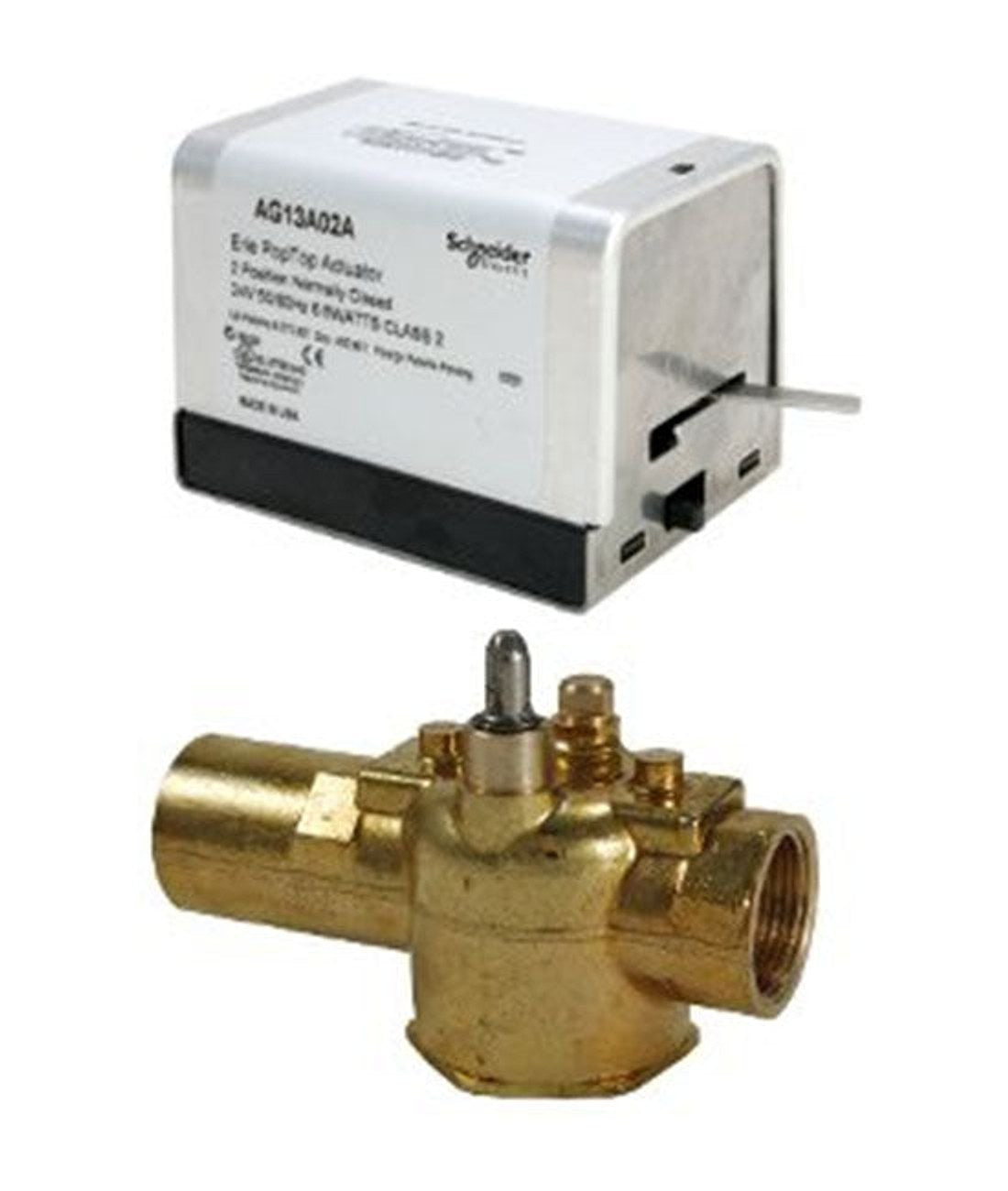

Erie Controls VT2343G13A02A Zone Valve Body Assembly

Zone Valve Body Assembly designed for precise hydro-thermal control in HVAC applications. The Erie Controls VT2343G13A02A Zone Valve Body Assembly is a 2-way, 3/4 inch valve with inverted flare end connections and a 24 VAC actuation, delivering dependable performance for hot and chilled water or glycol systems.

The valve is normally closed and uses a 2-position, spring-return actuator for fail-safe operation, with a convenient manual override lever. Valve timing is optimized for fast response: 25 seconds full travel at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring-return operation (full open to full close). It supports horizontal or vertical mounting to fit your installation.

Constructed for durability, the body is forged brass with a nickel-plated brass stem and brass seat, combined with Buna N paddle. It handles hot water, chilled water, and glycol within a temperature range of 32 to 200 deg F and up to 60 psi close-off / 300 psi static pressure. The assembly includes a hysteresis synchronous motor for long life and a 3.5 Cv flow capacity, ANSI Class IV standards, and 18-inch electrical leads for easy wiring.

• 2-way valve with 3/4" nominal size and inverted flare x inverted flare connections
• 2-position, spring-return actuator with manual override
• Normally closed configuration for fail-safe operation
• Media: hot water, chilled water, glycol; temperature 32–200 deg F
• Durable forged brass body, nickel-plated brass stem, Buna N paddle; 3.5 Cv flow
• Electrical: 24V AC, 18" lead; mounting: horizontal or vertical
• ANSI Class IV, 60 psi close-off / 300 psi static
