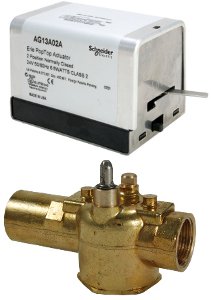

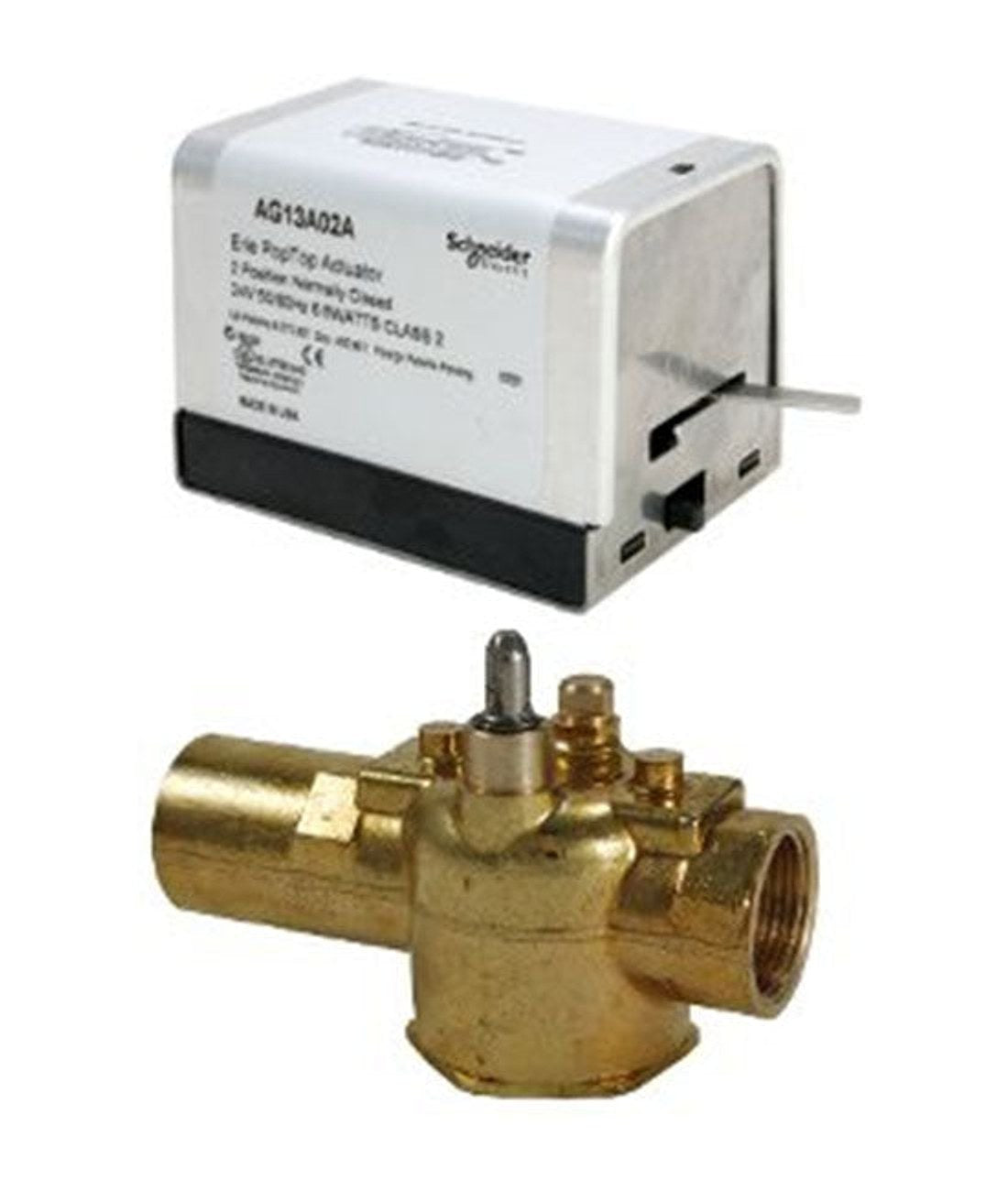

Erie Controls VT2343G13A02A0F Zone Valve Body Assembly

Erie Controls VT2343G13A02A0F Zone Valve Body Assembly

$125.09 USD
$125.09 USD
Sale Sold out
Shipping calculated at checkout.

15 in stock

33448

View full details

Zone Valve Body Assembly, Erie Controls VT2343G13A02A0F, delivers reliable 2-Way control for heating and cooling systems. This valve uses a 2-Position, Spring Return actuator for a secure fail-safe off state and a normally closed position, ensuring safe shutdowns during power loss or system fault.

  • End connections: Inverted Flare x Inverted Flare
  • Material & build: Forged brass body; nickel-plated brass stem; brass seat; Buna N paddle
  • Flow capacity: 3.5 Cv
  • Actuation: Hysteresis synchronous motor, 24 V AC (50/60 Hz), 2-Position, Spring Return; manual override lever
  • Operating characteristics: Normally closed; fail-safe operation
  • Media & temp range: Hot/Chilled water and glycol; 32–200 °F fluid; ambient 104 °F; 5–95% non-condensing humidity
  • Pressure & ratings: Close-off 60 psi; Static 300 psi; ANSI Class IV
  • Mounting: Horizontal or vertical installation

Specifications

Type2-Way
Pressure Rating60 PSI (Close-Off), 300 PSI (Static)
Temperature Rating32 to 200 Deg F (Fluid)
Input Supply24 Volt AC at 50/60 Hertz
ApplicationHeating and Cooling
Body MaterialForged Brass
End ConnectionInverted Flare x Inverted Flare
StandardsANSI Class IV
Mounting TypeHorizontal/Vertical
IncludesHysteresis Synchronous Motor for Long Life, Spring Return Operation Provides a Fail-Safe, Manual Override Lever
MediaHot/Chilled Water, Glycol
Actuation Type2-Position, Spring Return, On/Off (General Close-Off)
Valve PositionNormally Closed
Valve Timing25 Second for 60 Hertz/30 Second for 50 Hertz/9 Second for Spring Return (Full Open to Full Close)
