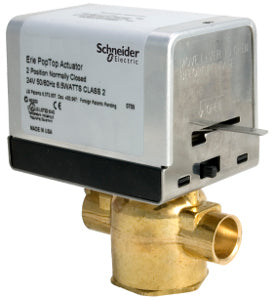

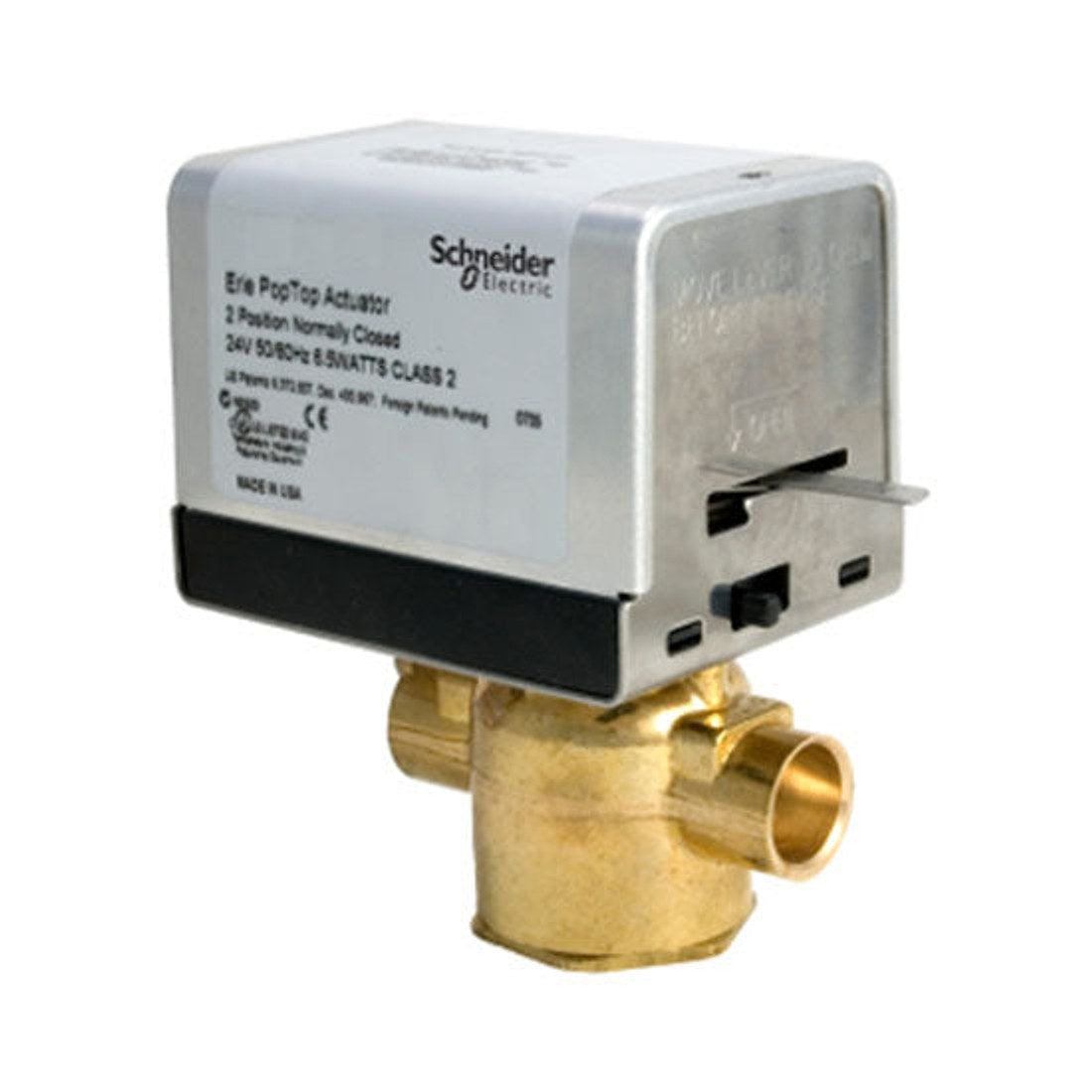

Erie Controls VT2417G13A01A Zone Valve Body Assembly

Erie Controls VT2417G13A01A Zone Valve Body Assembly is a robust 2‑way valve designed for heating and cooling applications. With a 1 inch nominal size and soldered end connections, this nickel plated brass body delivers dependable performance, long life, and reliable fail‑safe operation. The 2-Position, Spring Return actuation provides on/off control with a normally closed posture, suitable for hot or chilled water and glycol media.

Operating parameters include a 24 V AC input at 50/60 Hz and a fluid temperature range of 32–200 °F. This valve is built for versatility with horizontal or vertical mounting, and it features a fail‑safe spring return and a manual override lever for servicing. ANSI Class IV compliance ensures reliable performance in demanding HVAC installations.

• Type: 2‑Way
• Nominal Size: 1 Inch
• End Connection: Soldered x Soldered
• Actuation: 2-Position, Spring Return (On/Off, General Close-Off)
• Media: Hot/Chilled Water, Glycol
• Flow Capacity: 7.5 Cv
• Temperature Range: 32–200 °F
• Pressure Ratings: 25 psi close-off, 300 psi static
• Electrical Connection: 18 inch Lead
• Materials: Forged Brass body; Nickel Plated Brass (Stem); Buna N (Paddle)
• Valve Timing: 25 s @ 60 Hz; 30 s @ 50 Hz; 9 s Spring Return
• Ambient/Humidity: 104 °F ambient; 5–95% non-condensing
• Inclusions/Features: Hysteresis Synchronous Motor; Manual Override Lever

Designed to meet ANSI Class IV standards, this zone valve body assembly delivers precise, reliable control for HVAC systems.
