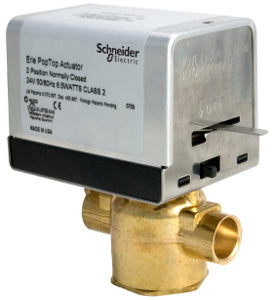

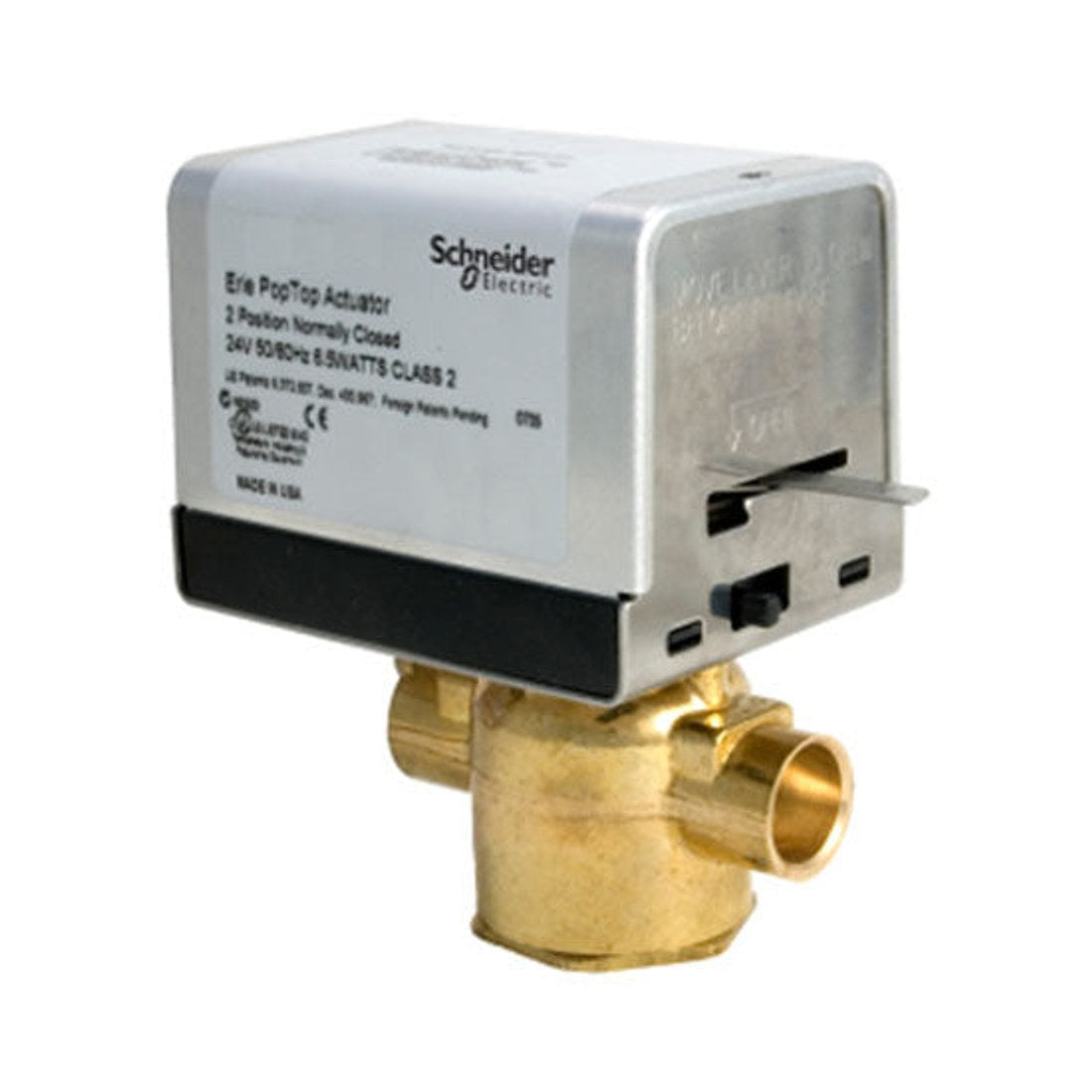

Erie Controls VT2417G13A02A Zone Valve Body Assembly

Erie Controls VT2417G13A02A Zone Valve Body Assembly is engineered for precise control in heating and cooling systems. This 2-way, 1-inch nominal size valve features soldered x soldered end connections and a durable forged brass body, built for long life in demanding HVAC applications.

With a 2-position, spring-return actuation and a normally closed position, it provides reliable fail-safe operation. The valve timing is optimized: 25 seconds full open to full close at 60 Hz (30 seconds at 50 Hz; 9 seconds with spring return). The assembly handles hot water, chilled water, and glycol, making it versatile for varied climates.

Technical details ensure dependable performance in real-world conditions: 24V AC input at 50/60 Hz, temperature rating 32–200°F, close-off pressure 25 psi and static 300 psi, and a flow capacity of 7.5 Cv. The nickel-plated brass stem and Buna N paddle deliver smooth operation, while an 18-inch electrical lead simplifies wiring. The unit supports horizontal or vertical mounting and meets ANSI Class IV standards for reliable HVAC control under diverse environments.

Key Features

• 2-way zone valve with normally closed position
• 1 inch nominal size; soldered x soldered end connections
• 2-position, spring-return actuation; fail-safe operation
• Media: hot water, chilled water, glycol
• Flow capacity: 7.5 Cv
• 24V AC input; 50/60 Hz compatibility
• Forged brass body; nickel-plated brass stem; Buna N paddle
• ANSI Class IV; horizontal or vertical mounting
