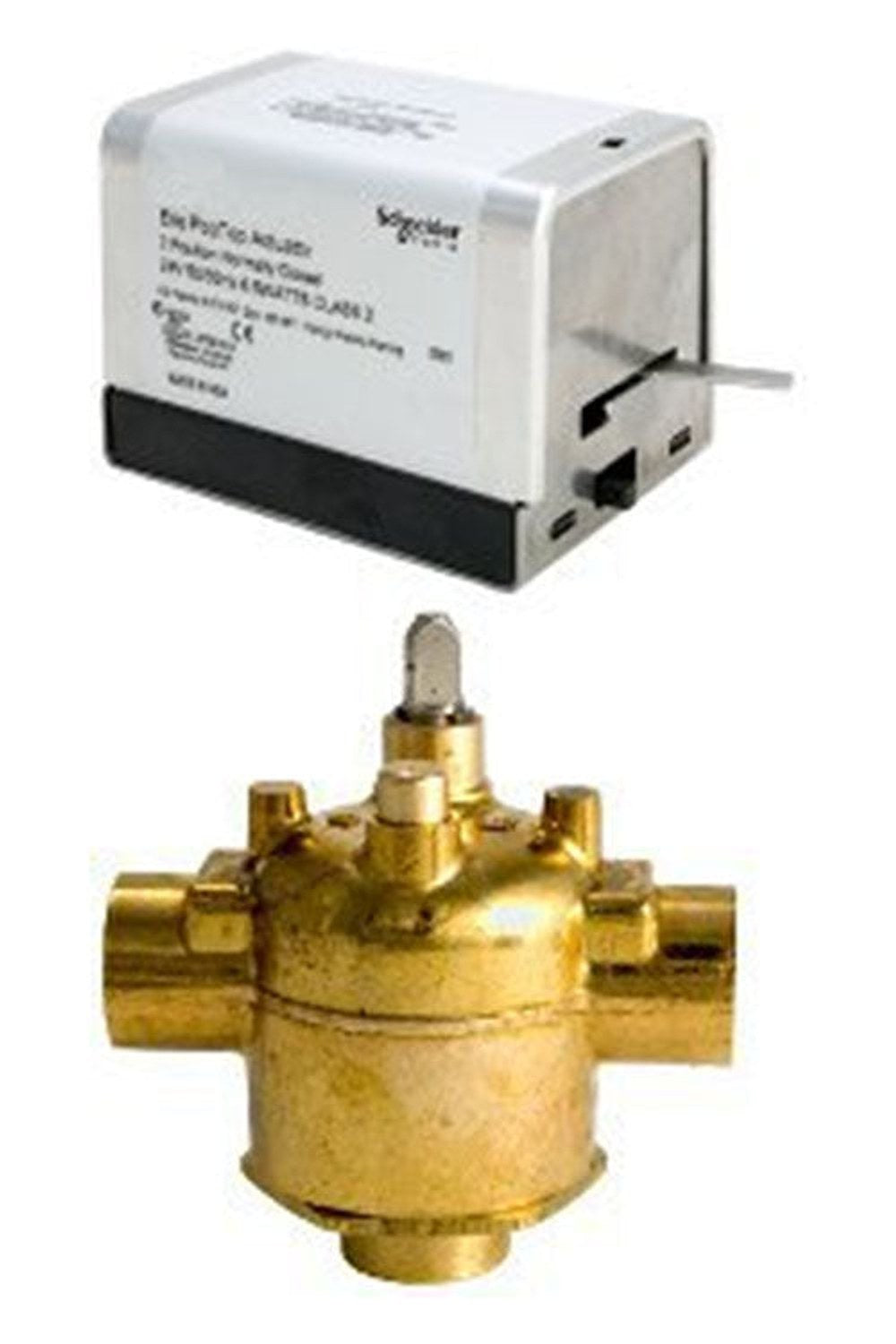

Erie Controls VT3213G13A020 Zone Valve Body Assembly

The Erie Controls VT3213G13A020 Zone Valve Body Assembly is a high‑reliability 3‑Way valve ideal for heating and cooling applications. The nominal 1/2 inch size features soldered end connections and a forged brass body for durable, leak‑tight operation.

Designed for robust HVAC control, this valve uses a 2‑Position, spring‑return actuator for secure on/off operation with a normally closed position. It provides a fail‑safe response and includes a manual override lever for service versatility. The unit is rated for 24 Volt AC control and is compatible with hot water, chilled water, and glycol mixtures, making it suitable for both heating and cooling loops.

• Valve Type: 3‑Way zone valve with normally closed position
• Nominal Size & Ends: 1/2 inch, soldered x soldered
• Actuation: 2‑Position, spring return with synchronous motor
• Materials: Forged brass body, nickel‑plated brass stem, Buna N components
• Flow & Pressure: 4 Cv flow, 60 psi close‑off / 300 psi static
• Electrical & Environment: 24V AC, 18 inch lead; 32–200°F fluid temp
• Media & Standards: Hot water, chilled water, glycol; ANSI Class IV
• Installation & Features: Horizontal/vertical mounting; manual override lever
