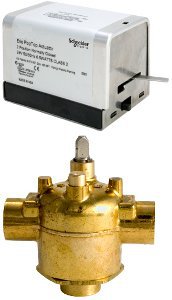

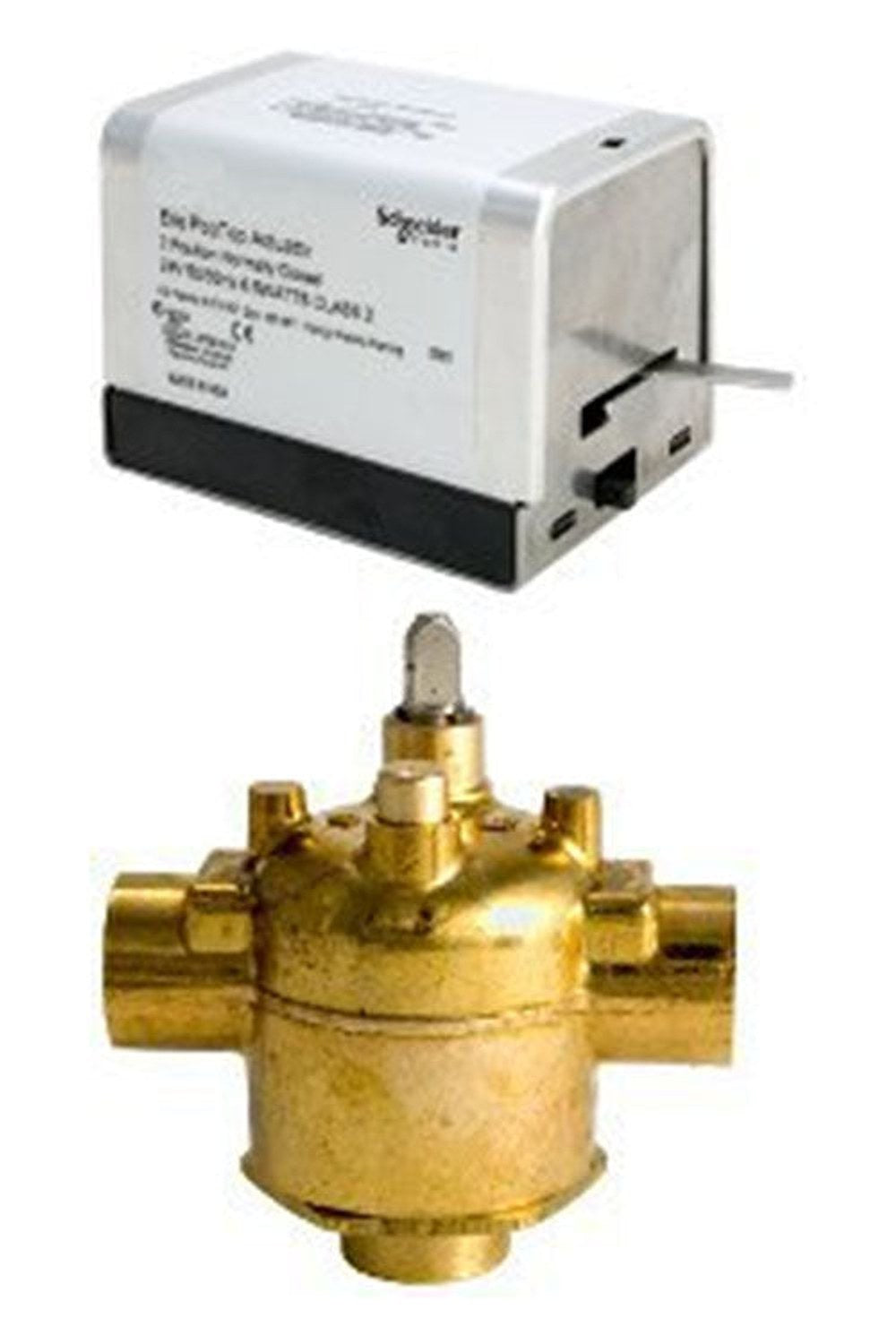

Erie Controls VT3213G13B020 Zone Valve Body Assembly

Erie Controls VT3213G13B020 Zone Valve Body Assembly delivers precise 3-Way control for heating and cooling systems. The 1/2 inch nominal size, soldered end connections, and forged brass body ensure durable performance and reliable shut-off in demanding commercial environments.

Designed with a 2-Position, Spring Return actuation for general close-off, this valve is normally closed and can be mounted horizontal or vertical. It supports an input supply of 110/120 Volt AC at 60/50 Hz and handles a wide media range of hot or chilled water and glycol. Valve timing is 25 seconds at 60 Hz, 30 seconds at 50 Hz, or 9 seconds for spring return (full open to full close), delivering responsive control across systems.

• Hysteresis Synchronous Motor for long life
• Spring Return operation provides a fail-safe
• Manual Override Lever for immediate manual control
• End connections: soldered x soldered
• Nickel-plated brass stem, brass seat, Buna N paddle
• Flow capacity: 4 Cv
• Electrical connection: 18 inch lead
• ANSI Class IV standard compliance

Operational in temperatures from 32 to 200 Deg F with a 5–95% non-condensing humidity range, the VT3213G13B020 is ideal for heating and cooling applications seeking reliable performance and robust construction.
