Erie Controls VT3323 Zone Valve Body

Erie Controls VT3323 Zone Valve Body

$70.20 USD
$70.20 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 3 left

33472

View full details

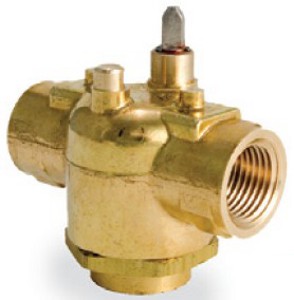

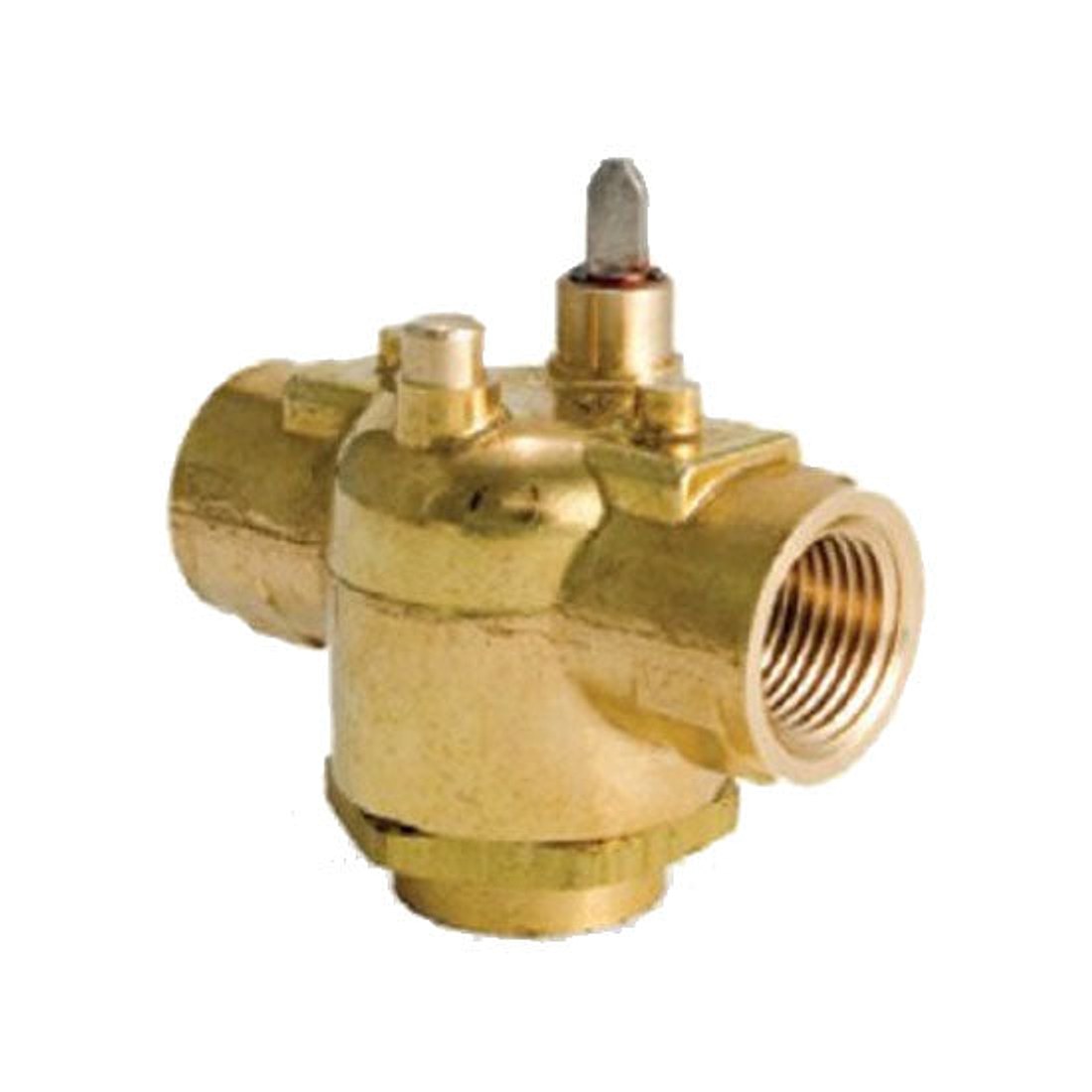

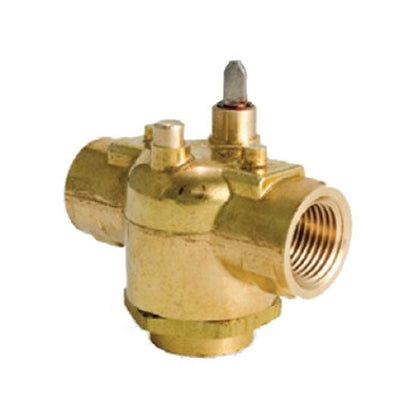

The Erie Controls VT3323 Zone Valve Body is a rugged 3-Way valve designed for HVAC systems. This 3/4 inch nominal size valve features threaded x threaded end connections and a forged brass body built for reliability in hot and chilled water applications.

  • 3-Way zone valve body with nominal size 3/4" and threaded x threaded end connections for easy installation
  • Actuation: 2-Position, Spring Return for fail-safe operation; normally closed
  • Durable construction: Forged brass body; nickel-plated stem; brass seat; Buna N paddle for long life
  • Performance: Flow capacity 4 Cv; valve timing 25 seconds (60 Hz), 30 seconds (50 Hz), or 9 seconds with spring return from full open to full close
  • Media: Suitable for hot/chilled water and glycol
  • Mounting flexibility: Horizontal or vertical installation; includes manual override lever
  • Reliability: Hysteresis synchronous motor for longevity; ambient up to 104°F; humidity 5–95% non-condensing
  • Applications include heating and cooling systems, providing precise control and dependable operation in demanding environments

Specifications

Type3-Way
Pressure Rating40 PSI (Close-Off), 300 PSI (Static)
Temperature Rating32 to 200 Deg F (Fluid)
ApplicationHeating and Cooling
Body MaterialForged Brass
End ConnectionThreaded x Threaded
Mounting TypeHorizontal/Vertical
IncludesHysteresis Synchronous Motor for Long Life, Spring Return Operation Provides a Fail-Safe, Manual Override Lever
MediaHot/Chilled Water, Glycol
Actuation Type2-Position, Spring Return
Valve PositionNormally Closed
Valve Timing25 Second for 60 Hertz/30 Second for 50 Hertz/9 Second for Spring Return (Full Open to Full Close)
