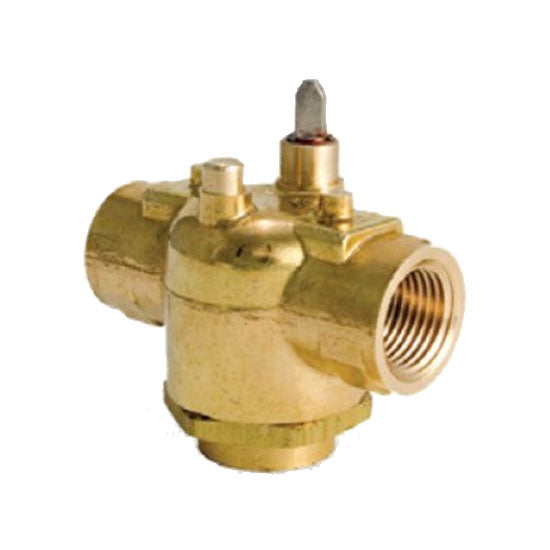

Erie Controls VT3323 Zone Valve Body

The Erie Controls VT3323 Zone Valve Body is a rugged 3-Way valve designed for HVAC systems. This 3/4 inch nominal size valve features threaded x threaded end connections and a forged brass body built for reliability in hot and chilled water applications.

• 3-Way zone valve body with nominal size 3/4" and threaded x threaded end connections for easy installation
• Actuation: 2-Position, Spring Return for fail-safe operation; normally closed
• Durable construction: Forged brass body; nickel-plated stem; brass seat; Buna N paddle for long life
• Performance: Flow capacity 4 Cv; valve timing 25 seconds (60 Hz), 30 seconds (50 Hz), or 9 seconds with spring return from full open to full close
• Media: Suitable for hot/chilled water and glycol
• Mounting flexibility: Horizontal or vertical installation; includes manual override lever
• Reliability: Hysteresis synchronous motor for longevity; ambient up to 104°F; humidity 5–95% non-condensing
• Applications include heating and cooling systems, providing precise control and dependable operation in demanding environments
