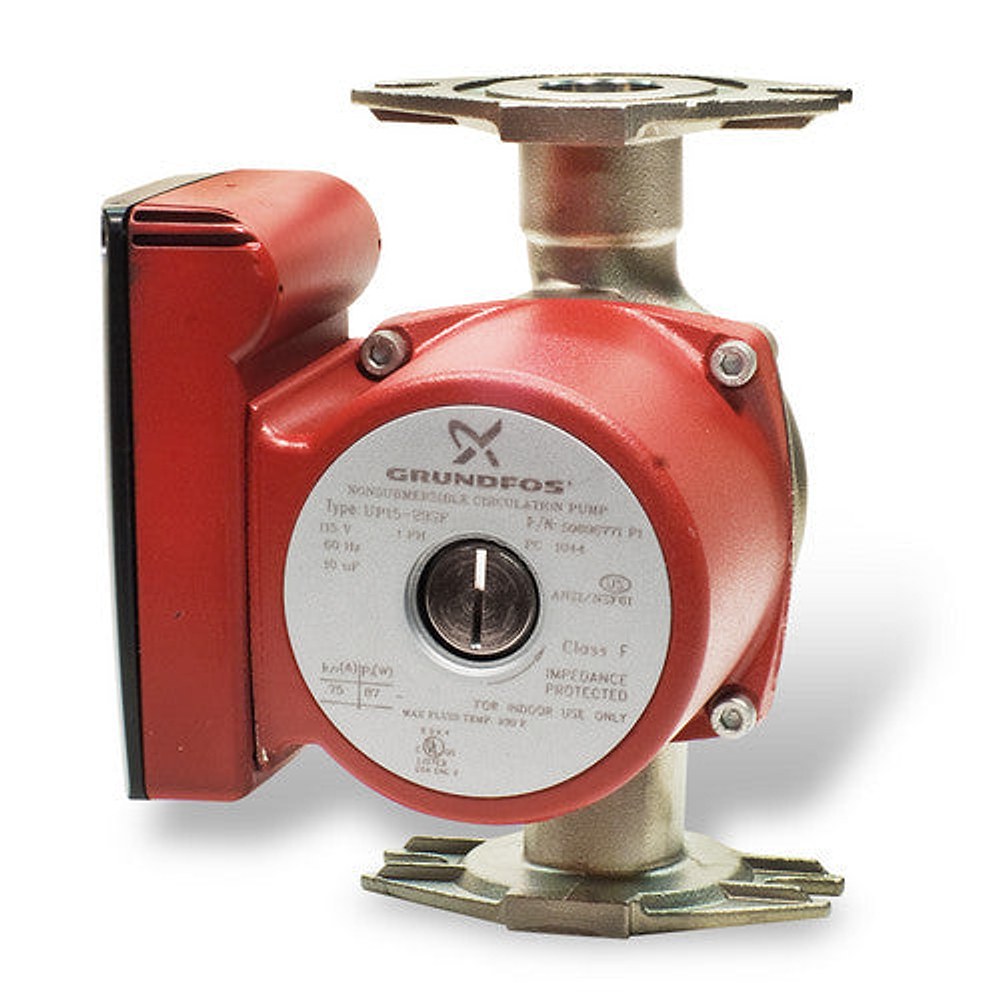

Grundfos Pumps UP15-29SF Circulator Pump

The Grundfos Pumps UP15-29SF Circulator Pump is a reliable 1/12 HP circulator designed for heating systems, hot domestic water, and cooling or air conditioning applications. This single-speed, canned-rotor unit features a stainless steel casing, ceramic shaft, and an open impeller for efficient, maintenance-friendly operation.

Engineered for durability and easy installation, it offers end connections Flanged x Flanged, a robust temperature rating of 36 to 230°F, and a pressure rating up to 145 PSI. The motor is a 2-Pole asynchronous PSC type fed by 115 Volt AC at 60 Hz, drawing about 0.75 A, ensuring reliable circulation across a variety of setups.

• Flow rate: 0 to 20.5 GPM
• Discharge head: 0 to 10 ft
• Casing material: Stainless steel; shaft material: Ceramic; impeller material: Composite PES
• Impeller design: Open
• Inclusions: Carbon thrust bearing, stainless steel rotor can and bearing plate, corrosion-resistant components
• Applications: Heating system, hot domestic water, cooling and air conditioning
• Compliance: CSA, UL listed
• Warranty: 24 months from delivery

With precise control and solid build quality, the UP15-29SF is a dependable choice for residential or light commercial HVAC needs.
