Grundfos Pumps UPS15-58FC Circulator Pump

Grundfos Pumps UPS15-58FC Circulator Pump

$186.62 USD
$186.62 USD
Sale Sold out
Shipping calculated at checkout.

45 in stock

65563

View full details

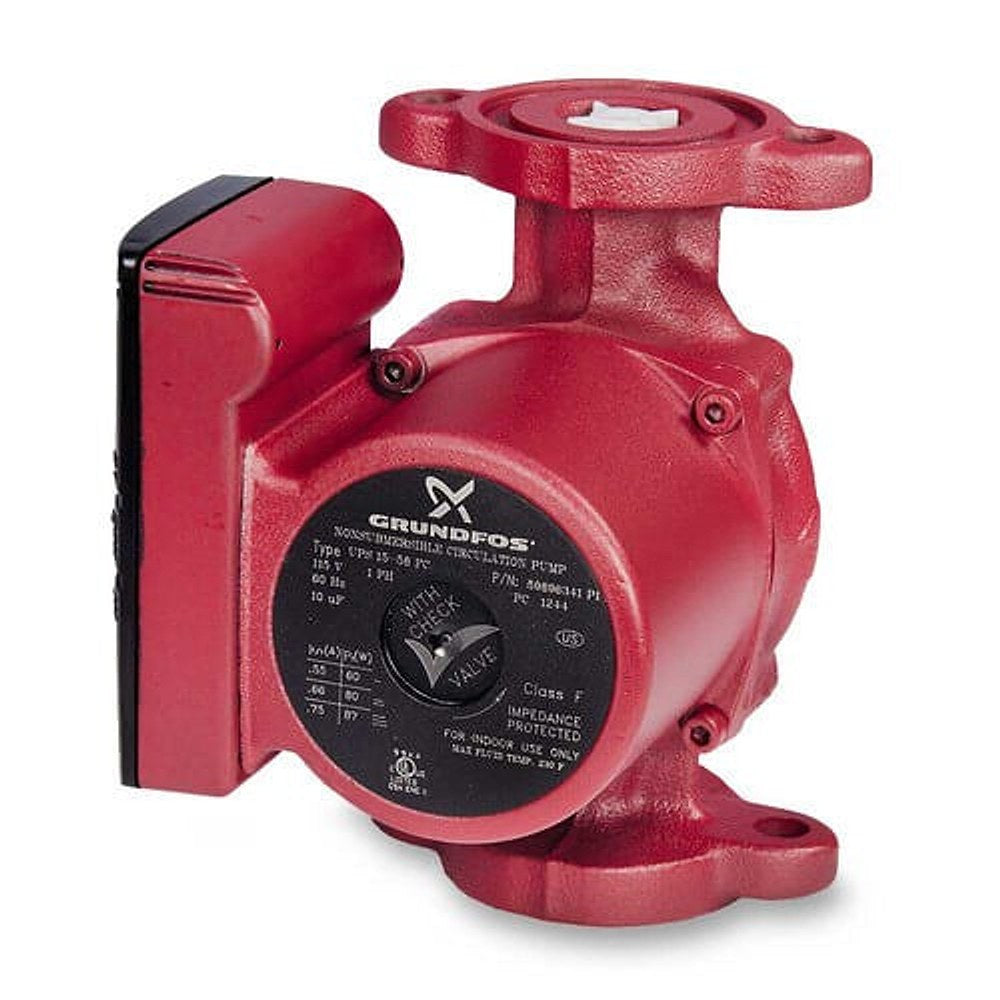

The Grundfos UPS15-58FC Circulator Pump delivers dependable 115V operation and efficient 1/25 HP performance. This 3-speed, cast-iron, flanged circulator is designed for steady water circulation in hydronic systems and belongs to the Super Brute family for rugged reliability.

Built to endure, this pump features a durable cast-iron housing, flange mounting for easy installation, and adjustable speeds to match system demand. The UPS15-58FC is compact yet powerful, delivering quiet, reliable flow in residential and light commercial applications.

  • Power: 115V, 1/25 HP motor
  • Speeds: 3-speed operation for flexible flow control
  • Construction: Rugged cast-iron body with flange connections
  • Design: Efficient, low-maintenance circulator for hydronic heating and cooling
  • Quality: Backed by Grundfos reliability and long-lasting performance

Specifications

Type3-Speed, Canned Rotor, Small Stator
Pressure Rating145 PSI
Temperature Rating36 to 230 Deg F
Input Supply115 Volt AC at 60 Hertz 1-Phase 0.75 Amp
Flow Rate0 to 17 GPM
Power Rating1/25 HP
ApplicationHeating System, Hot Domestic Water, Cooling and Air Conditioning System
End ConnectionFlanged x Flanged
Discharge Head0 to 19 Foot
StandardsUL (Canada and US), IEC 85
IncludesRemovable Check Valve, Carbon Thrust Bearing, Radial Bearing, Bearing Plate, Corrosion Resistant, (2) 1/2 Inch Bolt Hole
Impeller MaterialComposite, PES
Impeller DesignClosed
Casing MaterialAISI 304 Stainless Steel
Motor Type2-Pole Asynchronous Squirrel-Cage Permanent Split Capacitor
Shaft MaterialCeramic
Warranty24 Months from the Date of Delivery
