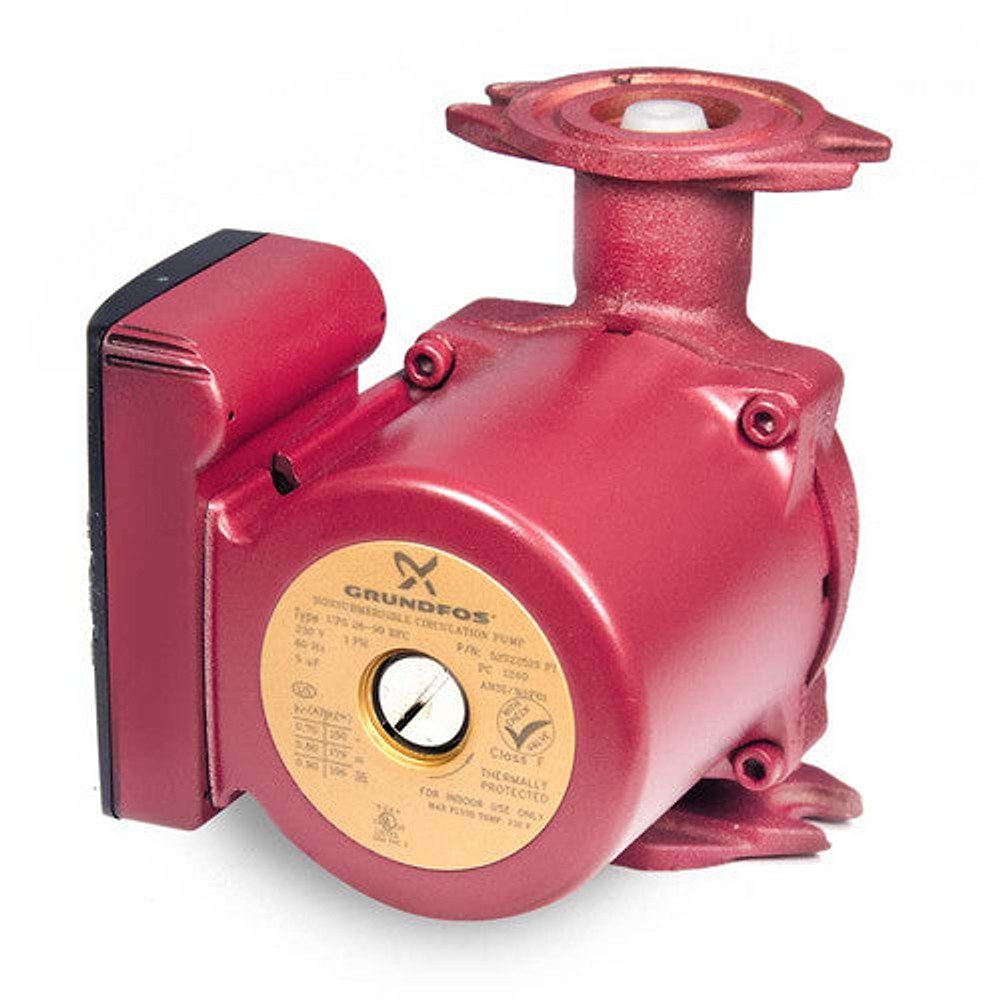

Grundfos Pumps UPS26-99SFC Circulator Pump

Grundfos UPS26-99SFC Circulator Pump is a compact, reliable three-speed circulator designed for heating systems, hot domestic water, and cooling loops. This canned-rotor model combines a large stator with a durable 6 x 6.5 inch form factor for flexible installation in tight spaces.

With a flow of up to 33 GPM and a discharge head up to 29 ft, it runs on 1/6 HP at 115 V AC, 60 Hz, drawing about 1.8 A. Built for durability, the AISI 304 stainless steel casing, ceramic shaft, and PES impeller deliver long life and corrosion resistance. The unit operates across 36–230°F and supports up to 145 PSI. It is lead-free and meets UL/IEC 85 standards.

• 3-speed operation with a permanent split capacitor motor for flexible control
• End connections Flanged x Flanged for easy installation
• Rugged construction corrosion-resistant materials: stainless steel casing, ceramic shaft, PES impeller
• Inclusions removable check valve, carbon thrust bearing, radial bearing, bearing plate
• Applications Heating system, hot domestic water, cooling and air conditioning
• Warranty 24 months from the date of delivery
