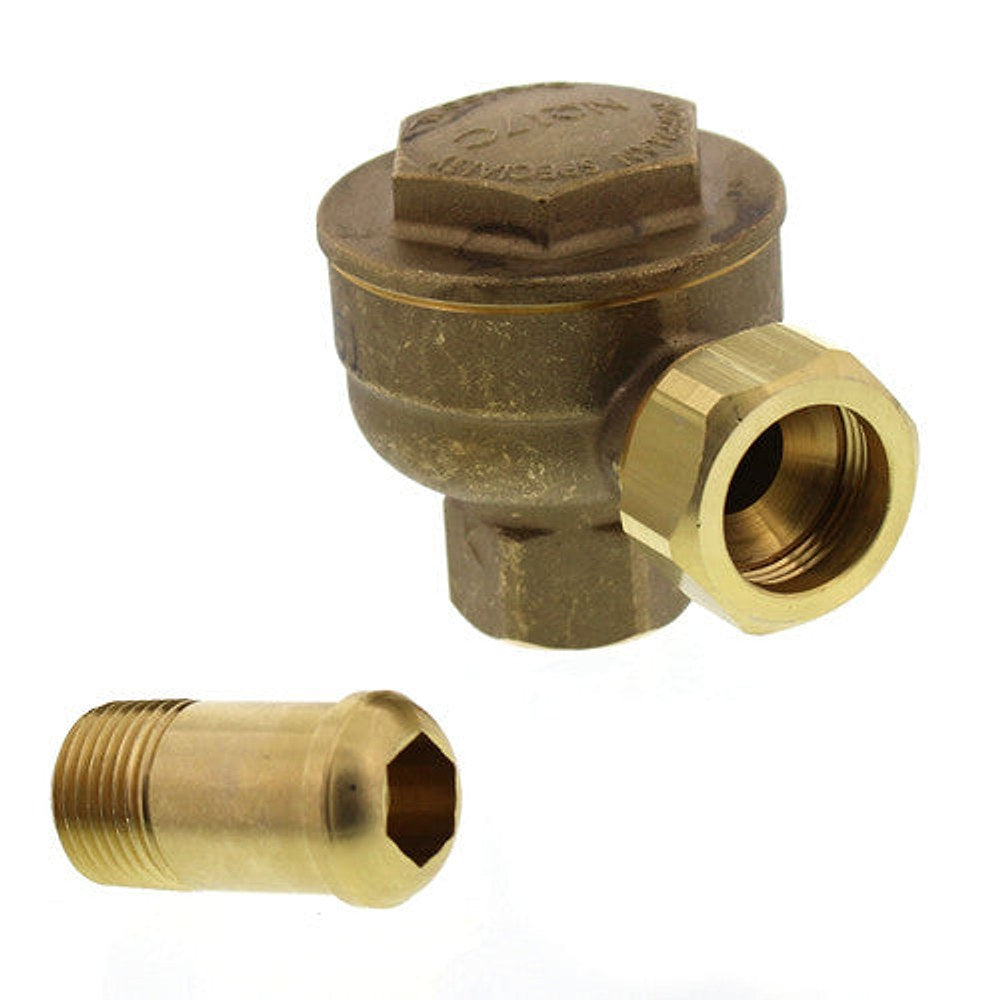

Hoffman 17C-1/2-A Steam Trap

Hoffman 17C-1/2-A Steam Trap is a high-performance thermostatic, balanced-pressure trap built for reliable condensate removal in institutional, commercial, and residential heating systems. This 1/2 inch nominal size trap features an angle body design, threaded end connections, and brass construction for durability in demanding steam service.

With a stainless steel thermostatic element, it delivers precise temperature control and efficient operation across a 267°F temperature rating and 25 PSIG pressure rating (25 PSI differential). It handles up to 162 pounds of condensate per hour, keeping steam lines clear and energy loss to a minimum. Inclusions include brass tail piece, coupling nut, and cover, ensuring easy installation and service.

• Type: Angle, Thermostatic, Balanced Pressure
• Nominal Size: 1/2 Inch
• End Connections: Threaded x Threaded
• Condensate Capacity: 162 lb/hour
• Material: Brass; Thermostatic Element: Stainless Steel
• Temperature Rating: 267°F
• Pressure Rating: 25 PSIG
• Media Handled: Steam
• Standards: Mil-Spec A-A-60001 Type V, Style A, Class 1-4

Designed for institutional, commercial, and residential heating applications, this trap offers robust reliability, straightforward maintenance, and efficient condensate management to keep your steam system operating at peak performance.
