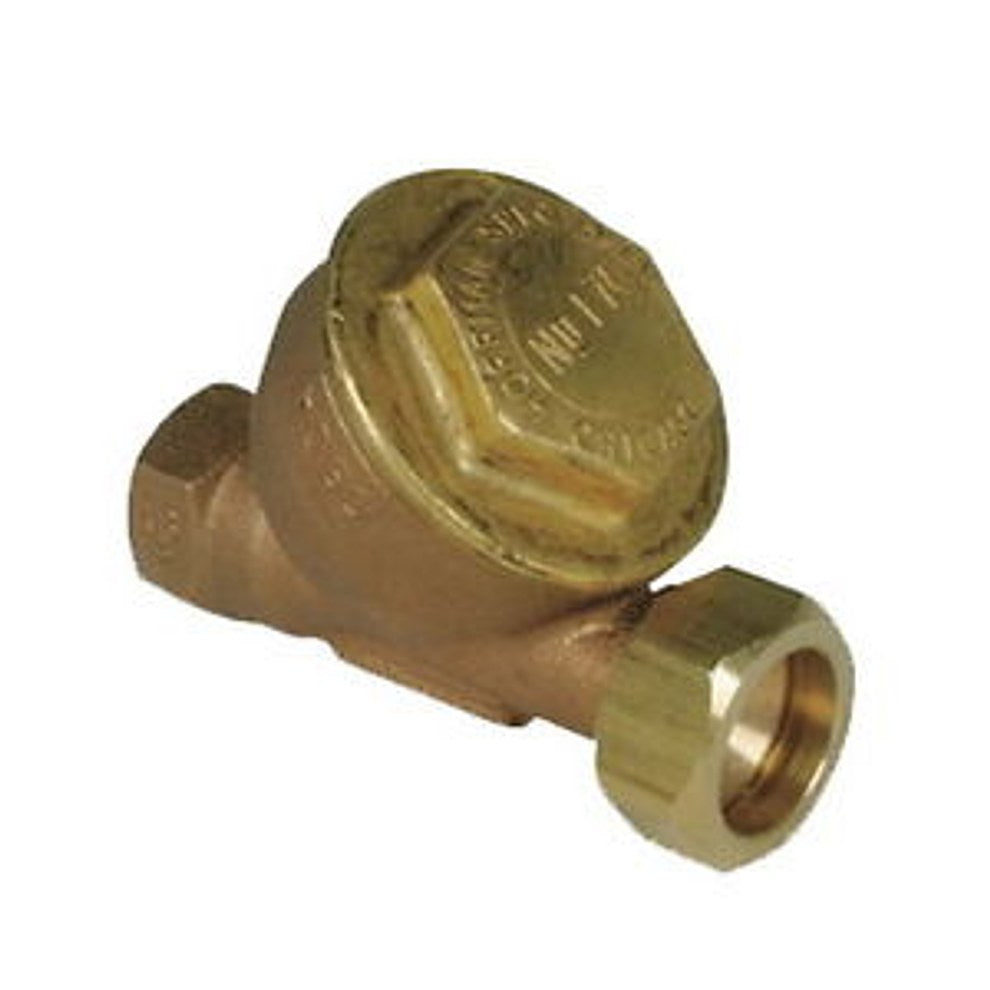

Hoffman 17C-1/2-V Steam Trap

Hoffman 17C-1/2-V Steam Trap is a vertical, thermostatic, balanced‑pressure device built with a brass body for dependable condensate removal in institutional, commercial, and residential heating systems. This 1/2 inch nominal size trap features threaded x threaded end connections for straightforward installation in a variety of steam lines, and its stainless steel thermostatic element provides fast, reliable response.

Its temperature rating of 267°F and pressure rating of 25 PSIG (with a 25 PSI differential) ensure robust performance under typical steam service. With a condensate capacity of 162 lb/hour, it effectively handles moderate to larger loads while preserving steam system efficiency. The unit includes a brass tail piece, coupling nut, and cover, and is designed for easy maintenance and long service life. This steam trap handles steam as the media and is well suited for institutional, commercial, and residential heating systems, meeting Mil-Spec A-A-60001 Type V, Style A, Class 1-4 requirements.

• Nominal Size: 1/2 in
• End Connections: Threaded x Threaded
• Material: Brass (with stainless steel thermostatic element)
• Temperature Rating: 267°F
• Pressure Rating: 25 PSIG
• Differential Pressure Rating: 25 PSI
• Condensate Capacity: 162 lb/hour
• Media Handled: Steam
• Inclusions: Brass tail piece, coupling nut, cover
• Application: Institutional, Commercial/Residential Heating System
• Standards: Mil-Spec A-A-60001 Type V, Style A, Class 1-4
