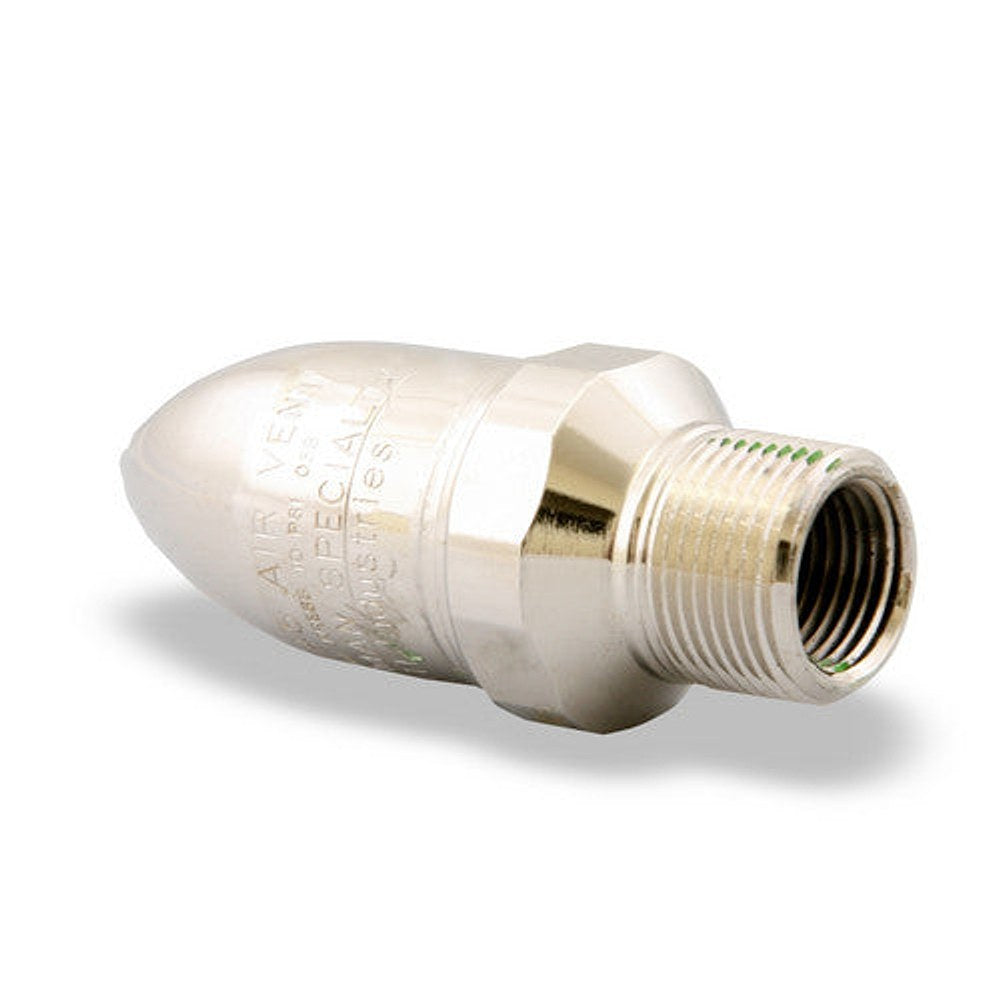

Hoffman 45 Convector Steam Vent

Hoffman 45 Convector Steam Vent is a reliable air-venting solution for small steam systems. Designed for compact installations, it features a 1/2 Inch x 3/4 Inch inlet and an inlet connection Female Threaded x Male Threaded Straight Shank for versatile mounting, and a non-adjustable port for consistent performance. Its rugged construction supports safe operation at a 6 PSIG operating pressure, with a 10 PSIG maximum rating. The vent handles ambient air effectively and includes a telescopic siphon tube with angle cut to assure drainage, preventing water lock in small steam lines.

Ideal for small steam system applications, the Hoffman 45 is a durable choice for steam vents in heating and process setups. Pairing reliability with straightforward installation, this vent reduces backpressure and improves overall system efficiency, particularly in compact HVAC and industrial steam circuits.

• Inlet Size: 1/2 Inch x 3/4 Inch
• Inlet Connection: Female Threaded x Male Threaded Straight Shank
• Port Type: Non-Adjustable
• Pressure Rating: 6 PSIG (Operating), 10 PSIG (Maximum)
• Media Handled: Air
• Inclusions/Features: Telescopic Siphon Tube with Angle Cut Assures Drainage
• Application: Small Steam System
