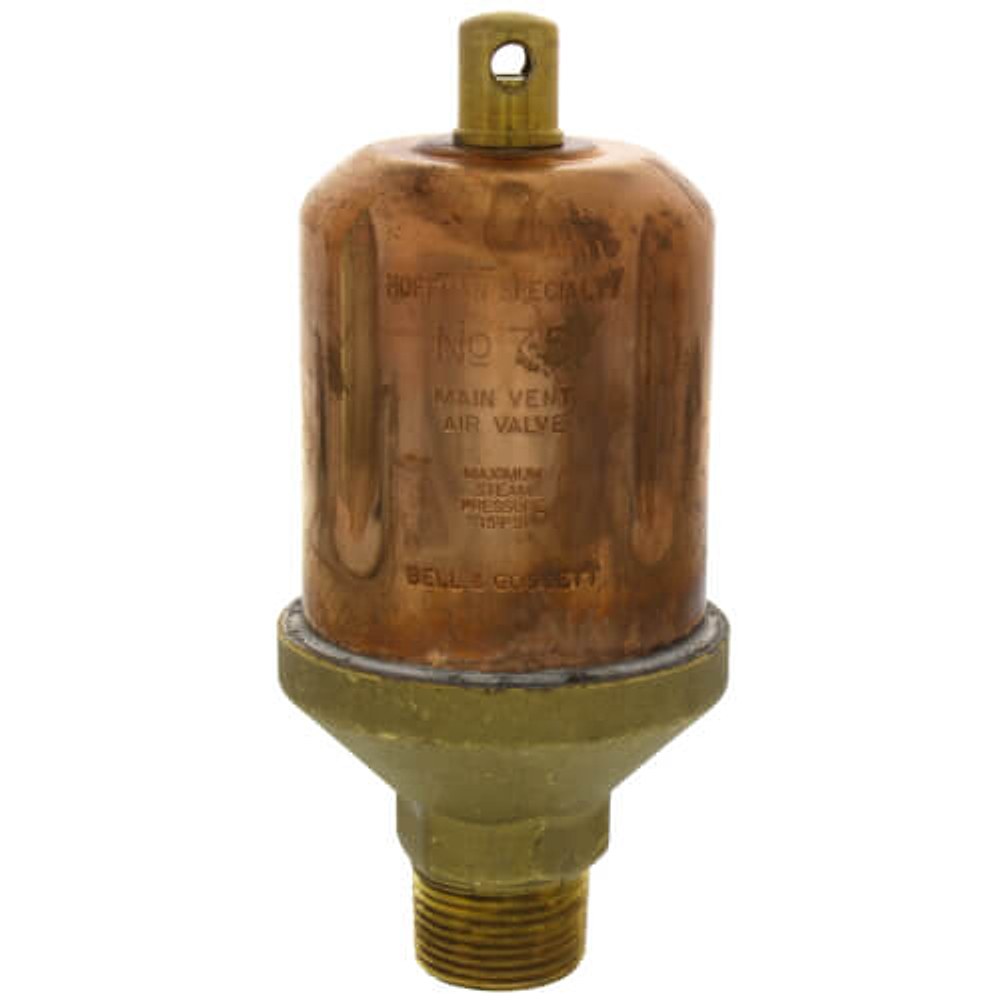

Hoffman 75 Main Steam Vent

The Hoffman 75 Main Steam Vent is a dependable Main Steam Vent solution for medium and large systems. This float-type, non-vacuum, thermostatic vent uses a straight shank design to efficiently release air and steam while preventing backflow.

Built for reliability, it adapts to vertical or horizontal installations and provides steady venting under typical operating conditions. It features a 1/2 x 3/4 inch inlet with female-threaded x male-threaded connections and a single non-adjustable vent port, all designed to withstand demanding industrial environments.

• Vent type: Float-type, thermostatic, non-vacuum with straight shank
• Inlet: 1/2 in x 3/4 in; female-threaded x male-threaded connections
• Port: Single non-adjustable vent
• Pressure rating: 3 PSIG operating, 15 PSIG maximum
• Media handled: Air and steam
• Applications: Suitable for medium and large steam systems

With robust construction and precise control, the Hoffman 75 Main Steam Vent helps optimize system efficiency, minimize condensate buildup, and maintain safe operating pressure across steam networks.
