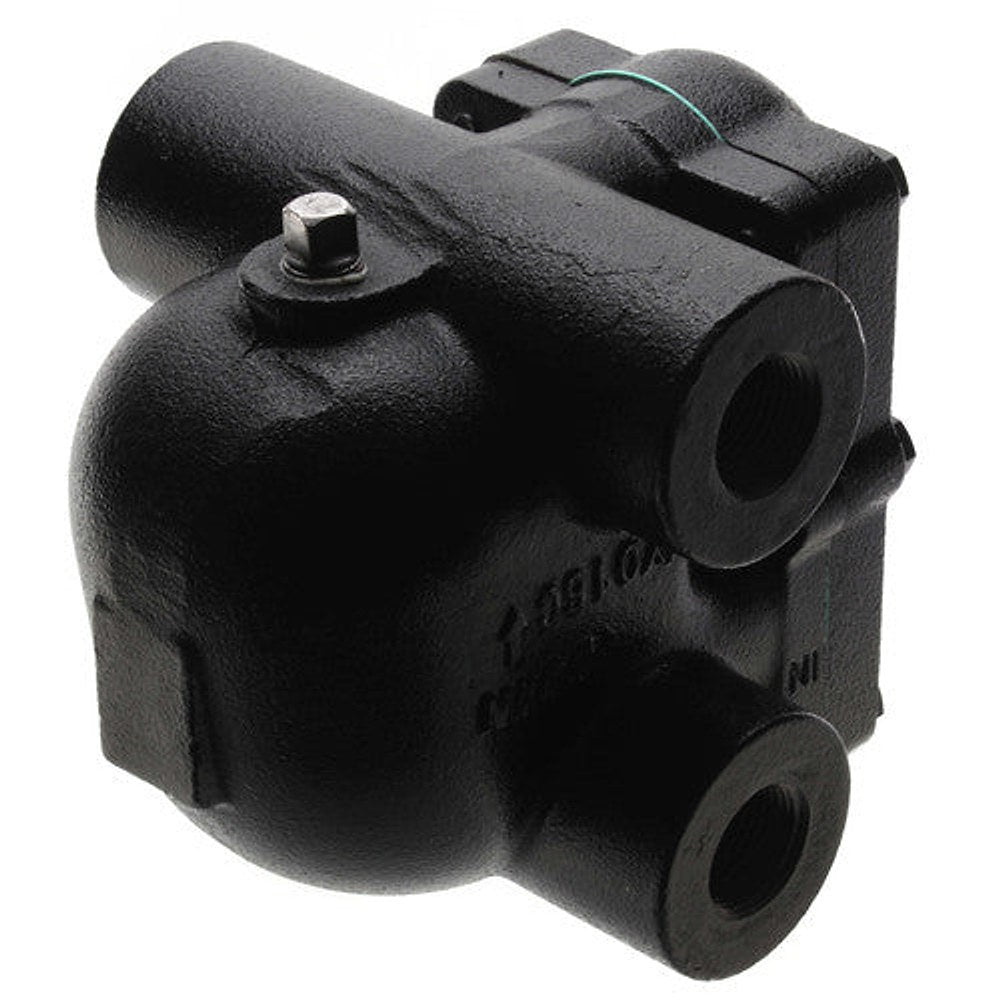

Hoffman FT015H-1" Steam Trap

Hoffman FT015H-1 Steam Trap is a rugged thermostatic, float-type trap designed for dependable condensate removal in institutional and commercial/industrial heating systems. This 1 inch nominal steam trap features threaded x threaded end connections and a cast iron body built for tough service up to 406°F and 250 psi with a 15 psi differential.

Equipped with a stainless steel valve pin and seat, plus a float/lever assembly, cage, and thermostatic air vent, the unit delivers fast response and reliable steam efficiency. The Grade 5 cover bolt enhances durability in demanding environments, while the four-port configuration (2-in/2-out) supports versatile piping layouts.

• Type: Thermostatic, Float
• Nominal size: 1 inch
• End connections: Threaded x Threaded
• Material: Cast iron
• Temperature rating: 406°F
• Pressure rating: 250 psi
• Differential: 15 psi
• Ports: 4 (2-in/2-out)
• Inclusions: Stainless steel valve pin and seat, float/lever/cage, thermostatic air vent
• Application: Institutional, commercial/industrial heating system
