Honeywell Commercial MP516A1087 Pneumatic Unit Ventilator Damper Actuator

Pneumatic Unit Ventilator Damper Actuator for Honeywell MP516A1087 delivers precise, reliable damper control in commercial HVAC systems. This spring-return actuator is designed for durability and easy integration in demanding environments.

Housed in a robust die-cast zinc body, it measures 6-7/8 inches wide by 5-1/8 inches high with a 1/8 inch threaded end connection. The stroke ranges from 2-1/8 to 2-1/2 inches, and the spring range spans 3 to 12 PSI to fit a variety of damper applications.

Operationally versatile, it withstands temperatures from -29 to 71 C and humidity levels from 5 to 95% RH. The cadmium-plated gray hammer finish adds corrosion resistance, helping long-term performance in HVAC environments. Choose this MP516A1087 for dependable spring-return damper actuation that streamlines system tuning and maintenance.

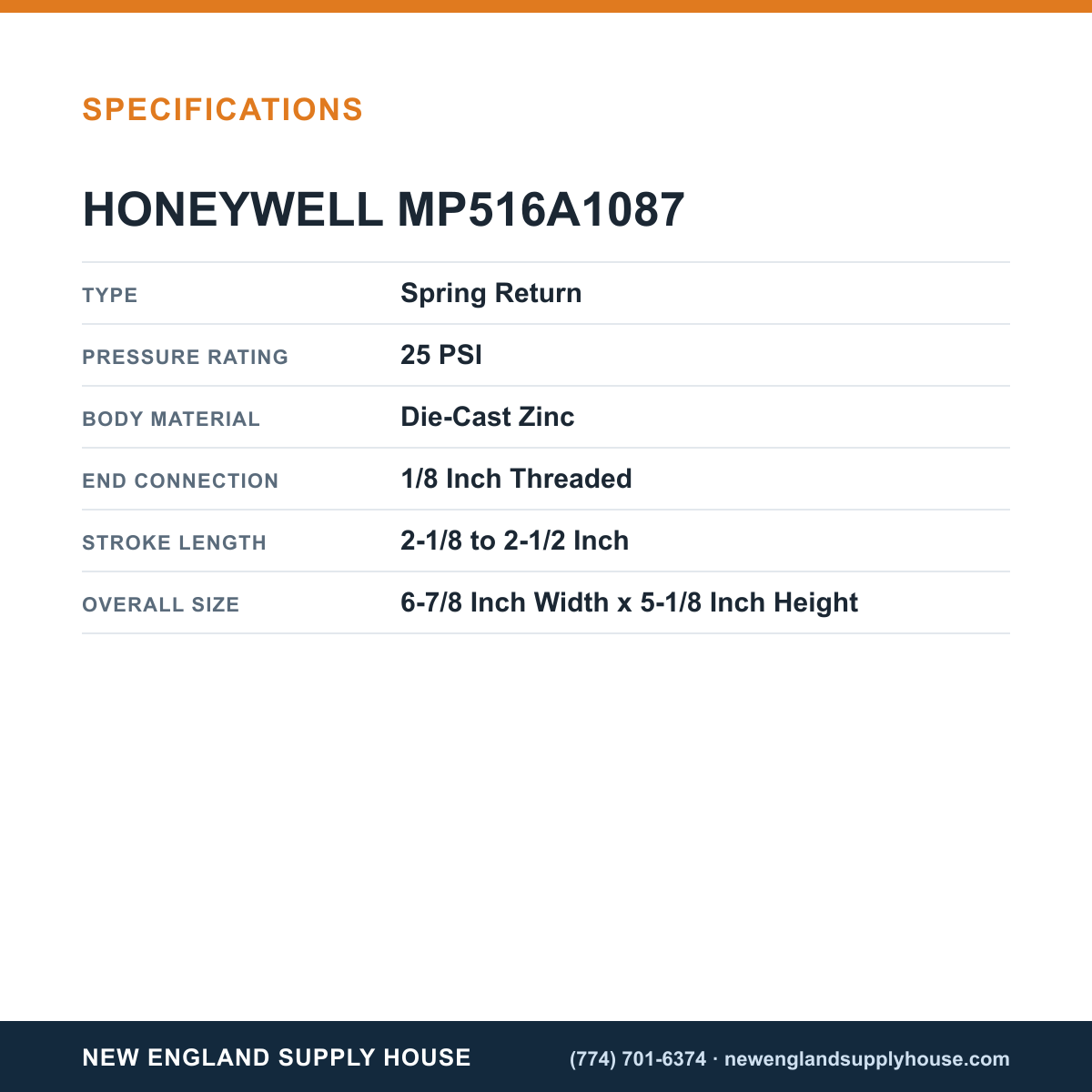

• Type: Spring Return Damper Actuator
• Model: MP516A1087
• End Connection: 1/8" threaded
• Stroke: 2-1/8" to 2-1/2"
• Pressure Rating: 25 PSI
• Spring Range: 3–12 PSI
• Body Material: Die-Cast Zinc
• Temperature Range: -29 to 71 C
• Humidity Range: 5 to 95% RH
• Finish: Cadmium plated with gray hammer
• Dimensions: 6-7/8" W × 5-1/8" H
