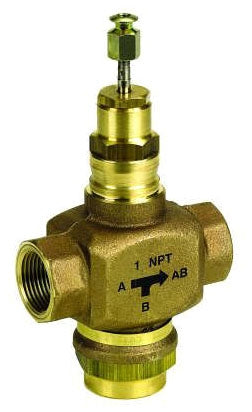

Honeywell Commercial V5013N1048 Globe Valve

Honeywell V5013N1048 Globe Valve delivers precise control for commercial HVAC systems. This 3-Way Mixing globe valve features a 1/2 inch nominal size with female threaded ends, ideal for standard HVAC piping.

Designed for reliability in heating and cooling applications, the valve uses a red brass body and a stainless steel stem. Seats are stainless steel (upper) and brass (lower), paired with an EPDM non-stick seal for smooth operation. Temperature rating is 36 to 248°F (water) with a Class 150 static pressure rating and up to 217 psi at 248°F. Inclusions include self-adjusting/spring-loaded packing and a brass plug/ball, offering long-lasting packing integrity. It is ANSI/ASME compliant and compatible with control options such as the Q5001 Modutrol IV motor and a range of valve actuators for easy integration.

• Nominal size: 1/2 inch; end connections: female threaded
• 3-way globe valve for mixing in HVAC systems
• Red brass body; stainless steel stem; stainless upper seat and brass lower seat
• EPDM non-stick seal; brass plug/ball; self-adjusting/spring-loaded packing
• Flow capacity: 4.7 Cv; bonnet size: 1-3/8 inch; travel: 3/4 inch
• Maximum differential pressure: 20 PSID; temperature range: 36–248°F; compatible with multiple actuators
