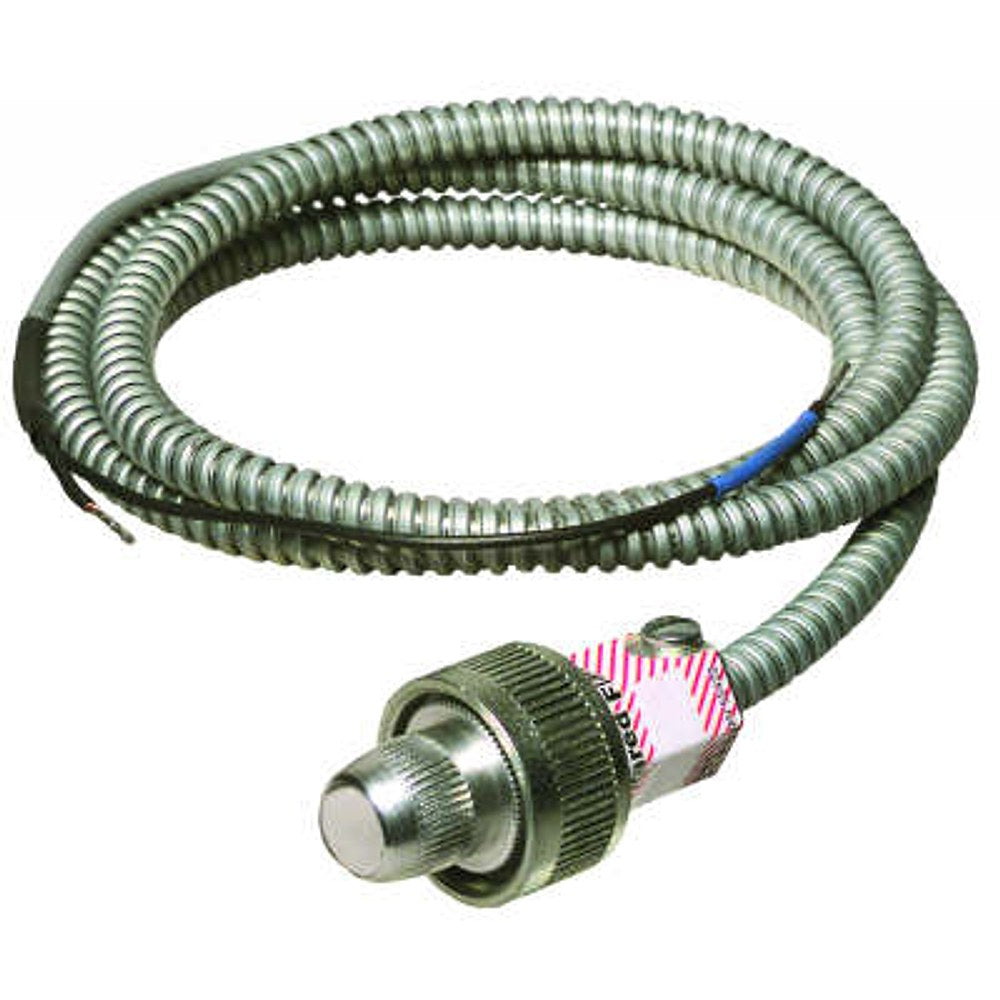

Honeywell Thermal Solutions FSG C7915A1036 Flame Detector

The Flame Detector Honeywell FSG C7915A1036 is a rugged infrared/lead sulfide flame detector designed for dual-fuel systems. Built for combination or dual fuel applications, it delivers fast, accurate flame sensing in demanding environments. It features a 3/4 inch threaded mounting for flexible installation and UL/CSA approvals for safety-critical use. Operating from -20 to 125°F, the compact unit measures 1-1/4 inch diameter by 2-1/4 inch length and uses two 18 AWG wires for straightforward electrical connections. A magnifying lens is included to enhance detection sensitivity, and a 96 inch lead length provides routing flexibility. This detector is designed to work with the R7852 flame amplifier and carries the necessary certifications for reliable installation.

• Type: Infrared/Lead Sulfide flame detector
• Mounting: 3/4 inch threaded
• Electrical: 2 x 18 AWG wires; lead length 96 inches
• Size: 1-1/4" Diameter x 2-1/4" Length
• Applications: Combination or dual-fuel systems
• Approvals: UL, CSA
• Includes: Magnifying lens and 32007255-001 cell
• Compatibility: Used on R7852 Flame Amplifier
