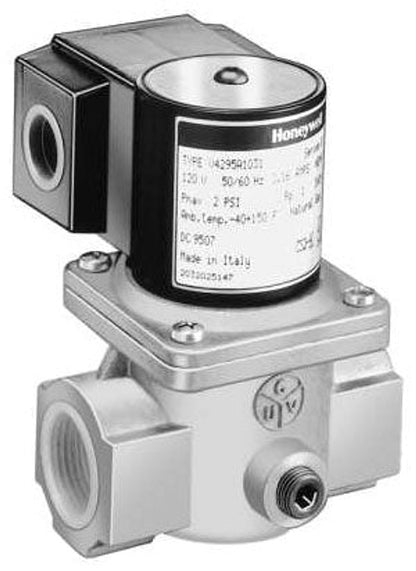

Honeywell Thermal Solutions FSG V4295A1015 Solenoid Gas Valve

Solenoid Gas Valve from Honeywell Thermal Solutions, the FSG V4295A1015, delivers precise, reliable control for gas-fired equipment. This normally closed (NC), straight-through valve features a die-cast aluminum body and 1/2 inch threaded ports for durable, easy installation.

Powered by 120 V AC at 50/60 Hz and drawing 0.16 A, it responds quickly with a 1-second open/close timing. Its operating range of -40 to 140 F and a 2 PSI pressure rating make it suitable for furnaces, ovens, atmospheric burners, rooftop makeup air units, commercial water heaters, power burners, and commercial/industrial boilers. The valve handles air, natural/manufactured propane, and mixed gas, with a 1/4 inch pressure tap included.

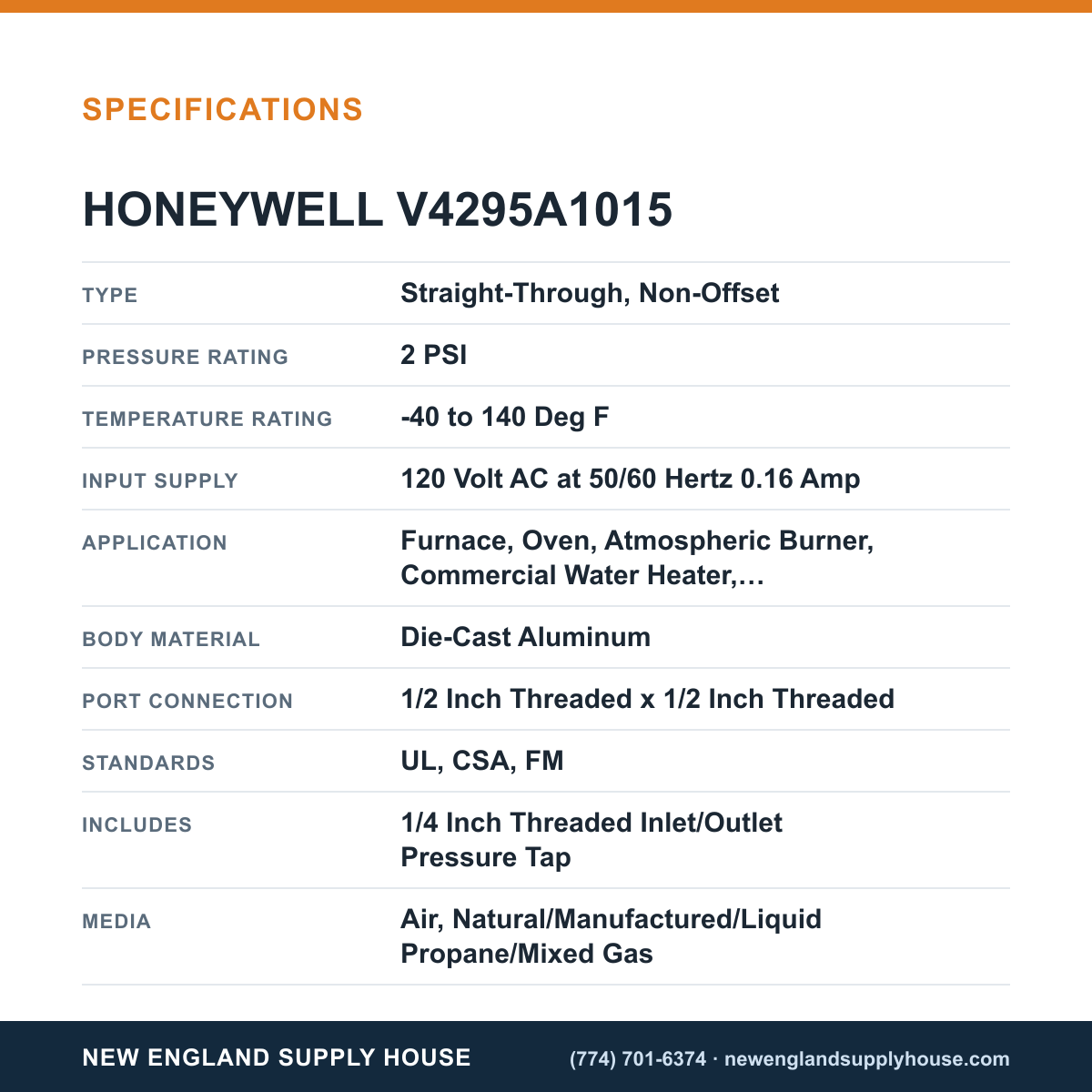

• Port connections: 1/2" threaded input and output
• Valve type: Normally Closed (NC), straight-through
• Body material: Die-cast aluminum
• Electrical: 120 VAC, 50/60 Hz, 0.16 A, screw terminal
• Performance: 250 CFM flow, 1 second open/close
• Standards: UL, CSA, FM listed
• Inclusions: 1/4" pressure tap
• Dimensions: 2-7/8" W x 2-3/16" D x 4-7/16" H
• Mounting: Vertical to 90° from vertical
