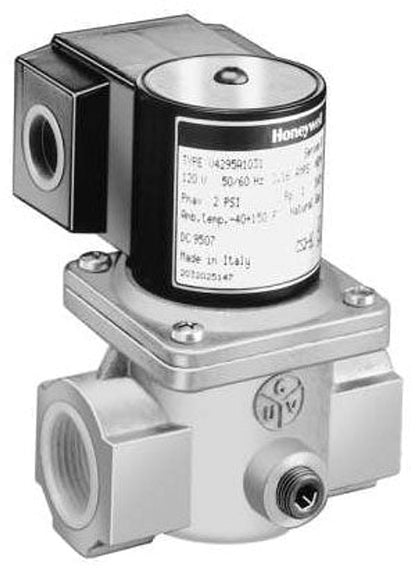

Honeywell Thermal Solutions FSG V4295A1049 Solenoid Gas Valve

Solenoid Gas Valve from Honeywell Thermal Solutions, model FSG V4295A1049, delivers precise control for furnaces and boilers. This straight-through, non-offset valve uses 1-1/4 inch threaded ports and a rugged die-cast aluminum body for reliable operation in tight installations.

Operating at 120 V AC (50/60 Hz) with a 0.34 A draw, it is rated for -40 to 140 F and 2 PSI. It handles media including air and natural or manufactured gases, propane, or propane/mixed gas blends, making it suitable for a range of commercial and industrial applications. The valve opens and closes in about 1 second, ensuring fast flame regulation in demanding environments.

Key features:

• 1-1/4 in threaded inlet/outlet ports for easy plumbing
• Die-cast aluminum body for durability
• 120 V AC control with 0.34 A draw
• Temperature range: -40 to 140 F; Pressure rating: 2 PSI
• Valve timing: 1 second to open/close; Flow: 1450 CFH
• Includes 1/4 in pressure tap; UL/CSA/FM listed
• Mounting vertical to 90 degrees; compact footprint: 5-15/16 W x 4-3/8 D x 8 H
• Applications: furnace, oven, atmospheric burner, commercial water heater, rooftop makeup air unit, power burner, boiler
