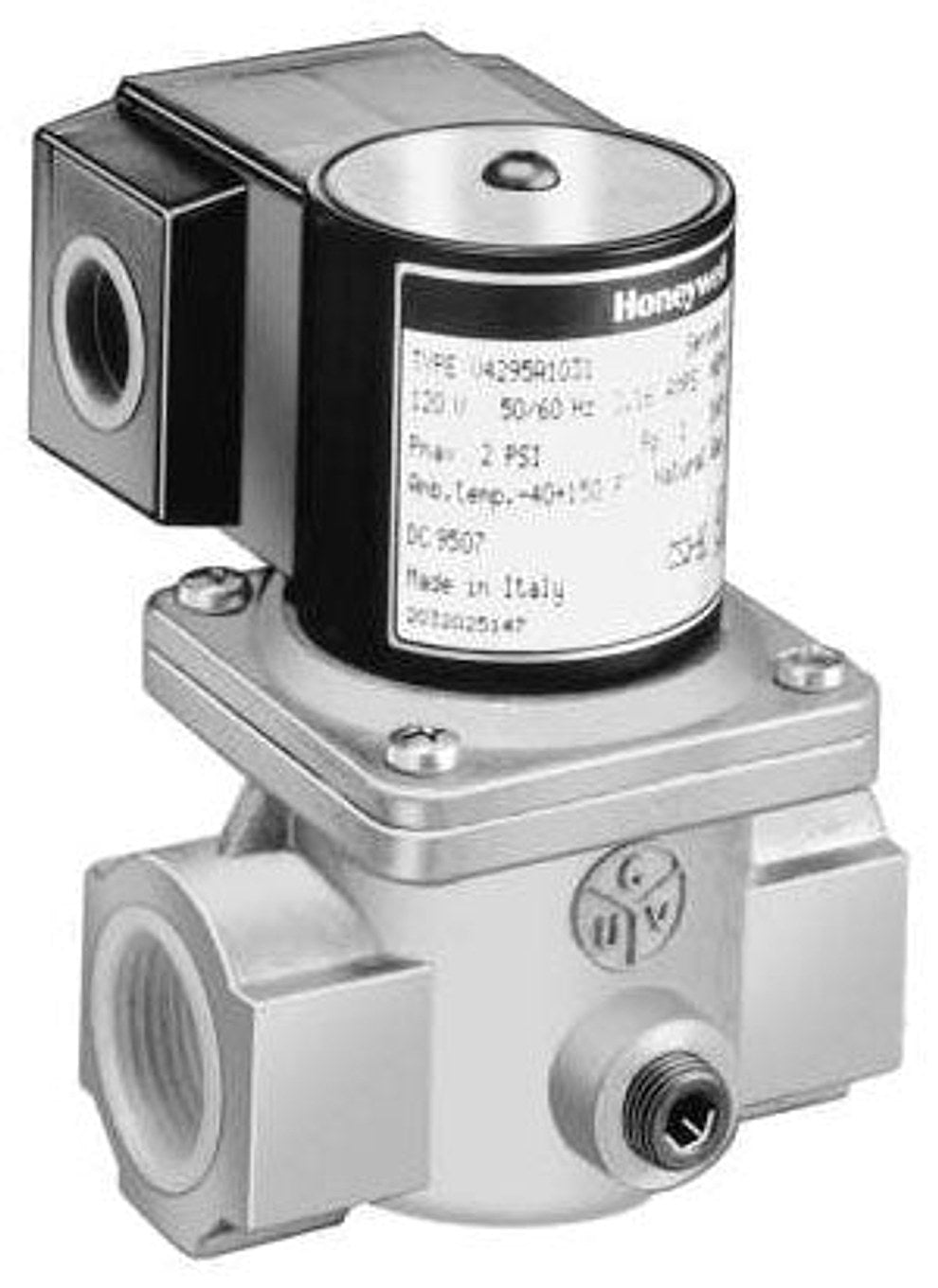

Honeywell Thermal Solutions FSG V4295A1056 Solenoid Gas Valve

The Honeywell Thermal Solutions FSG V4295A1056 Solenoid Gas Valve delivers precise actuation for gas-fired equipment. This straight-through, non-offset valve features 1-1/2 inch threaded port connections and a normally closed (NC) position for safe shutdown in fault conditions. Crafted with a durable die-cast aluminum body, it is designed for 120 V AC control at 50/60 Hz, operates across a wide -40 to 140 F range, and withstands up to 2 PSI inlet pressure for dependable performance in commercial heating systems.

Engineered for versatile media handling, this valve manages air, natural/manufactured propane, and mixed gas. It includes a 1/4 inch threaded inlet/outlet pressure tap for diagnostic checks and integrates with standard control circuitry via a screw-terminal electrical connection. UL, CSA, and FM approvals further ensure safety and compliance across industrial applications.

• Type: Straight-Through, Non-Offset
• Port Connection: 1-1/2" Threaded
• Valve Position: Normally Closed (NC)
• Body: Die-Cast Aluminum
• Electrical: 120V AC, 50/60 Hz, 0.3 A
• Temperature Range: -40 to 140 F
• Pressure Rating: 2 PSI
• Mounting: Vertical to 90 degrees
• Media: Air, Natural/Manufactured Propane, Mixed Gas
• Inlet/Outlet Tap: 1/4" Threaded Pressure Tap
• Applications: Furnace, Oven, Atmospheric Burner, Boiler, Rooftop Make-Up Unit
• Standards: UL, CSA, FM
• Dimensions: 5-15/16" W x 4-3/8" D x 8-3/8" H
• Valve Timing: 1 Second to Open/Close
• Flow Capacity: 2190 CFH
• Electrical Connection: Screw Terminal
