Honeywell Thermal Solutions FSG V4295A1072 Solenoid Gas Valve

The Honeywell Thermal Solutions FSG V4295A1072 Solenoid Gas Valve is a high-precision control valve designed for commercial and industrial burners. This solenoid gas valve features a straight-through, non-offset design with 2-1/2 inch threaded ports and a robust die-cast aluminum body for durable operation in demanding environments.

Powered by 120V AC at 50/60 Hz (0.575 A), it operates across -40 to 140°F and handles pressures up to 2 PSI. The valve opens and closes in about 1 second, providing fast, reliable actuation for systems such as furnaces, ovens, atmospheric burners, commercial water heaters, rooftop makeup air units, power burners, and large boilers. The device mounts vertically up to 90 degrees from vertical and features a 1/4 inch threaded inlet/outlet pressure tap for monitoring and control integration.

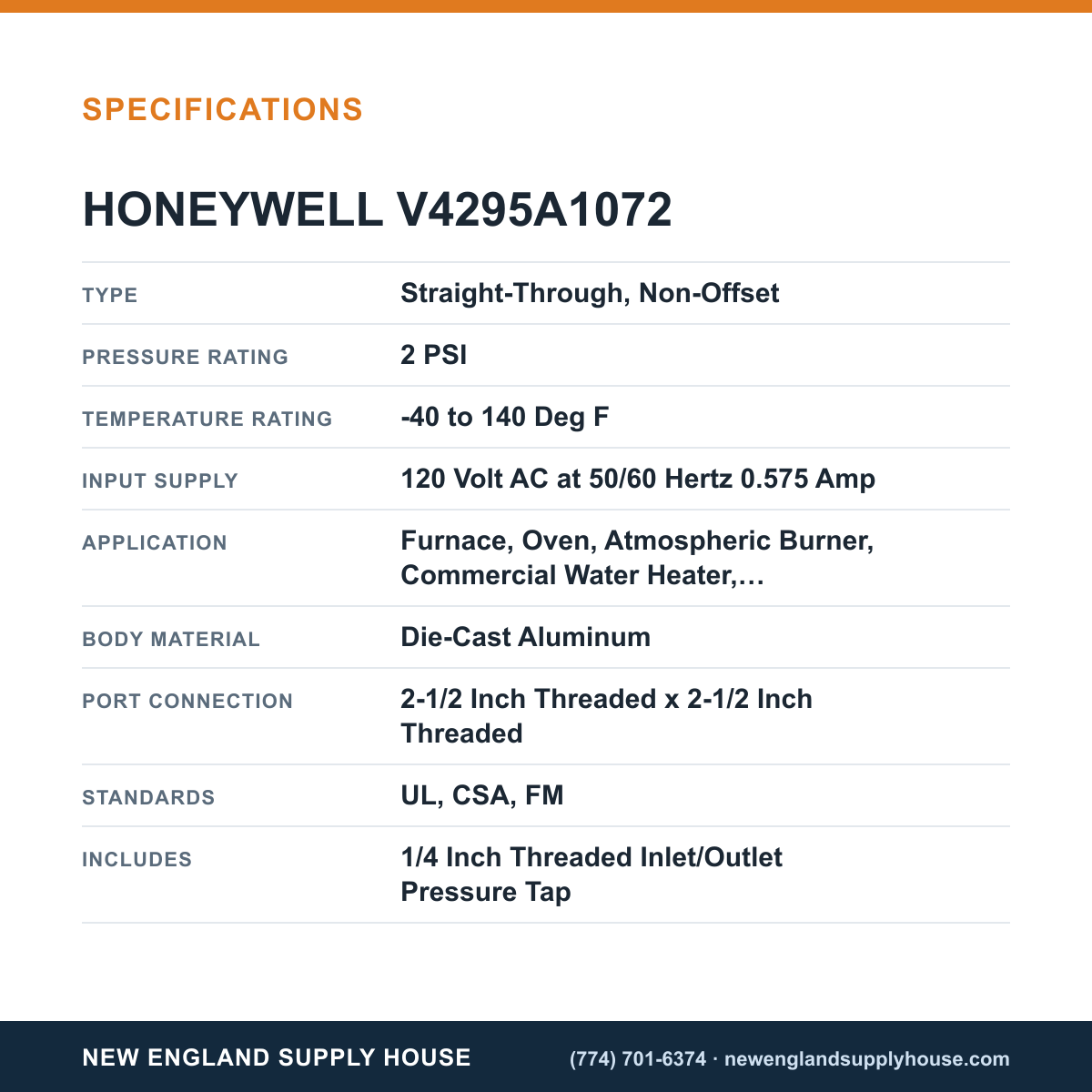

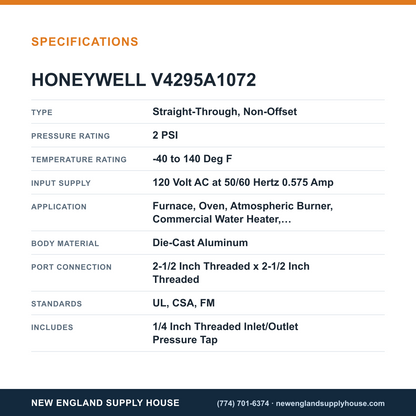

Key specifications and certifications ensure safe, compliant performance across UL, CSA, and FM standards, with a screw-terminal electrical connection for easy wiring. Flow capacity reaches 5070 CFH, making it suitable for medium to high-demand gas control applications.

• Port connections: 2-1/2 inch threaded x 2-1/2 inch threaded
• Valve type: NC (normally closed) with 1 second open/close timing
• Material: Die-cast aluminum body
• Electrical: 120 VAC, 50/60 Hz, 0.575 A; screw-terminal
• Inlet/outlet pressure tap: 1/4 inch threaded
• Operating range: -40 to 140°F; pressure up to 2 PSI
• Applications: furnace, oven, boiler, rooftop makeup air, commercial water heater
