Honeywell Thermal Solutions FSG V8295A1024 Solenoid Gas Valve

Introducing the Honeywell Thermal Solutions FSG V8295A1024 Solenoid Gas Valve, a high-reliability control valve for furnaces, ovens, atmospheric burners, and industrial boilers. This solenoid gas valve delivers precise on/off control with a fast 1-second open/close timing and a rugged die-cast aluminum body designed to withstand demanding commercial environments.

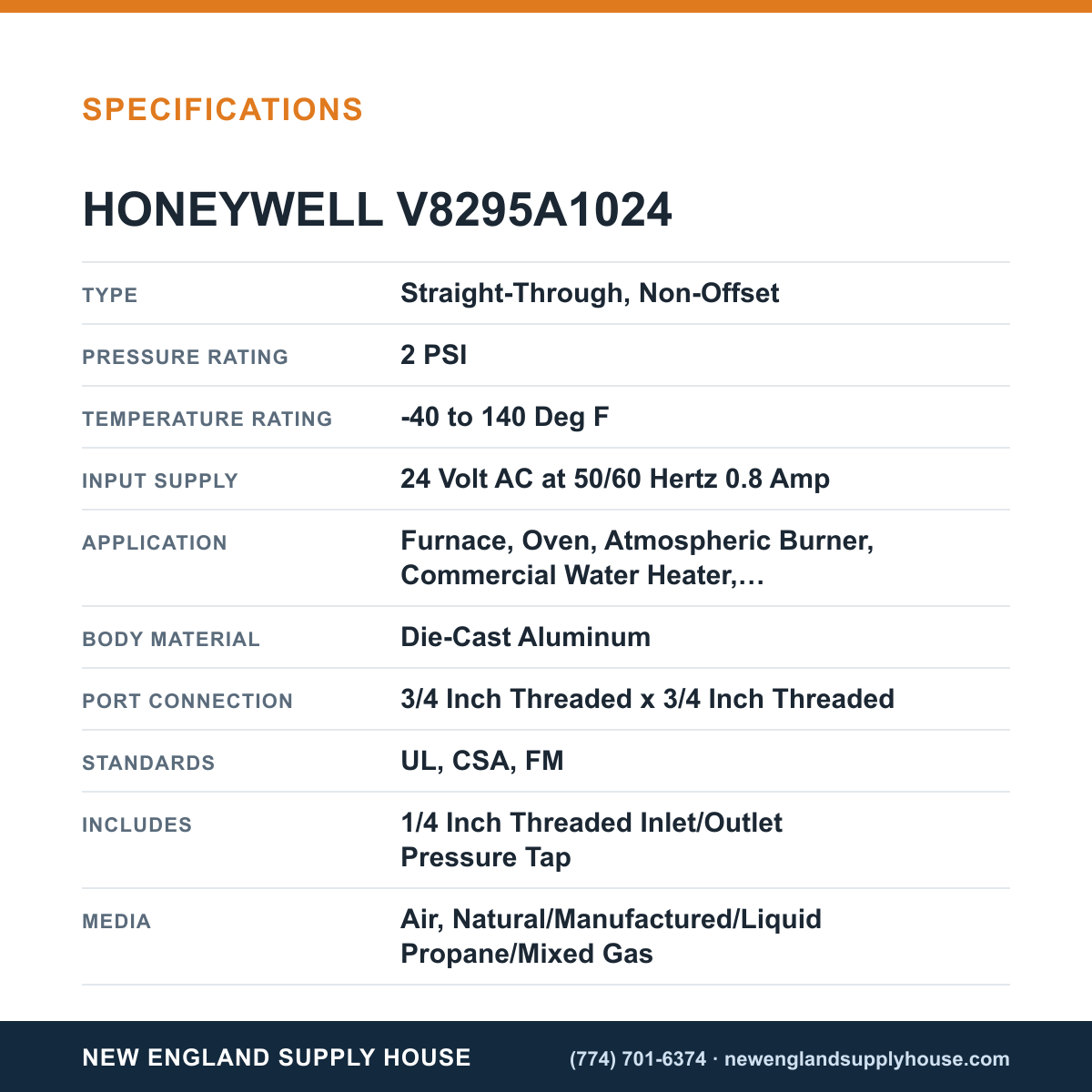

Key specifications include a straight-through, non-offset design with 3/4 inch threaded ports (inlet/outlet). It operates on 24V AC at 50/60 Hz, drawing 0.8 A, and is rated for -40 to 140 F and up to 2 PSI. The valve handles air, natural/manufactured propane, and mixed gas, making it suitable for applications such as furnaces, ovens, atmospheric burners, commercial water heaters, rooftop make-up units, power burners, and large boilers. Vertical mounting up to 90 degrees is supported, and a 1/4 inch pressure tap is included for monitoring.

• Valve Type: Straight-Through, Non-Offset
• Port Connections: 3/4" Threaded x 3/4" Threaded
• Valve Position: Normally Open (NO)
• Electrical: 24V AC, 50/60 Hz, 0.8 A
• Media: Air, Natural/Manufactured Propane, Mixed Gas
• Mounting: Vertical to 90° from vertical
• Flow & Timing: 645 CFH; 1 Second Open/Close
• Body & Rating: Die-Cast Aluminum; -40 to 140°F; 2 PSI
• Standards & Inclusions: UL, CSA, FM; 1/4" Pressure Tap
