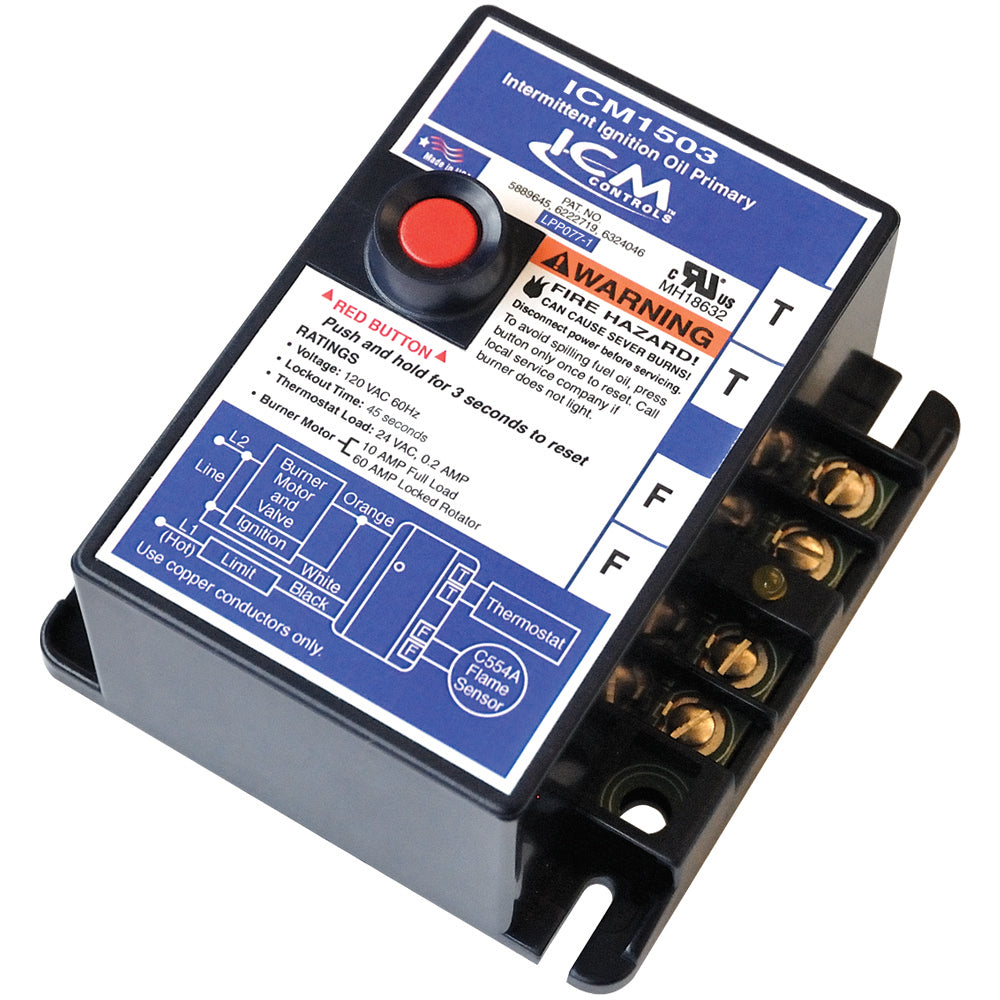

ICM Controls ICM1503 Oil Primary Control

The ICM1503 Oil Primary Control from ICM Controls delivers reliable intermittent ignition for oil burners. This oil burner control uses a solid-state flame sense system for fast, safe startup and consistent operation, making it ideal for residential and light commercial equipment. It supports adjustable prepurge times of 15, 30, or 45 seconds, helping ensure clean combustion before ignition.

Compact and rugged, the unit measures 4.41 inches long, 4.08 inches wide, and 2.35 inches high, and operates reliably from -30 to 130 degrees Fahrenheit. It’s UL approved for both Canada and the United States and is suitable for controlling an oil burner, oil valve, and ignition transformer. Electrical ratings provide versatility: 7.4 A at 120V AC (full load); 3.7 A at 240V AC (full load); 44.4 A at 120V AC (locked rotor); 22.2 A at 240V AC (locked rotor).

• Type: Intermittent Ignition
• Flame sensing: Solid State
• Prepurge: 15/30/45 seconds
• Size: 4.41" L × 4.08" W × 2.35" H
• Operating temp: -30 to 130°F
• Approvals: UL (Canada and US)
• Applications: Oil burner, oil valve, ignition transformer
• Electrical: 120V/240V; full-load and locked-rotor ratings
