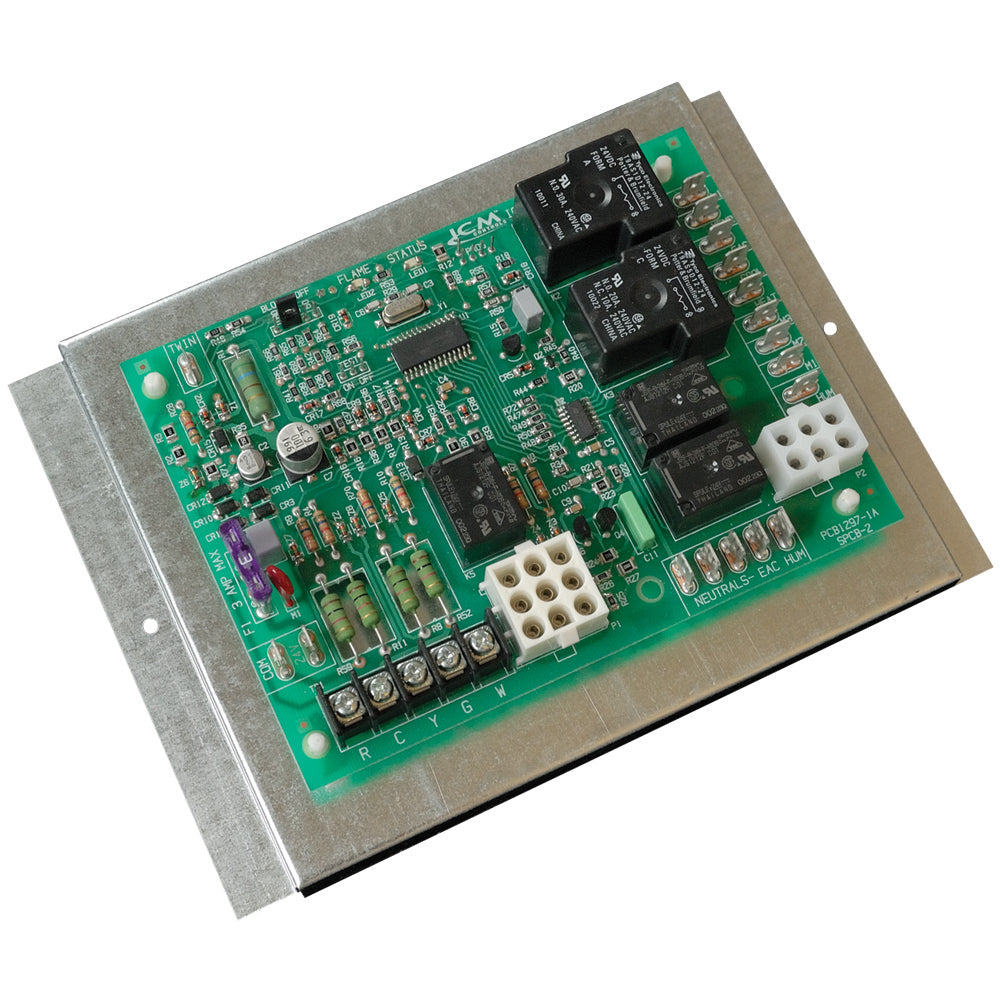

ICM Controls ICM2805A Furnace Control Module

The ICM2805A Furnace Control Module is a microprocessor-based control solution designed for reliable furnace operation. This compact furnace control module handles 24V AC gas valve control and line-powered circuits from 98–132V AC at 60 Hz, delivering dependable ignition and blower management. UL and CSA approvals ensure safe, code-compliant installation in residential systems.

• Compact size: 4.5" L × 6" W × 1.5" H
• Valve and power ratings: Gas valve 1 A at 24 V AC; Line power 98–132 V AC, 60 Hz
• Output capabilities: Igniter 5 A @ 120 V AC; Cool Blower 10 A, 2 HP @ 240 V AC; Heat 5 A @ 250 V AC, 1/2 HP; Inducer Blower 4 A @ 120 V AC; Humidifier Motor 0.5 A @ 24 V AC; Electronic Air Cleaner 1 A @ 120 V AC
• Application: Designed for furnace systems requiring reliable control and safe operation
• Approvals: UL and CSA listed for added peace of mind
