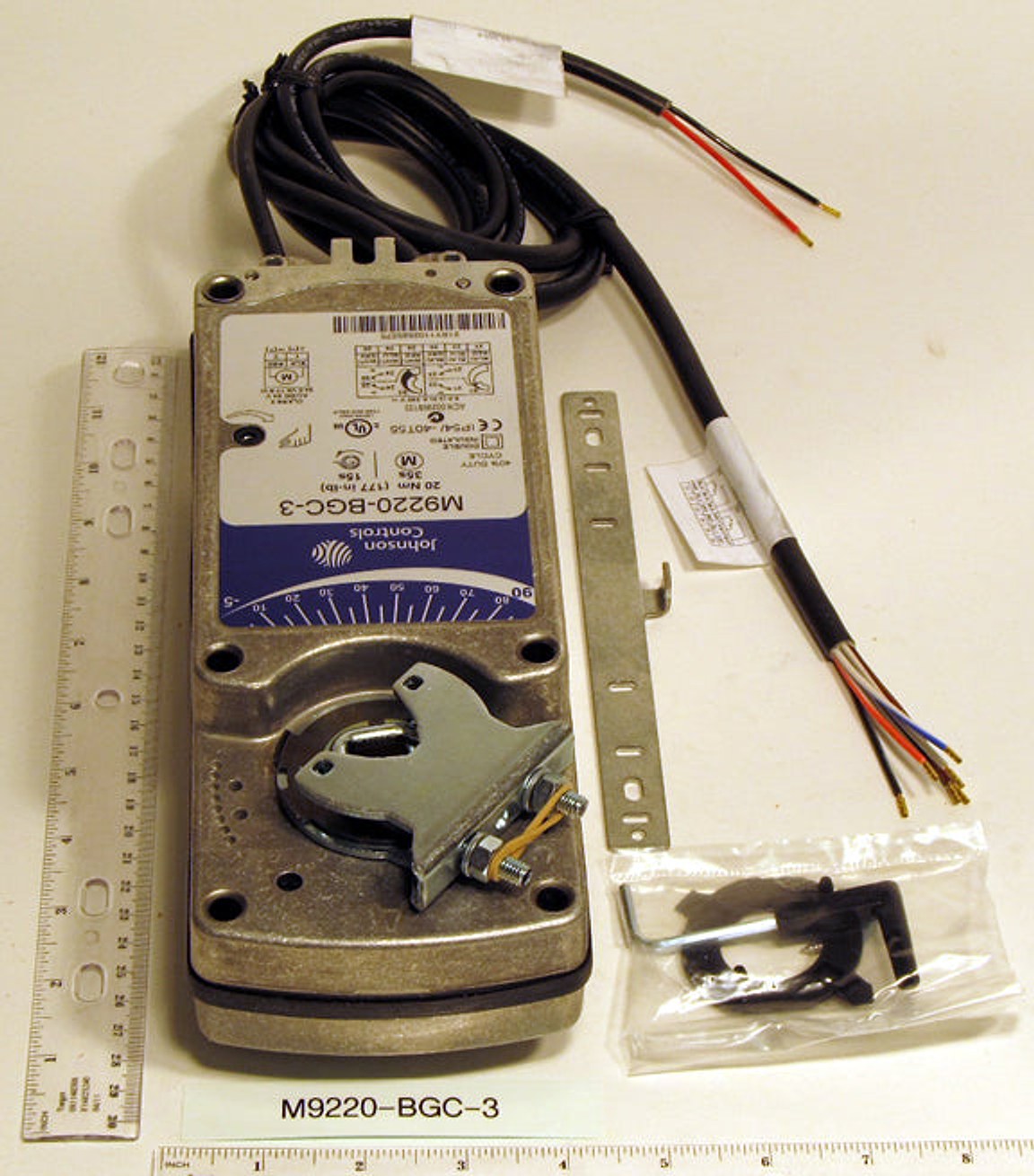

Johnson Controls M9220-BGC-3 Electric Actuator

Johnson Controls M9220-BGC-3 Electric Actuator delivers reliable On/Off control with a spring-return mechanism for HVAC systems. Designed for tough environments, this 24V AC/DC actuator combines a compact aluminum body with robust gearing to deliver dependable performance across a wide range of damper and control applications. The actuator rotates 3 to 90 degrees and provides 177 in-lb of torque for quick, precise positioning while maintaining energy efficiency. With a NEMA 2, IP54 enclosure, it resists dust and moisture, suitable for indoor and outdoor installations in commercial HVAC setups. UL and CE approvals confirm compliance with safety and quality standards.

• Type: On/Off with spring return
• Voltage: 24V AC/DC
• Torque: 177 in-lb
• Rotation: 3–90 degrees
• Enclosure: NEMA 2, IP54
• Body: Aluminum
• Shaft: Round 1/2–3/4 in; Square 3/8–1/2 in
• Supply connection: 3/8 in Flexible Metal Conduit
• Dimensions: 4 in W × 3-3/16 in D × 10-5/16 in H
• Application: HVAC system
• Approvals: UL, CE

Ideal for retrofit or new installations, this actuator delivers dependable dual-voltage operation, durable construction, and versatile shaft options to suit a variety of damper and valve applications in modern HVAC environments.
